CSL10

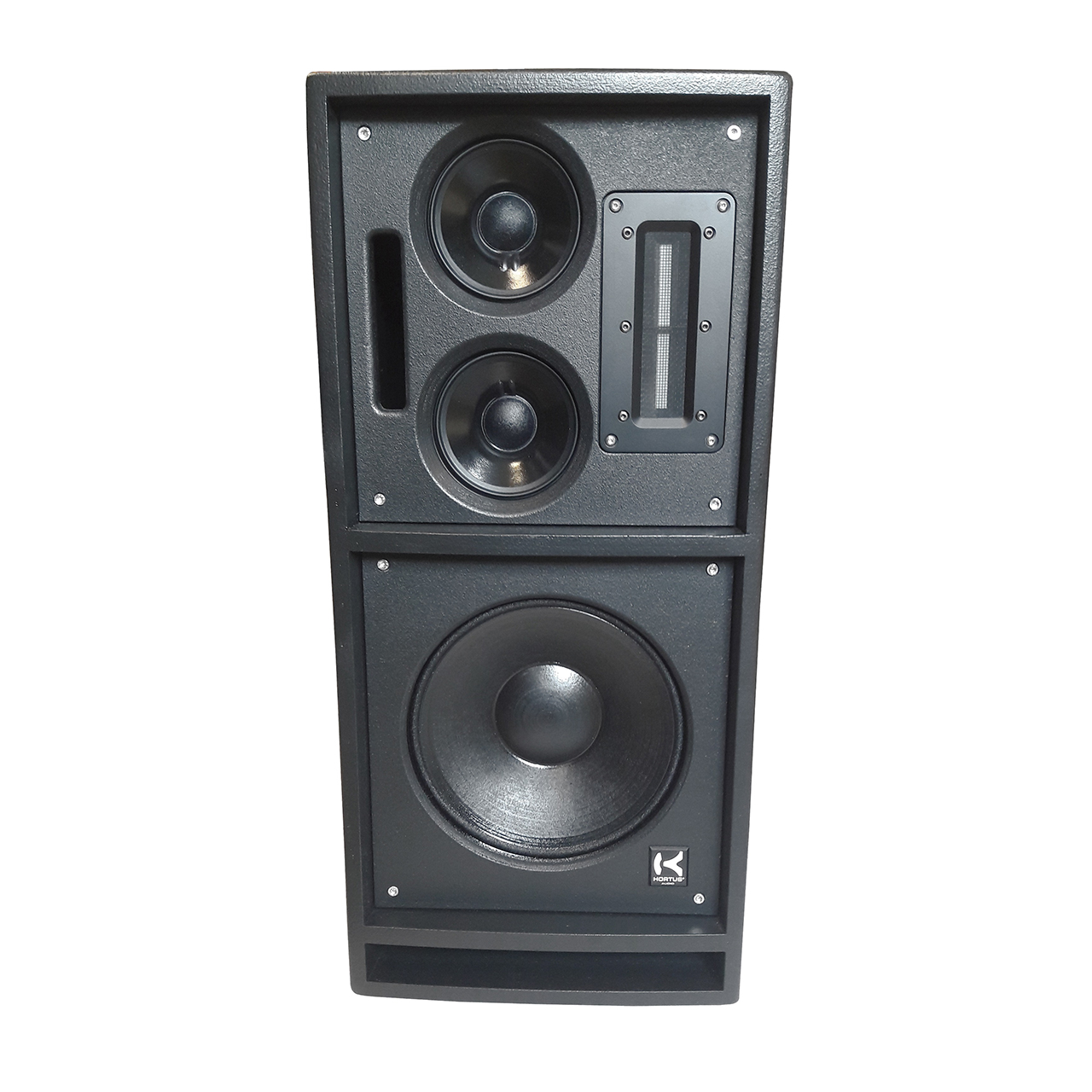

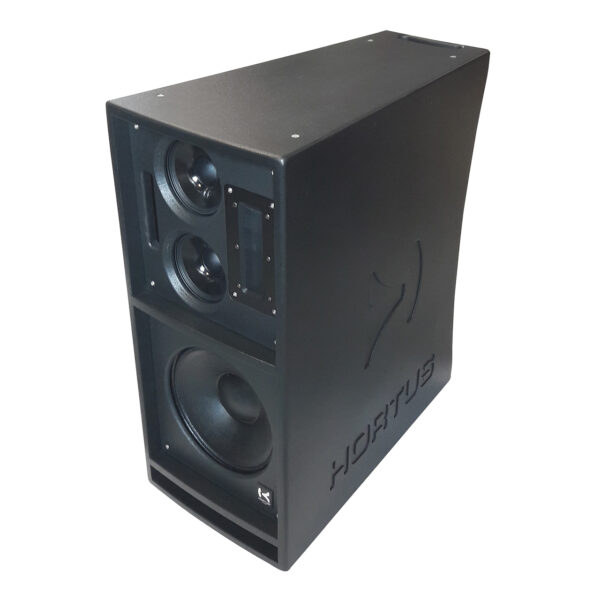

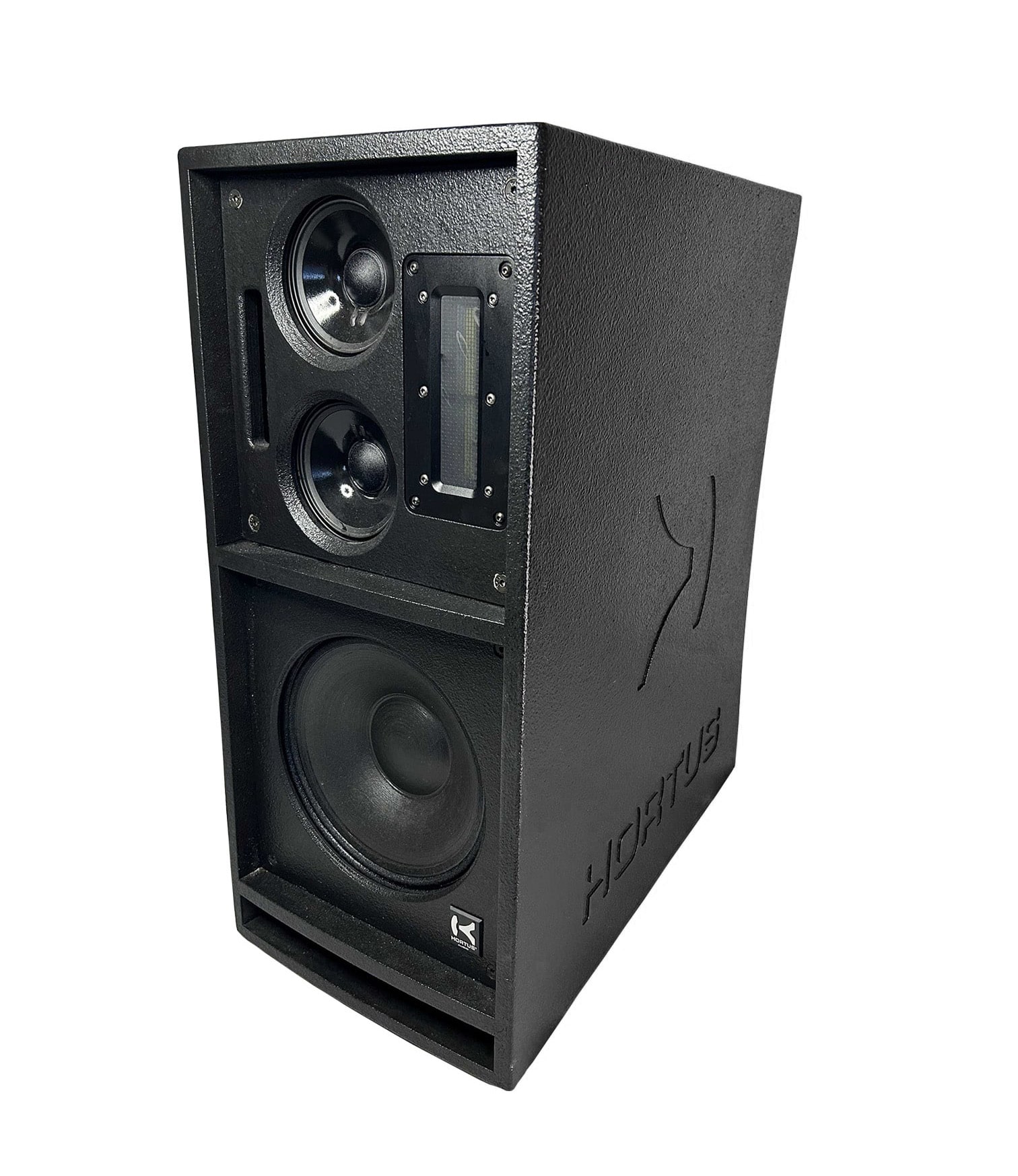

The Chrysalis Series consists of an amplifed and a 2-way passive full range hybrid system. With direct coupling, DSP and pre-established angulation, the Chrysalis is similar to a line array.

Chrysalis was made to apply to clubs, conference rooms, lounges and small and medium-sized performance halls. As a standalone bass reflex system, it includes a 10’ “bass reflex” enclosure with 2 x 5’ speakers and a ribbon tweeter.

Its extended bandwidth ranges from 45 to 20 KHz at +/- 3 dB. The Chrysalis has 500W RMS amplification integrated for the bass + 250W RMS for mid-range and compression.



Key features

The Chrysalis can be installed either horizontally or vertically

The system is controlled and guided by DSP using the DFCS (Dynamic Frequency Control of Speakers) program developed by Hortus Audio

A precise and high-quality sound arises from its ribbon tweeter, bass reflex and multiple speakers



Active
Passive
Clear
Related applications

Specifications

- Bandwidth (-6dB): 50 Hz to 20 Khz
SPL (Measured): 123 dB / SPL (Peak): 126 dB
Directivity: 100° H x 60° V
- Passive filter (MF/HF)
- 35 mm diameter stand socket
- Baltic birch wood
- 2 Layers of black polyurethane painting
- Dim. H659 x D577 x W303 mm
