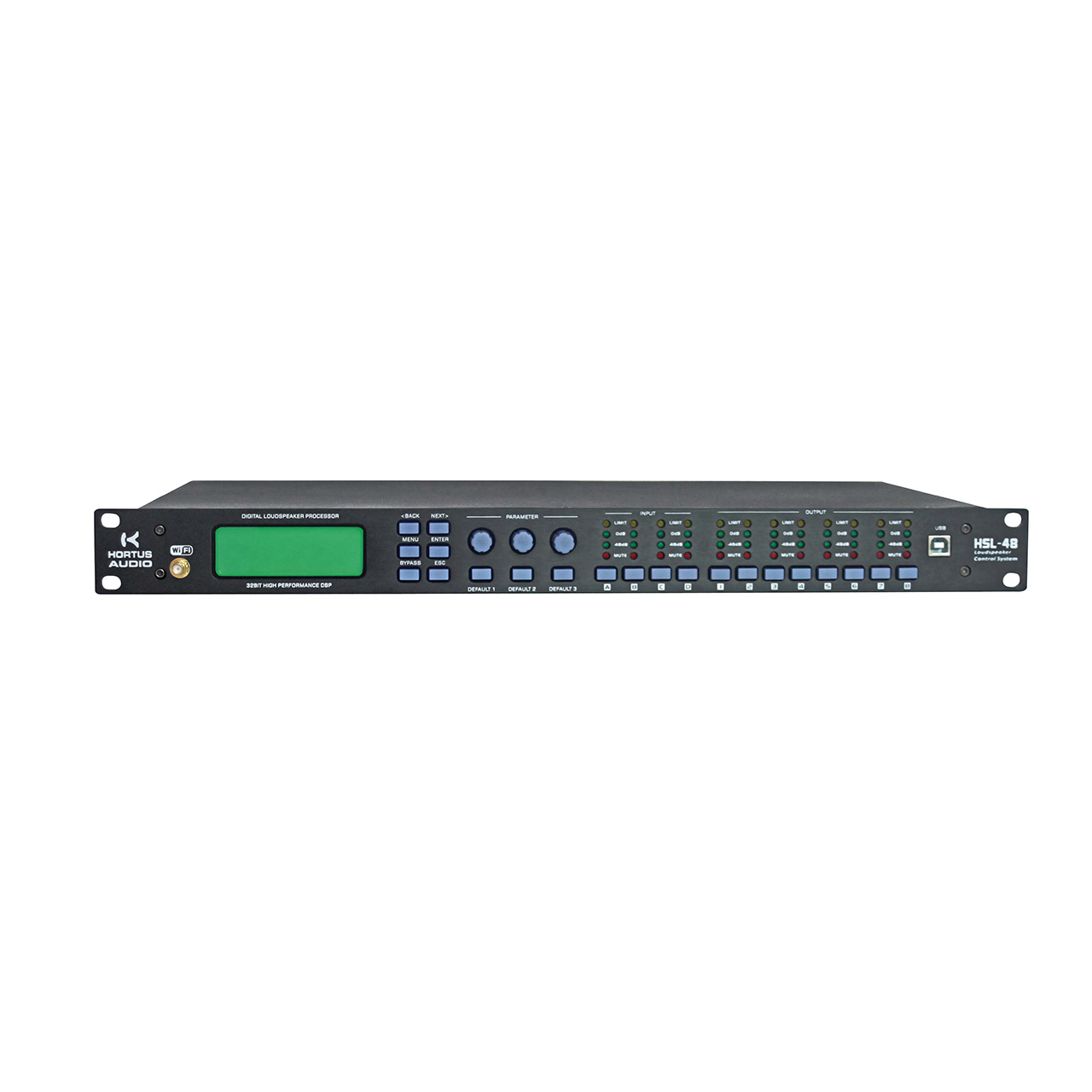

HSL-48

32-bit DSP software for a PC and USB as well as WIFI interface

Compatible with a vast range of speakers

Specifications

- 4 inputs / 8 outputs
- DSP 32 bit
- Converters AN / NA: 96 kHz
- Software for PC
- USB + WIFI interface
- Rack 19" - 1U
- Dim. 483W x 44,5H x 265D mm / 2,99 Kg

Product compatibility

All Hortus Audio speakers, processors and bass cabinets

Downloads

HSL-24HSL-48
INPUTS
Inputs24
Gain-40dB -> + 12dB
PEQ - low/HighShelf78
Graphical EqualizerNO30 Bands
Phase InversionYES
Delay0 -> 20ms0 -> 1000ms
OUTPUTS
Outputs48
Gain-40dB -> +12dB
PEQ - low/HighShelf69
Phase InversionYES
Delay0 -> 20ms0 -> 1000ms
CompressorNOratio: 1:1 -> 1:16
Threshold (step 1dBu)-10dBu -> +20dBu-20dBu -> +22dBu
Attack Time (ms) 1 / 2 / 5 / 10 / 20 / 50 / 90 1 / 2 / 5 / 10 / 20 / 50 / 100
Release time2X / 4X / 8X / 16X / 32X
High PassButterwoth/Bessel/Linkwitz Riley (-12/-18/-24/-48dB)
Low PassButterwoth/Bessel/Linkwitz Riley (-12/-18/-24/-48dB)
