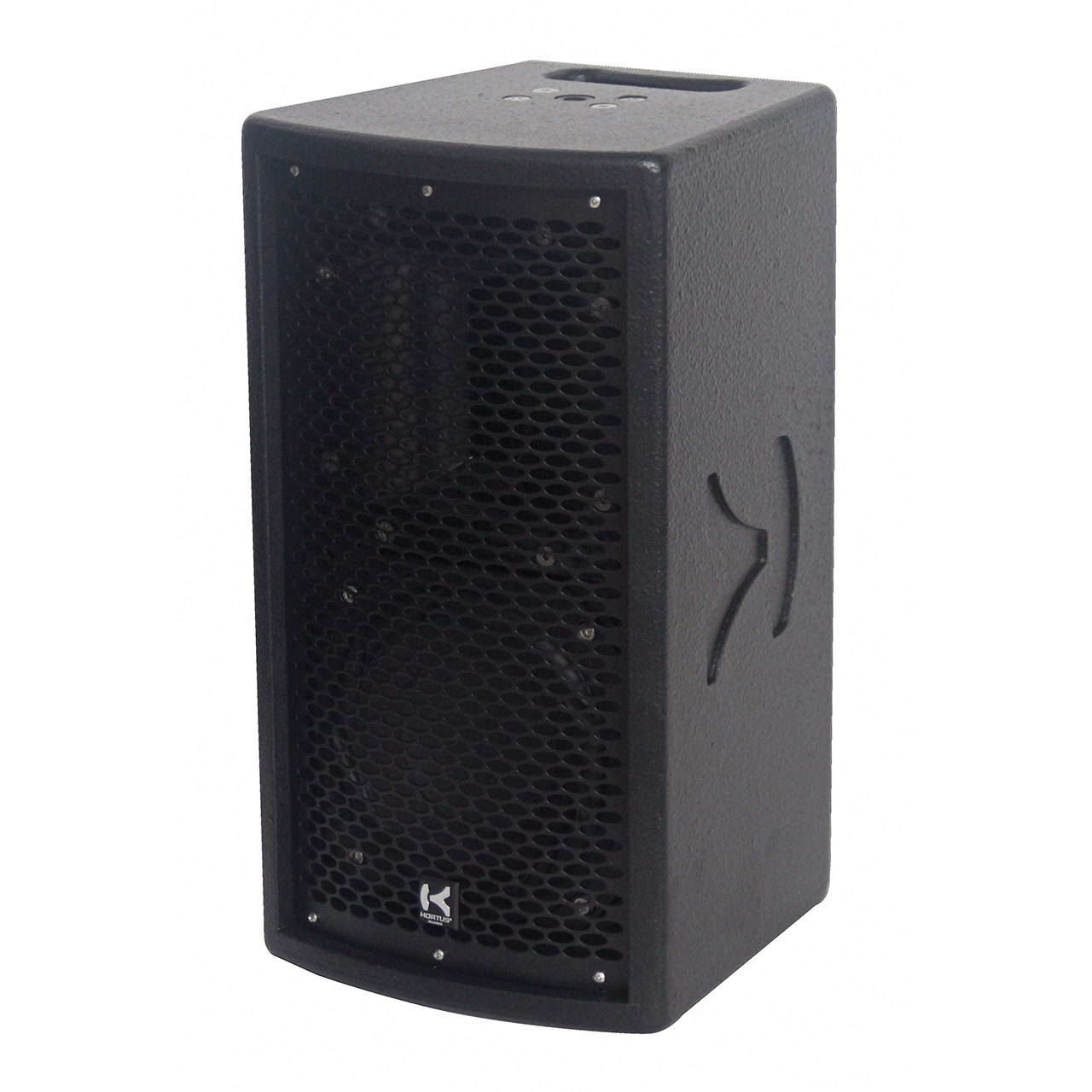

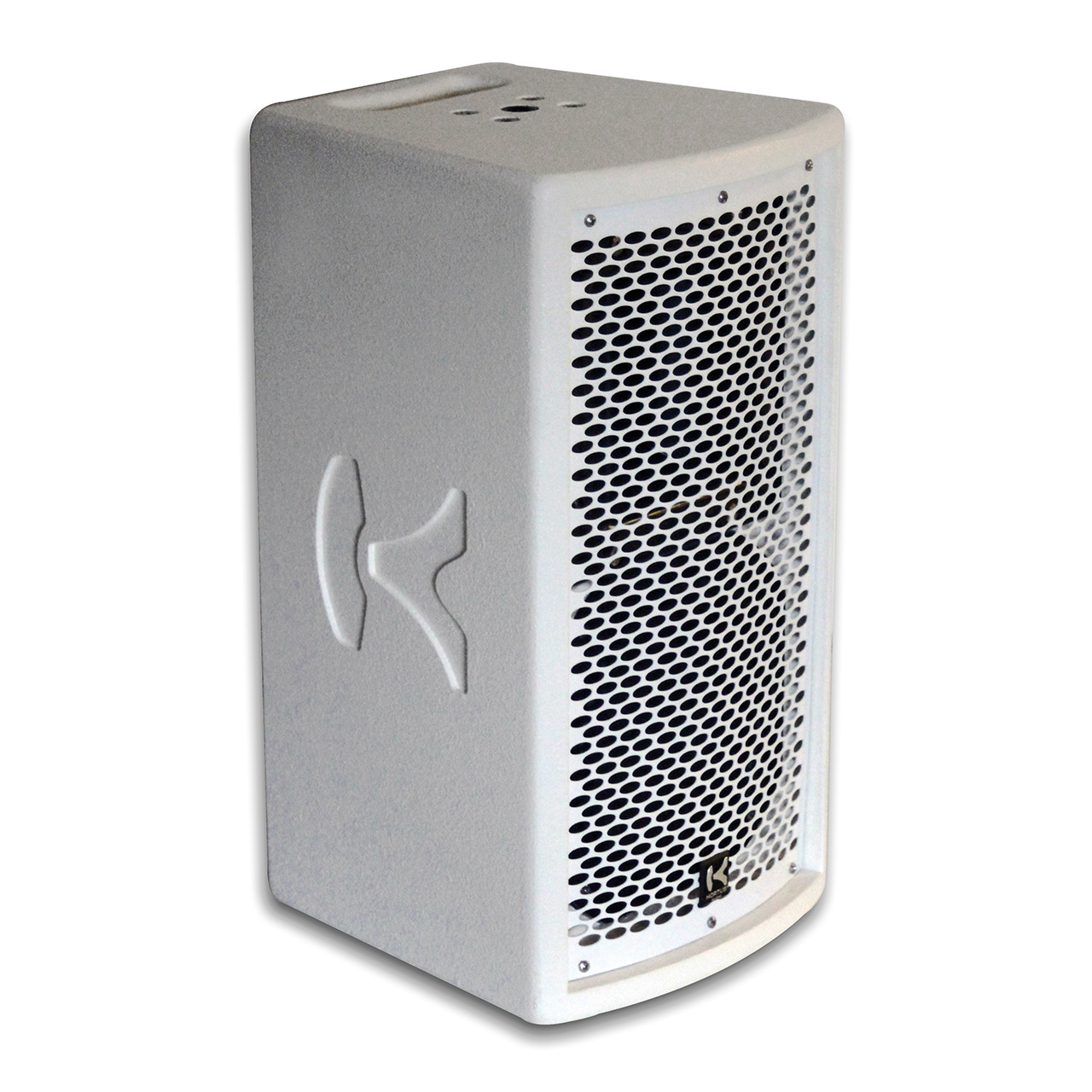

S6.1

2-Way Passive Speaker

The S6.1 delivers a high sound pressure level and power handling. The 2-way passive speaker effectively fits into sound distribution systems at large venues including stadiums.



Best advantages

Directivity (-6dB): .90°H x 90°V
Available in 8 or 16 Ω
Narrow profile makes it very appropriate for delay rings



Related applications

Specifications

AES Power: 200 W / 8 Ω (or 16 Ω upon request)
Bandwidth (-6dB): 100 Hz - 20 kHz
Sensitivity: 92,5 dB / 1W @1m
SPL MAX level: 115 dB
Directivity (-6dB): 90° H x 90° V
LMF: 1 x 6,5’’ vented enclosure
HF: Compression 1’’
- 12 mm baltic birch wood
- Finished polyurethane painting
- Dim. H378 x D216 x W210 mm / Wht: 7 kg

Product compatibility

CT2.1

HSL48

MB1

Downloads


Available options
Phoenix Version: 4 pins Phoenix & 2 x M10
Speakon Version: 2 Neutrik Speakon NL4MP
- Socket ø 35 mm K&M + 1 x M10
Passive Version 8 Ω
S.1-PB08 Phoenix, Black
S6.1-SB08 Speakon, Black
