BZ6

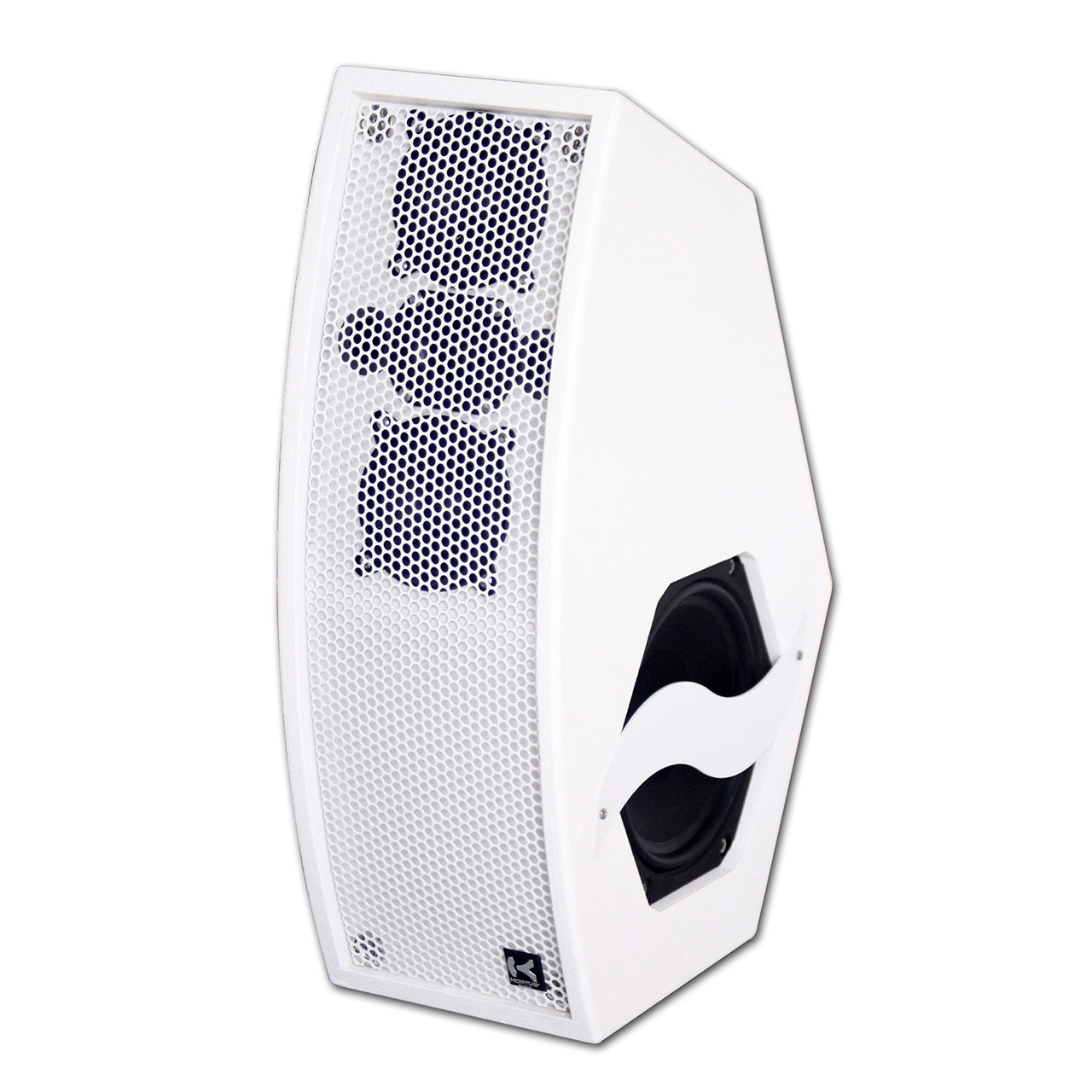

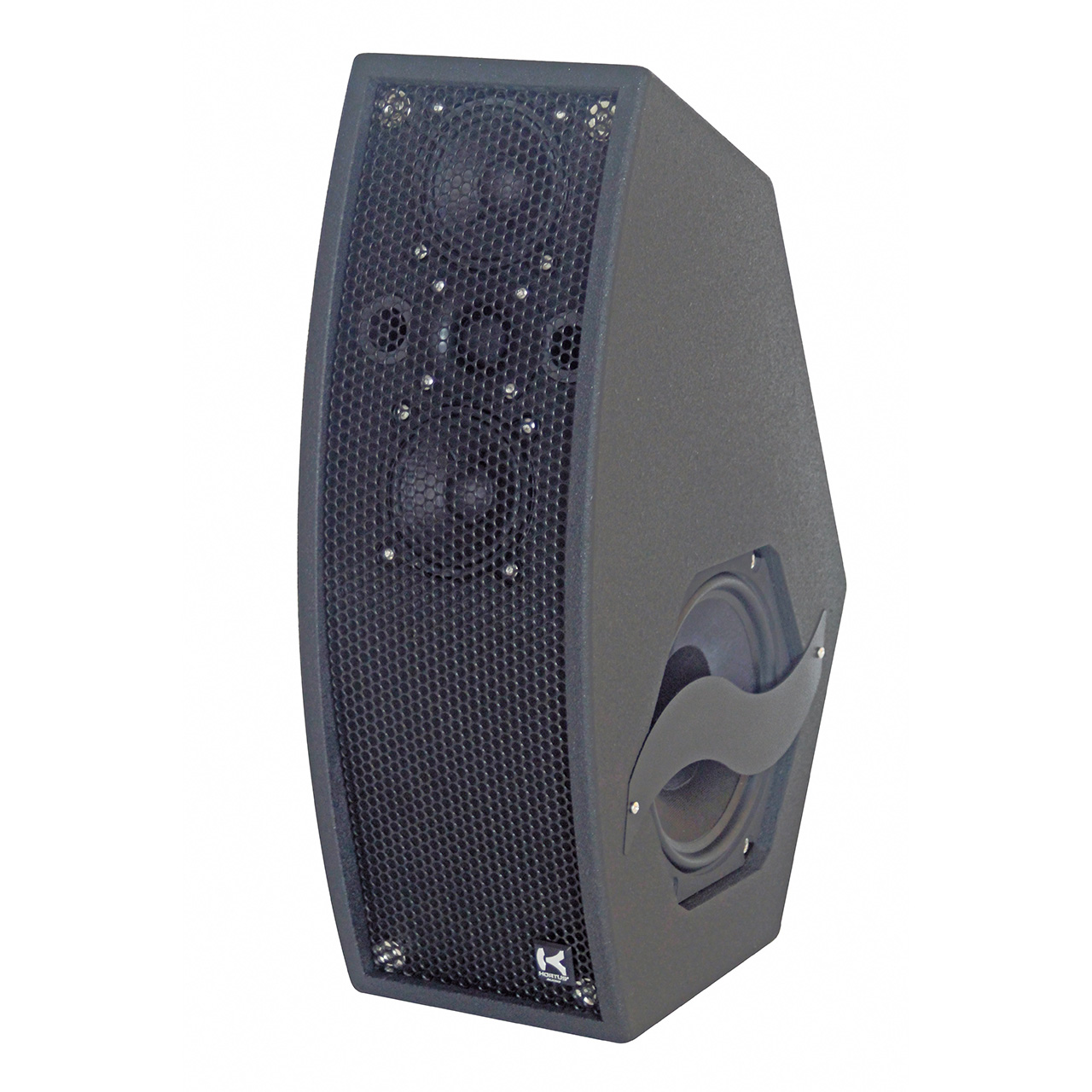

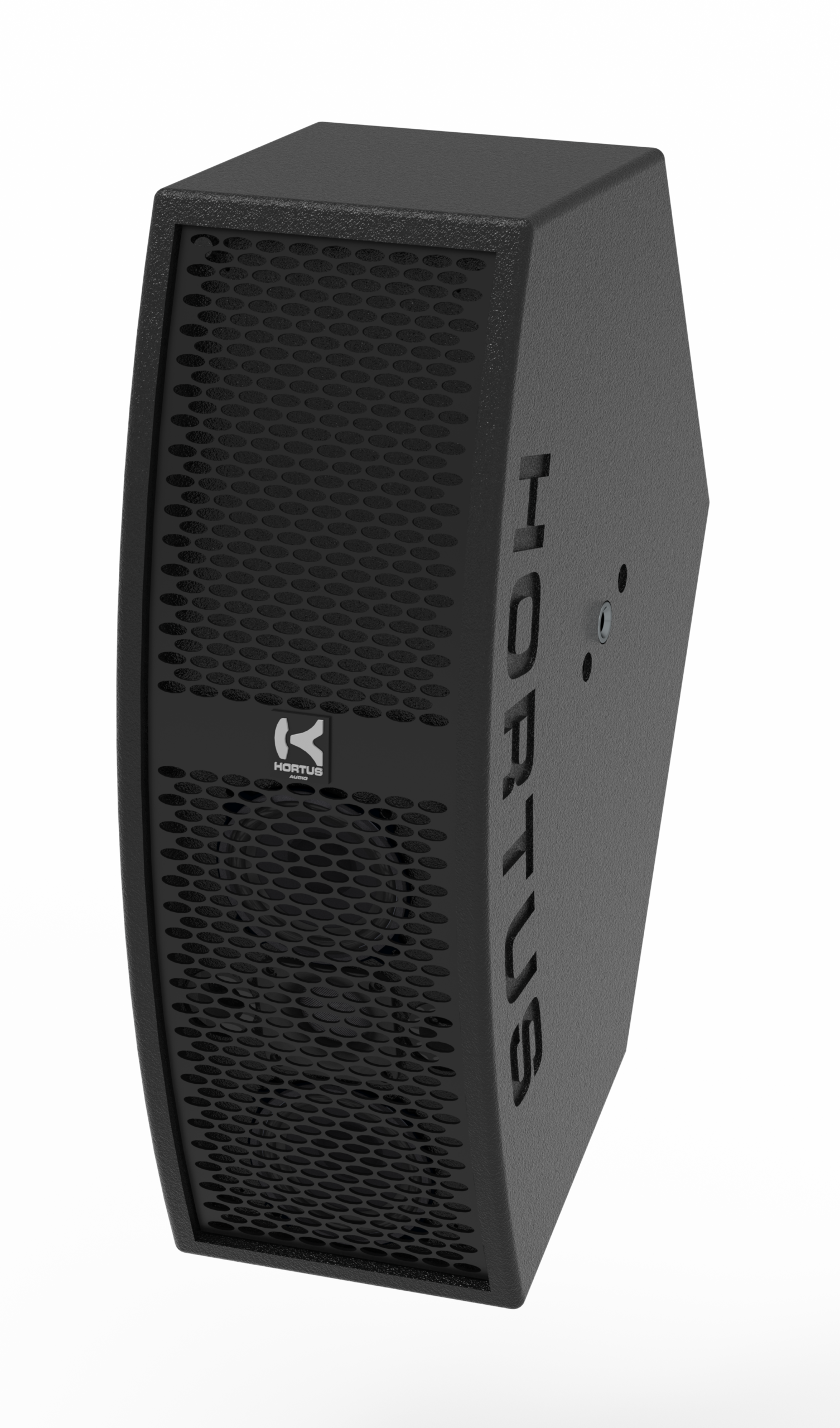

The BZ5 is an 80W AES power full range speaker at 8 ohms. It comprises 5′ low-frequency and 3′ medium-frequency vented enclosed loudspeakers, as well as a 0.25′ tweeter.



Best advantages

Applicable to small, medium-sized and large venues

Directivity (-6dB): 100° H x 60° V

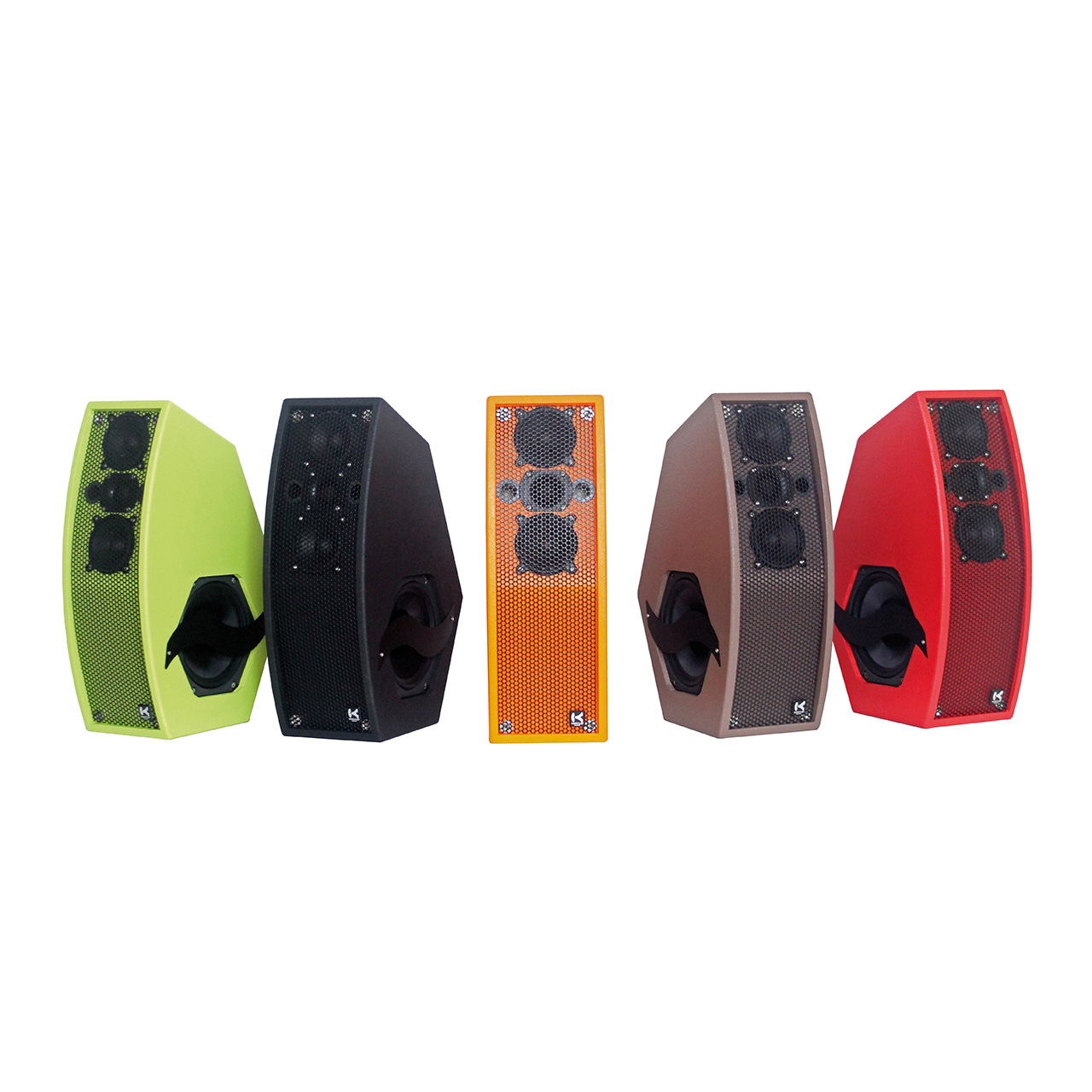

Although mostly sold in black, the BZ5 can be painted white or a wide range of other RAL colours upon request

Specifications

AES Power: 100 W / 8 Ω
Bandwidth (-6dB): 75 Hz to 20 KHz
Sensitivity: 91 dB / 1W @1m
SPL MAX level: 109 dB
Directivity (-6dB): 100° H x 60° V
LF: 1 x 6’’ vented enclosure
MF: 2 x 3’’ vented enclosure
HF: 1 x 0.25’’ tweeter
Connections: 2 Spk NL4 or Phoenix 4 pts

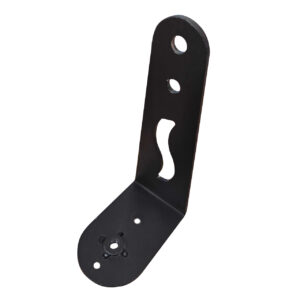

Rigging: 1 x M10 (for bracket)
2 x M6 (for wall mounting ball)
1 x M6 (for safety chain)
12 mm baltic birch wood
Finished polyurethane painting
Dim. H452 x D288 x W154 mm / Wht 5,15 kg

Product compatibility

MIB08S

CBA10

CBA12

Downloads

Available options:
BZ6/PB Phoenix Black
BZ6/SB Speakon Black
BZ6/PW Phoenix White
BZ6/SW Speakon White
BZ6/*C Colour (RAL) upon request
