CT30MKII

2-Way speaker

The CT15 is a compact public address speaker specifically designed for fixed installations. With its multi-rigging accessories, the 2-way passive speaker is primarily applicable to hotel settings, houses of worship, and shopping centres.



Best advantages

Available in 8 or 16 ohms

Excellent power handling

Humidity protected loudspeakers and UV resistant treatment



Specifications

Version 8 Ω: 150 W
Version 16 Ω: 120W
Bandwidth (-6dB): 65 Hz to 21kHz
Sensitivity: 91 dB / 1W @1m
SPL MAX level: 111 dB
Directivity (-6dB): 120° H
LMF: 1 x 6’ closed enclosure
HF: 1 x 0,25’’ neodym tweeter
Rigging : 2 X M10 + 2 X M6

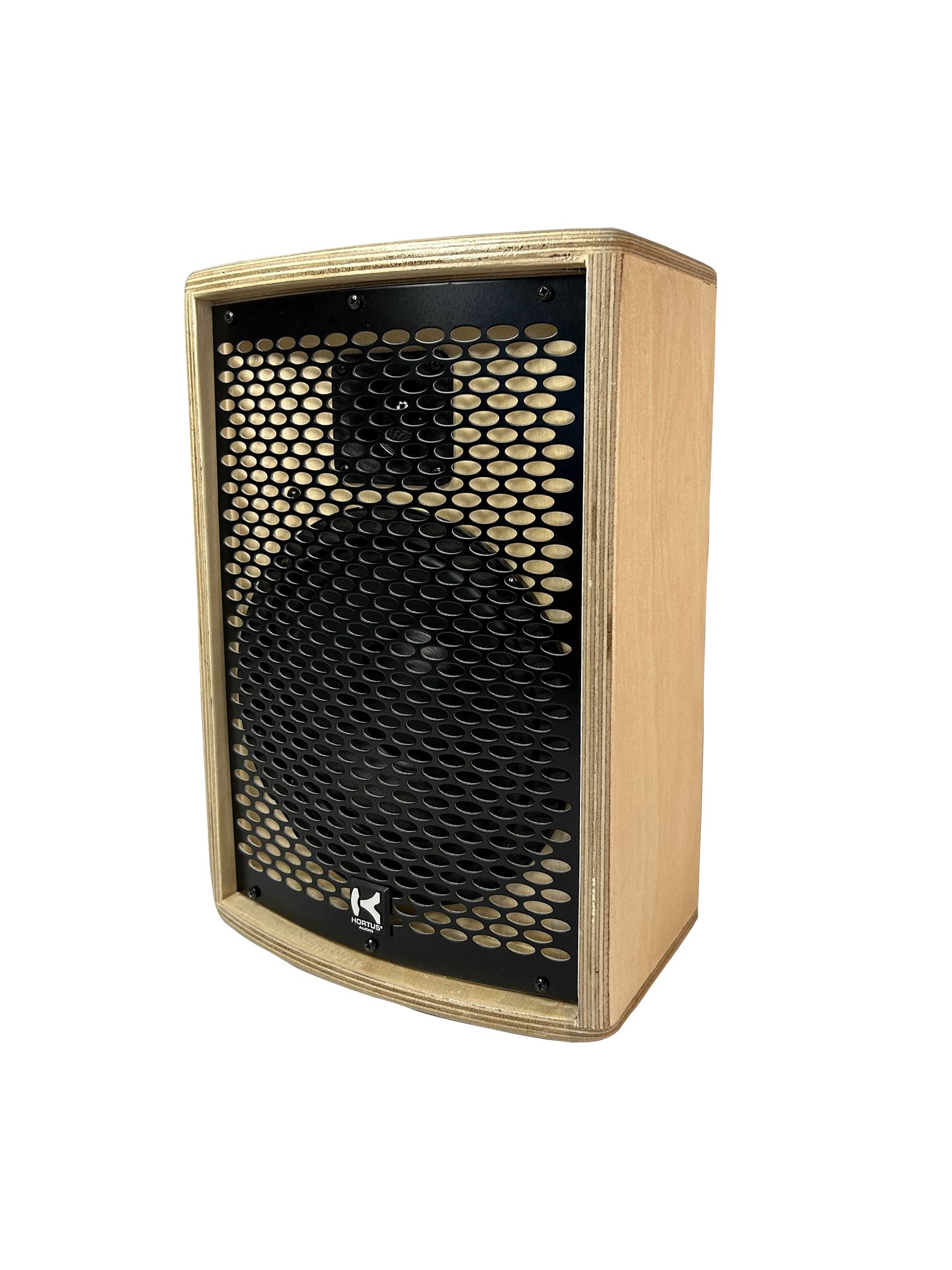

12 mm baltic birch wood
Finished polyurethane painting
Dim. Dim. : H297 x D235 x W206 mm / 4,5 kg

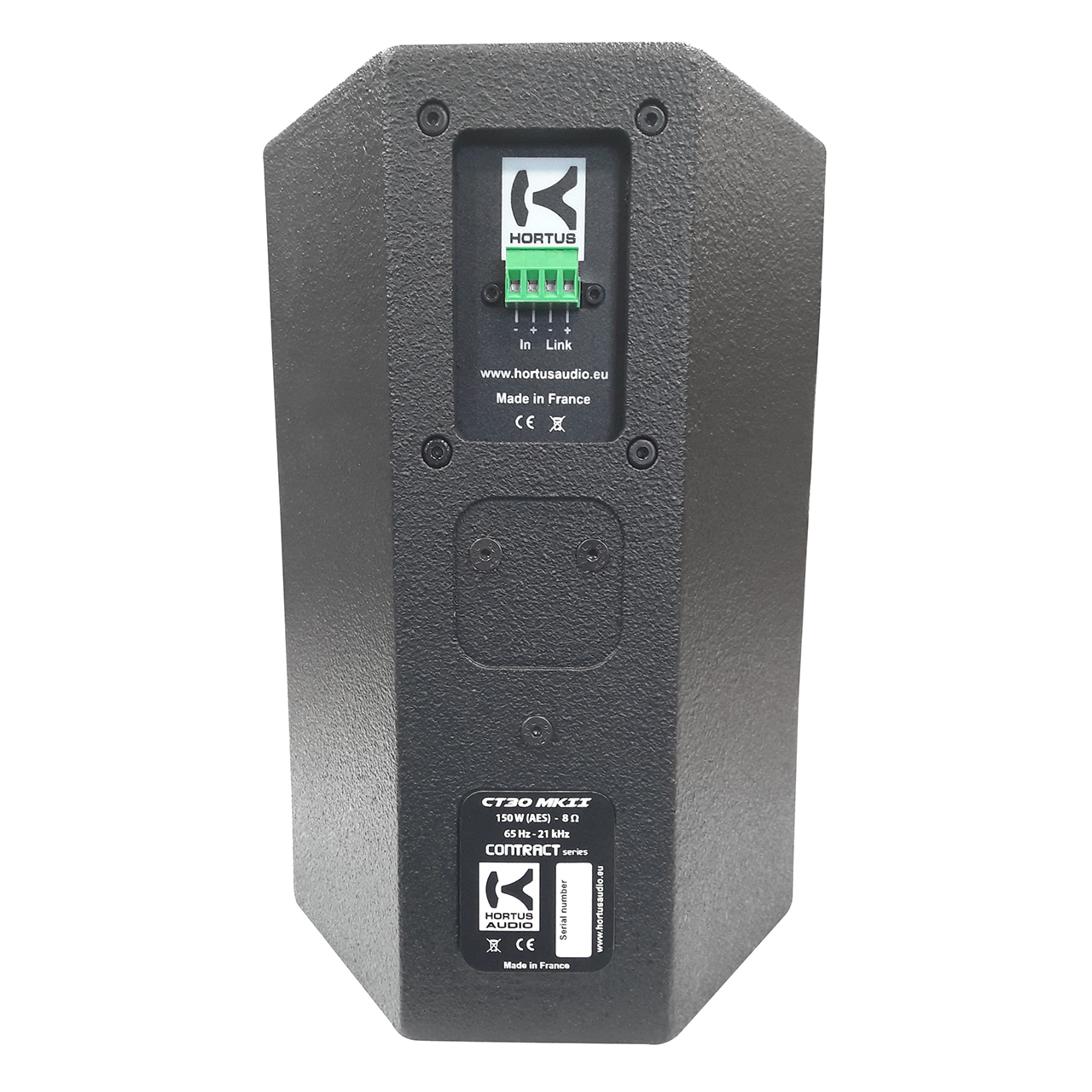

Phoenix Version: 4 pts Phoenix + 2 x M10
Speakon Version: 2 Neutrik NL4MP,
flange 35 mm K&M + 1 x M10

Product compatibility

AMS1

CT2.1

CT50S

HSL-24

HSL-36

HSL-48

Downloads

Available options
CT30MKII-PB08 Phoenix 8 Ω Black
CT30MKII-SB08 Speakon 8 Ω Black
CT30MKII-PB16 Phoenix 16 Ω Black
CT30MKII-SB16 Speakon 16 Ω Black

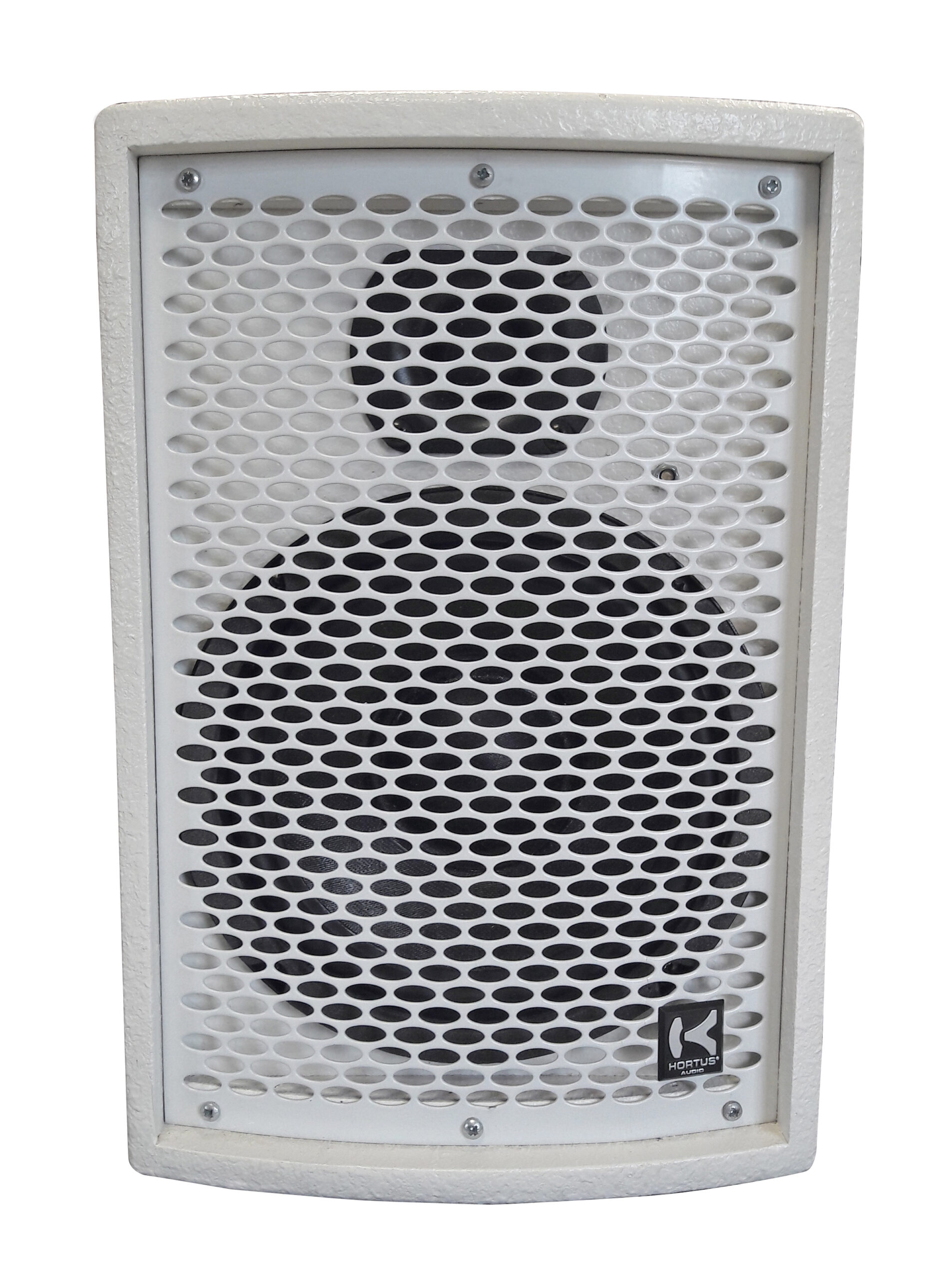

CT30MKII-*W** White

*For Phoenix versions all the connectors are included.
