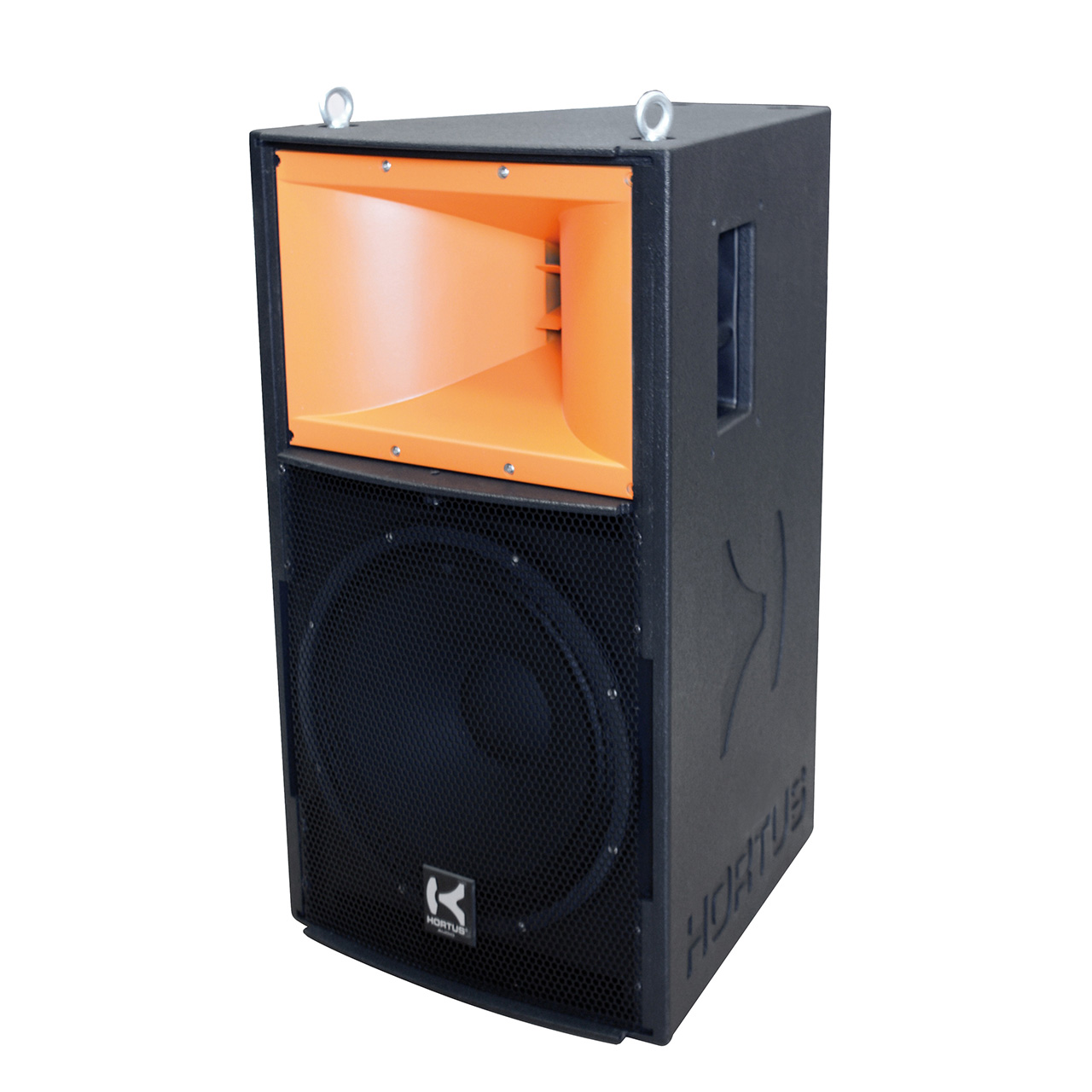

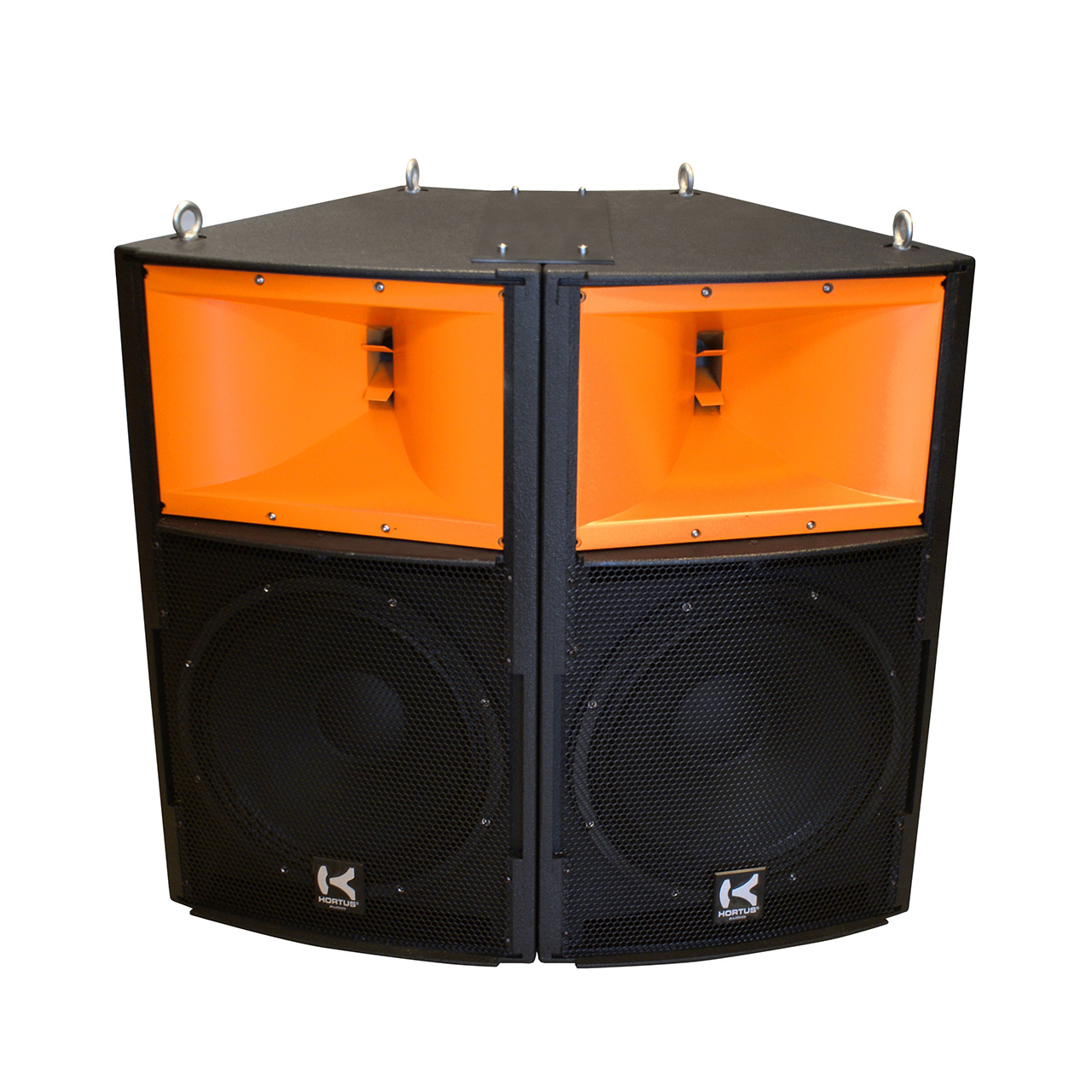

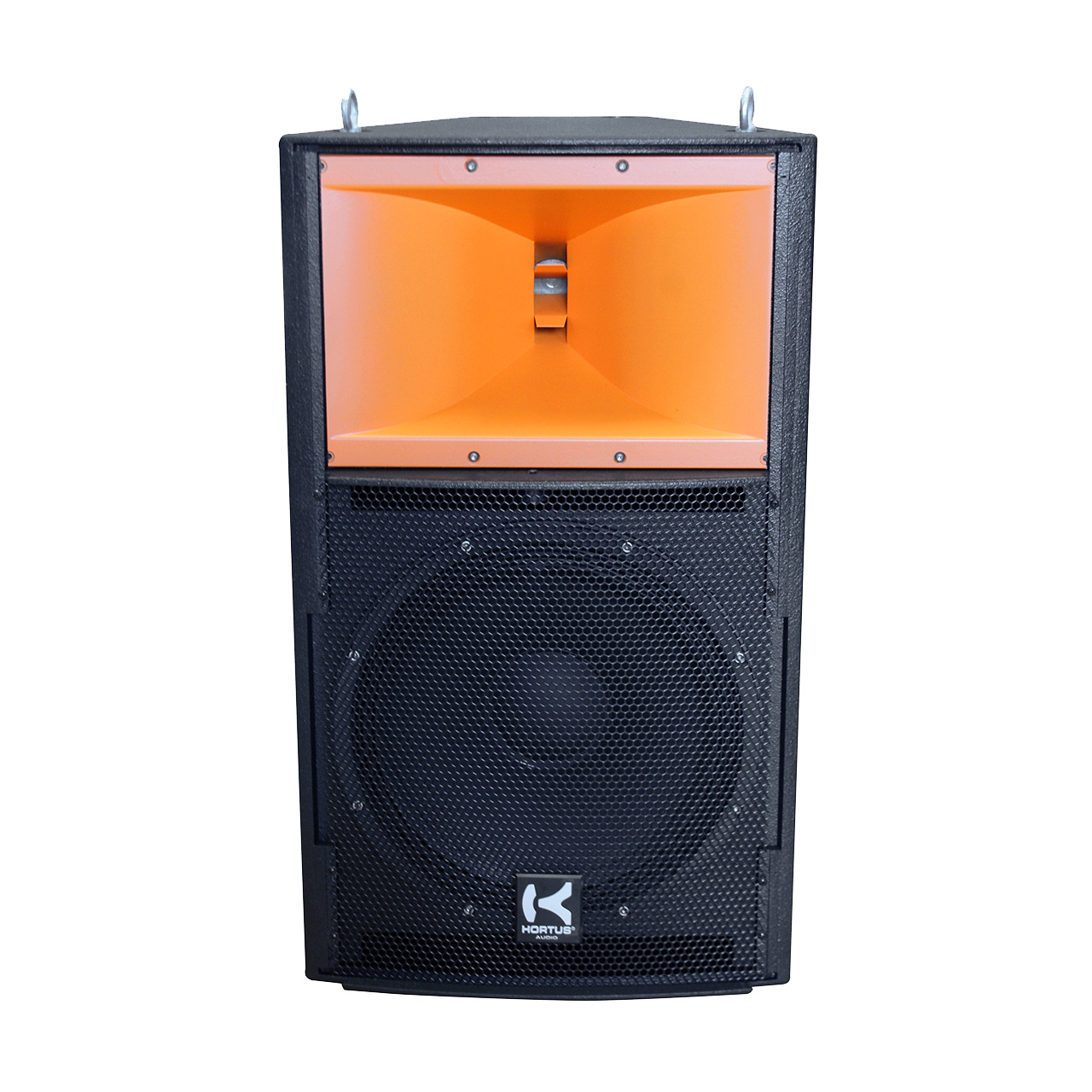

MP15 & MP15C*

2-Way Passive Speaker (without amplifier)

The MP15 2-way passive speaker has been made available in 4 different versions. The weatherproof speaker applies in particular to clubs, concerts, stadiums, and theatres. The MP15 transducers allow for a good pressure level without distortion. The result is great intelligibility, and a dynamic restitution.

The MP15 & the MP15C (clubbing version) are complemented by the MP15/P & MP15C/P, which include an integrated crossover.

*MP15C (Clubbing version)



Best advantages

  • Excellent linear frequency response & directivity
  • Suitable for temporary and permanent audio installations
  • Dedicated wheel board to easily facilitate rigging needs



Related applications

Specifications

Requires 2 amplification channels
MP15: AES LF Power: 500 W / HF: 110 W / 8 Ω
MP15C: AES LF Power: 450 W / HF: 70 W / 8 Ω
Bandwidth LF (-6dB): 70 Hz - 1,6 kHz
Bandwidth HF (-6dB): 800 Hz - 20 kHz
Sensitivity LF: 99 dB / 1W @1m
Sensitivity HF: 108 dB / 1W @1m
SPL MAX LF level: 128 dB / HF: 130 dB
Directivity (-6dB): 60° H x 40° V
LF: 1 x 15’’ vented enclosure
HF: Compression 2’’

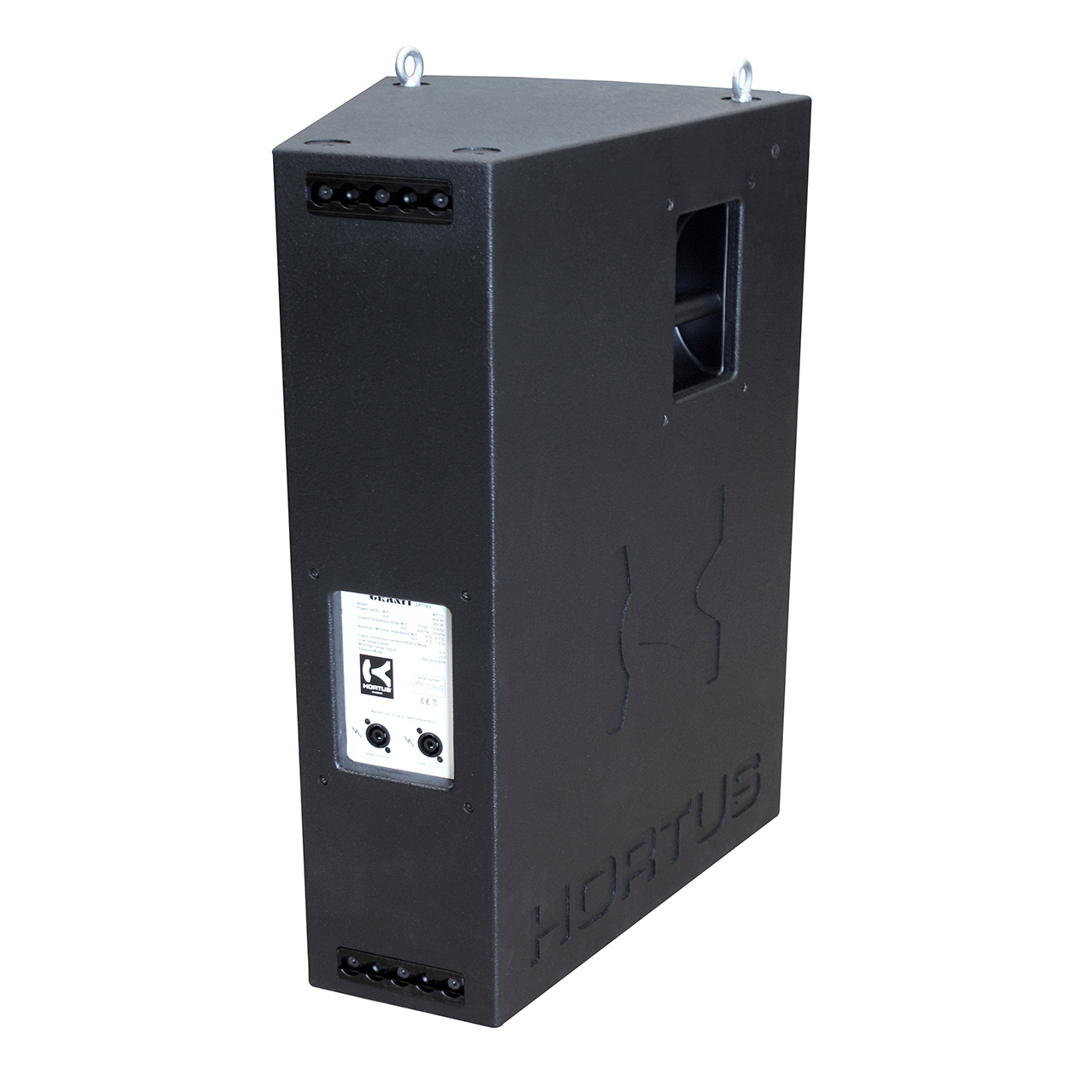

Connections: 2 Speakon NL4MP

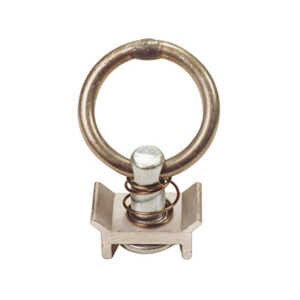

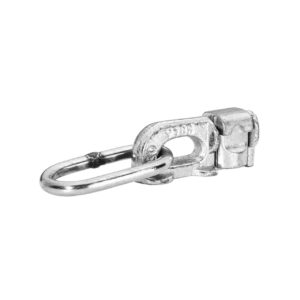

Rigging: 2 x Rails type aerodeck (rear)
4 x Fixing points M10 (top)
- 15 mm baltic birch wood
- Finished polyurethane black painting
- Dim. H770 x D530 x W465 mm / Wht: 41 kg

Product compatibility

MB1

Downloads


Available options
MP15 (Black foam on front panel)
MP15: Passive Bi-amp
MP15/P: Passive (Integrated Crossover)
SK-MP15: Wheel board (MP15)
MP15C (Orange, black or grey horn)
MP15C: Passive Bi-amp
MP15C/P: Passive (Integrated Crossover)
