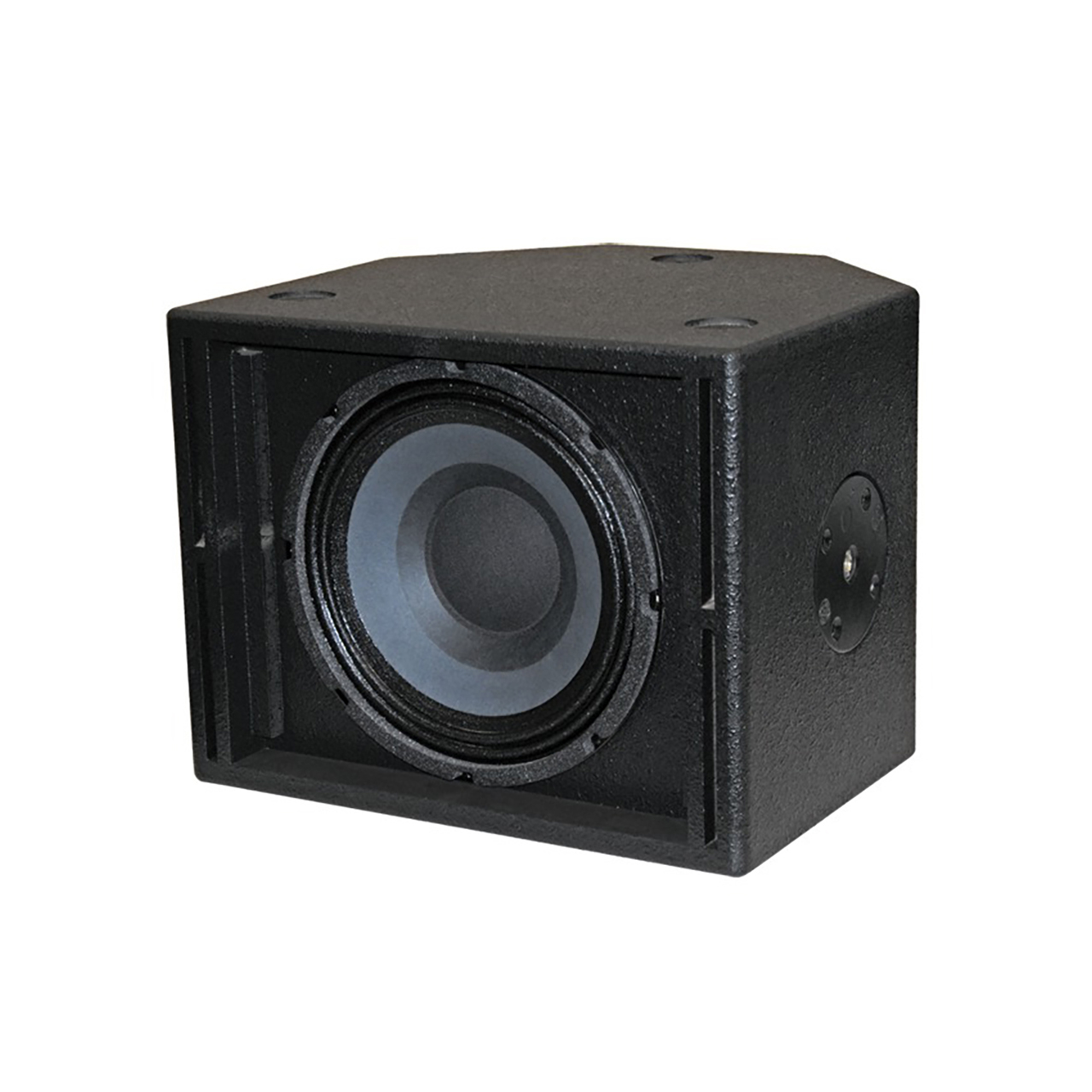

CXT10

Coaxial 2-way Passive Cabinet

The CXT10 is designed for public address & fixed installations in bars, clubs, concerts, government functions, lounges, and theatres. The compact coaxial 2-way passive cabinet has a 10′ speaker & a 1’ driver. The coaxial mounting allows for a high power response and  high intelligibility. With its multi-rigging capacities, it can be setup in either a horizontal or vertical position.



Best advantages

Multi-rigging hardware equipment

2 interchangeable sockets M10/20

70° conical directivity



Specifications

RMS Power: 175 W / 8 Ω
Bandwidth (-6dB): 80 Hz to 20 KHz
Sensitivity: 95 dB / 1W @1m
SPL MAX level: 116 dB
Directivity (-6dB): 70° conical
LF: 1 x 10’’ vented enclosure
HF: 1 coaxial speaker 1’’
Rigging: flange 35 mm +
2 interchangeable sockets M10/20
Connections: 2 Speakon NL4MP
15 mm MDF
Finished polyurethane painting
Dim. H290 x D350 x W390 mm / 17 kg

Product compatibility

CT2.1
