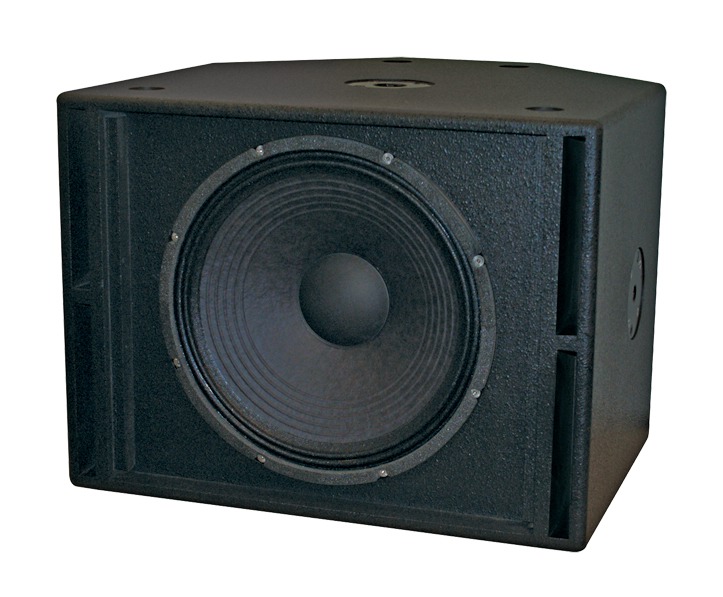

Bass Cabinet with built-in passive crossover

The CXT15B is a compact bass cabinet which improves the bandwidth of the coaxial 2-way passive cabinet, the CXT10, down to 50 Hz. The CXT15B’s rear-end trapezoidal shape enables it to easily integrate into a variety of challenging audio environments. Its built-in RPX passive crossover facilitates solid performance in active or passive mode. For example, you can utilize 2 x CXT10 with 2 x CXT15B on a single amplifier without any need for active crossover.


Best advantages

Built-in passive crossover

Highly efficient size/weight/ power ratio

Weatherproof foam (water, dust)



RMS Power: 275 W / 8 Ω
Bandwidth: (-6dB) : 50 Hz to 150 Hz
Sensitivity: 101 dB / 1W @1m
SPL MAX level: 126 dB
Directivity (-6dB): omnidirectional
LF : 1 x 15’’ vented enclosure
Connections: input on 2 Speakon NL4 <br< + 1 output on NL4MP for 1 x CXT10
Rigging: 1 flange 35 mm K&M
15/18 mm MDF
Finished polyurethane painting
Dim. H450 x D600 x W600 mm / 35 kg

Product compatibility
