MIB8

The MIB08 bass cabinet has a low frequency 8’’ speaker with 280W / 560W AES power. It has integrated DSP and two XLR inputs and 2 x speakon amplified outputs for satellite speakers (the MI-12, MI-13). It can remain untouched as varnished wood or be painted black or white.



Best advantages

Enables 4 to 16 satellite speakers
Available as an active as well as a passive version

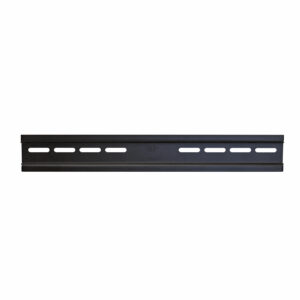

Built-in wall mounting plate



Active
Passive
Clear
Related applications

Specifications

-LF 1 x 8’’ band Pass 6th order enclosure
-Baltic birch wood (varnished) or black/white finished polyurethane painting
Passive Version:
Input on Phoenix connector
Power: 280 W AES / 560 W Progr. / 8 Ω
Dim. H445 x D195 x W570 mm
Active Version:

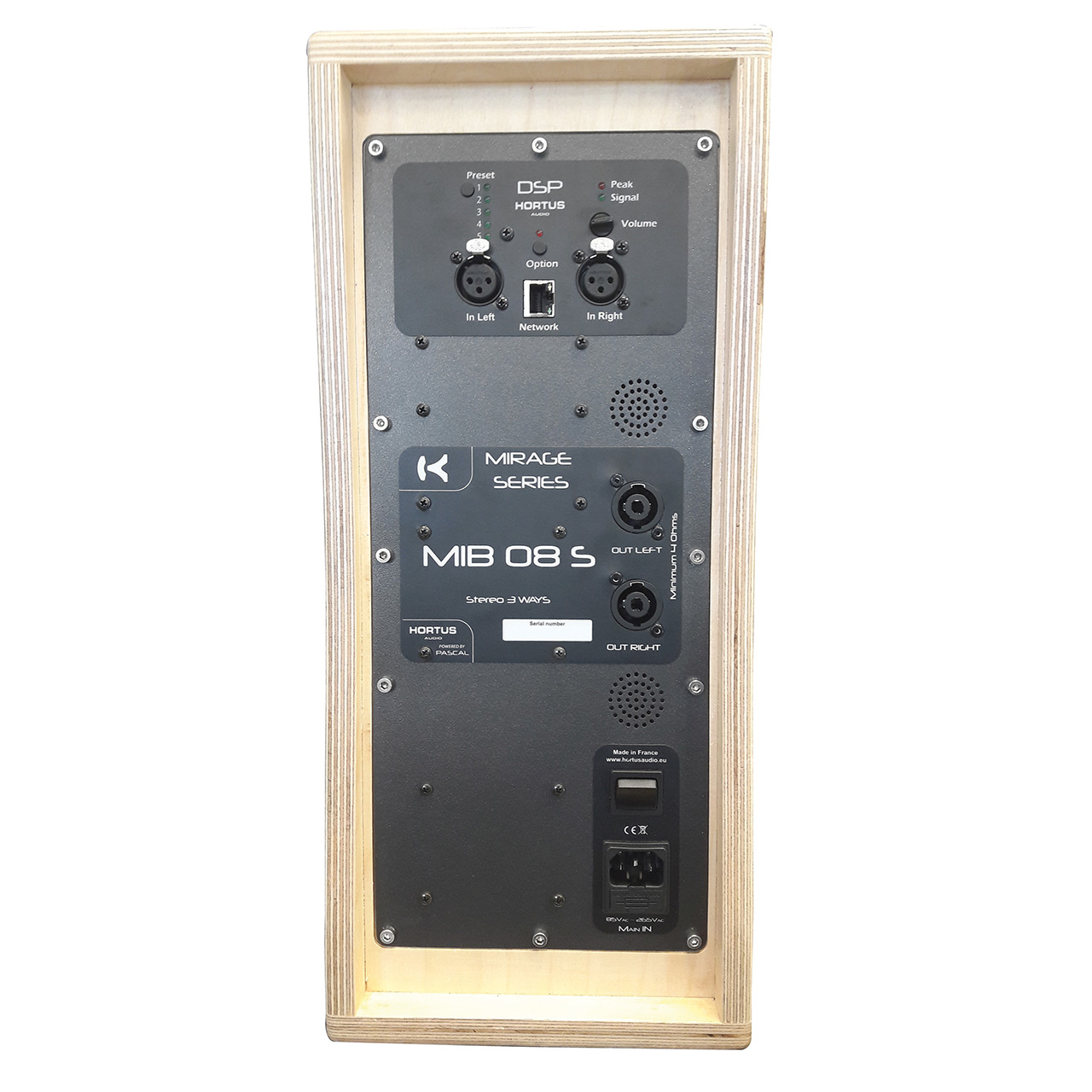

3-way amplified with integrated DSP
Balanced stereo inputs on 2 x XLR
2 Amplified outputs for satellite speakers:
2 x Speakon connectors
Dim. H445 x P195 x L620 mm

Product compatibility

CLA18

MI12

MI13

S6.1

Q5
