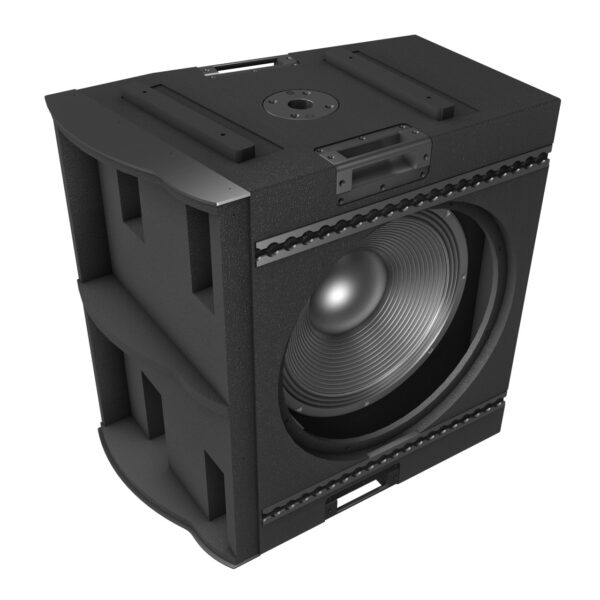

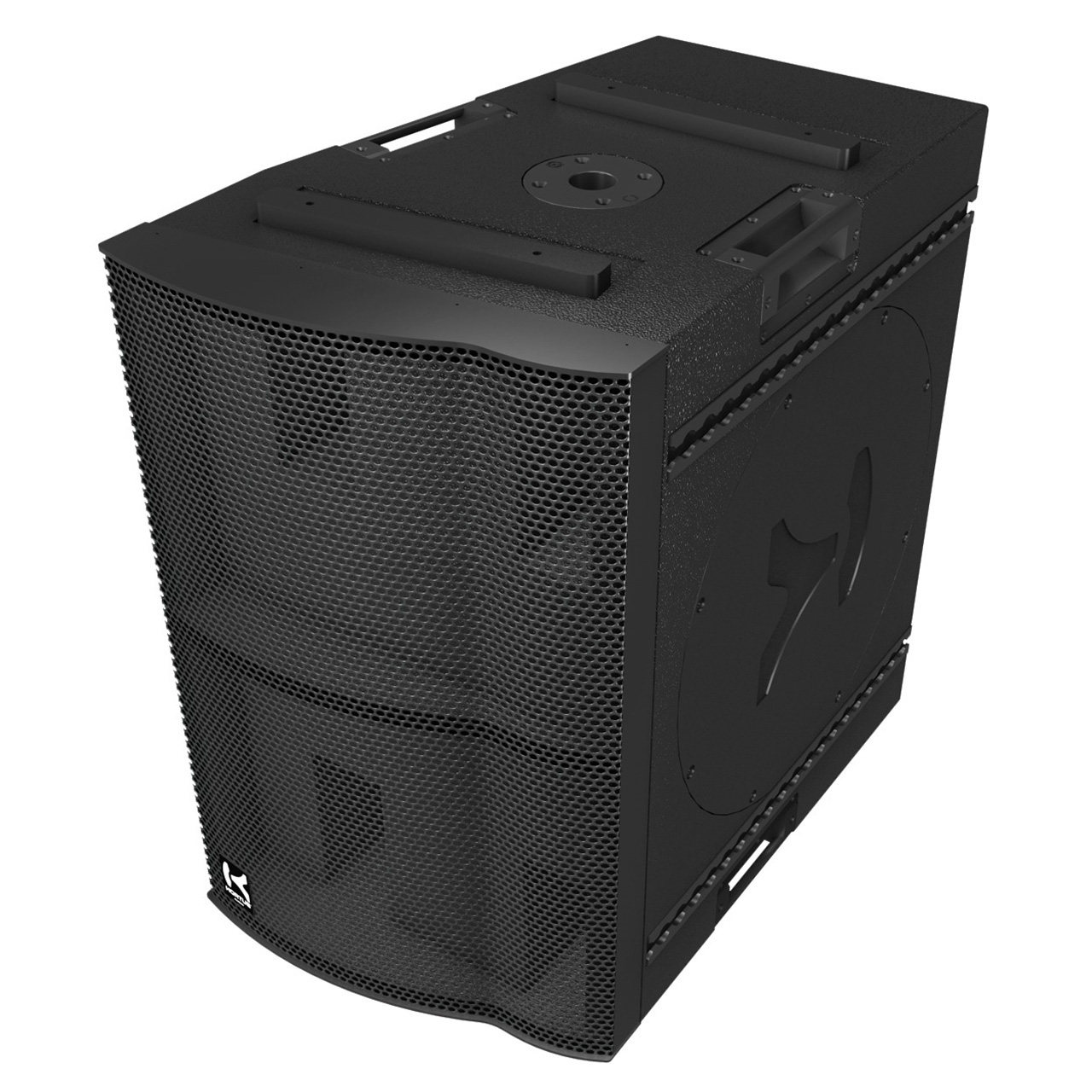

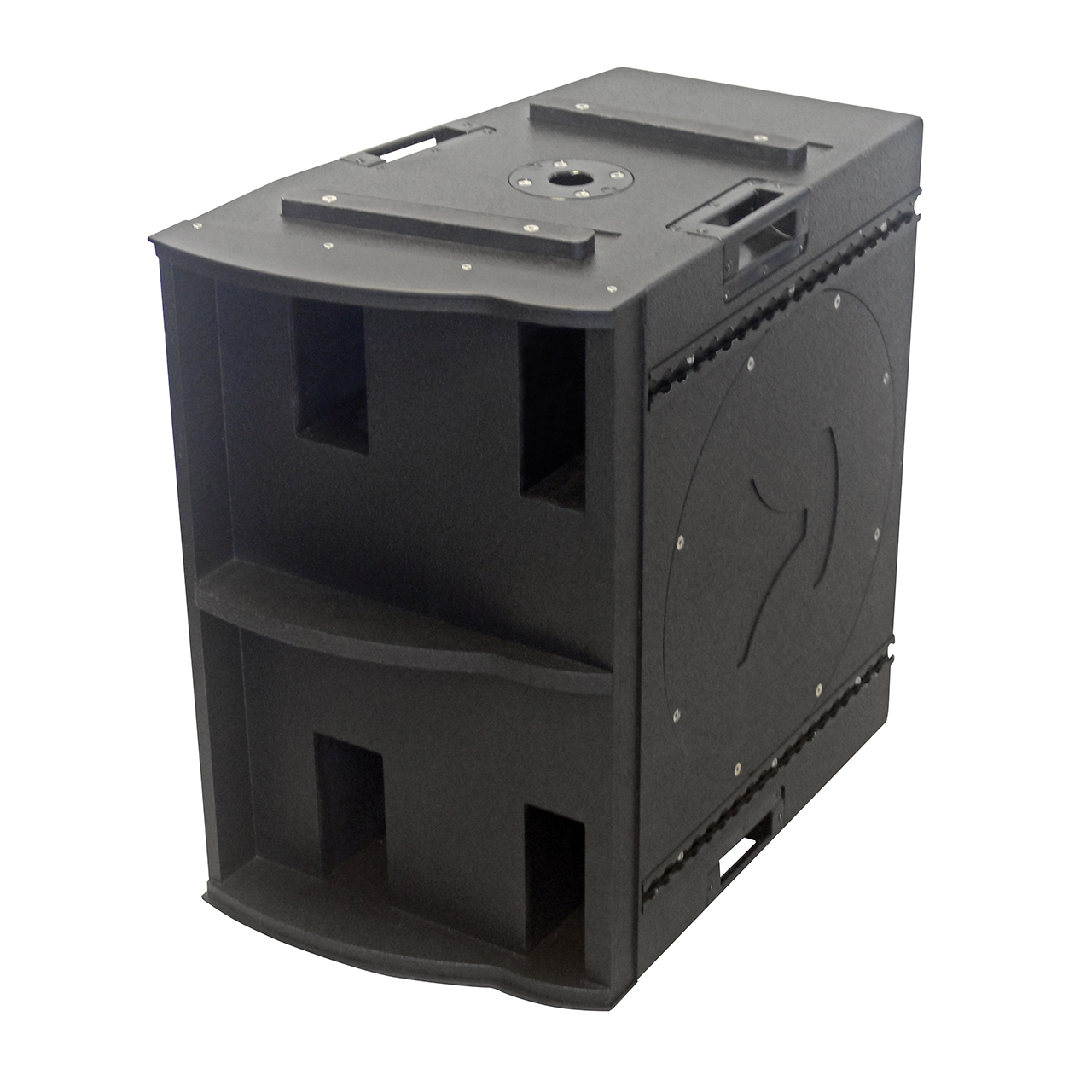

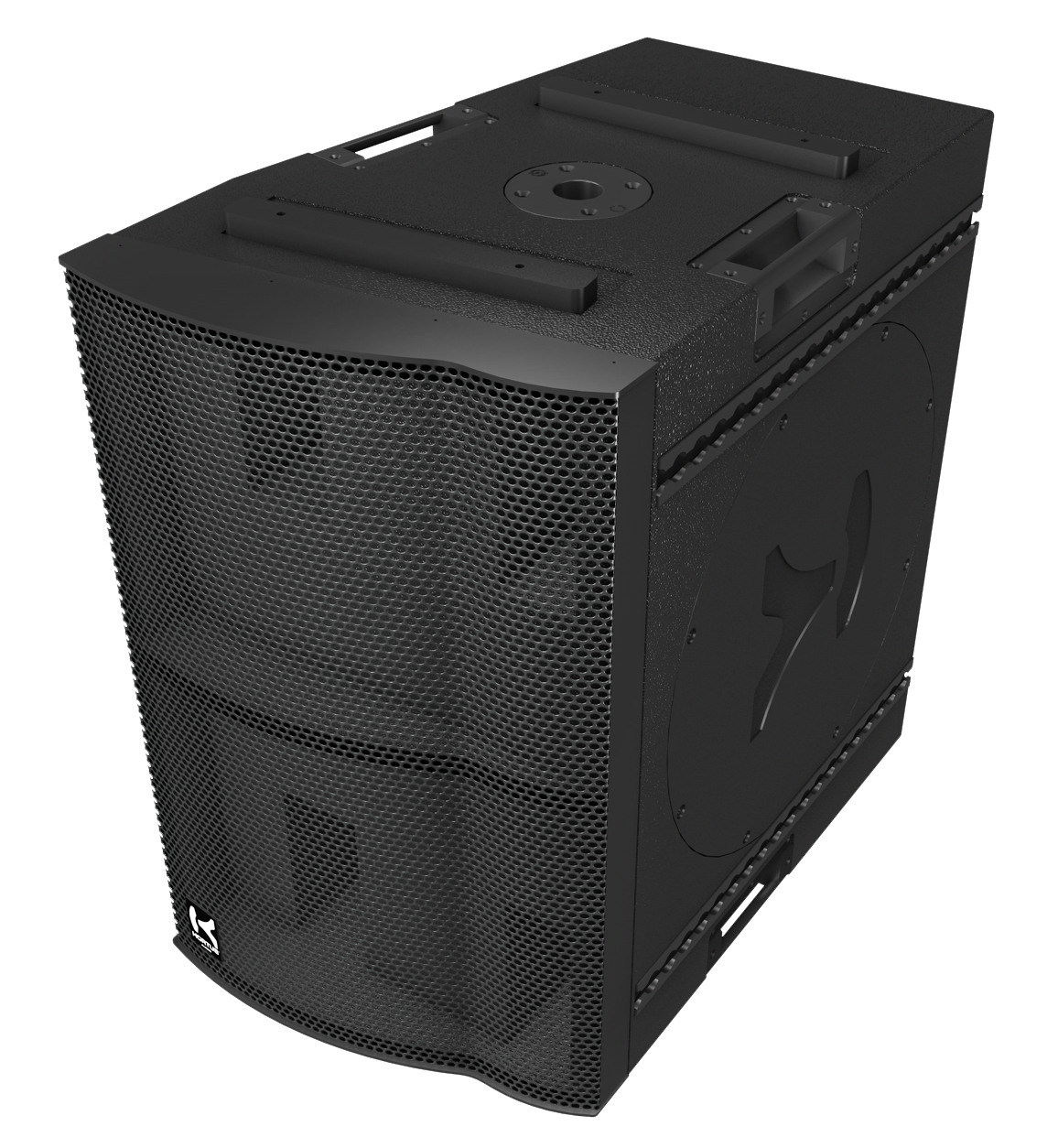

EVO-15

Bass Cabinet for the EVO-12

The AES 1000W EVO-15 bass cabinet is made for the EVO-12. It too is available as both an active and passive version. At 8 ohms, it provides the 180′ cardioid directivity and 37 Hz to 200 Hz bandwidth for the EVO Series to take flight.



  Key features

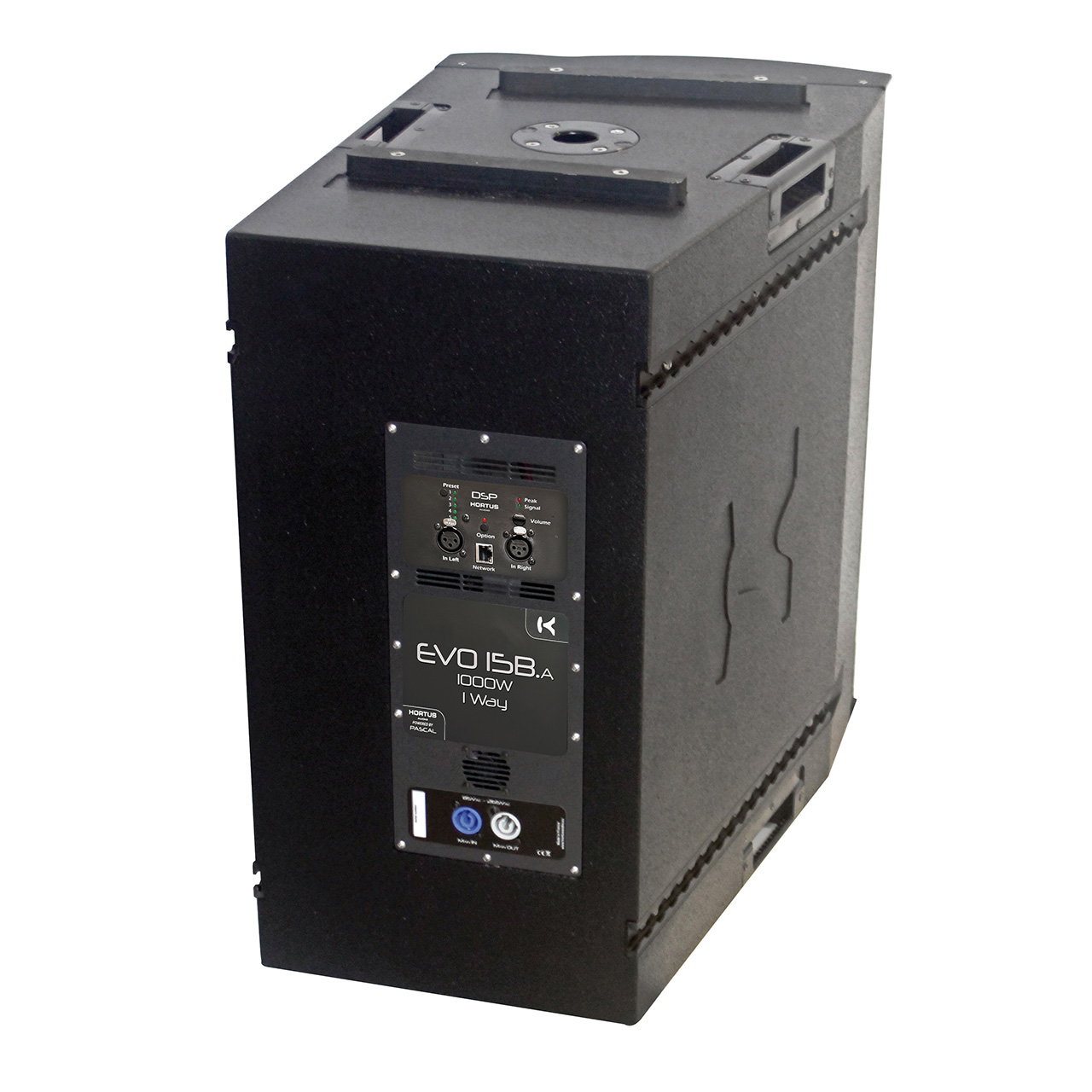

Available as a passive version or as an active version with built-in DSP

Bandwidth: 37 Hz to 200 Hz

4 x aerodeck type rails + 4 x transport handles



Active
Passive
Clear
Related applications

Specifications

AES Power: 1000 W / 8 Ω
Bandwidth (-6dB): 37 Hz to 200 Hz
Sensitivity: 90 dB /1W @1m
SPL level: 127 dB @1m
SPL MAX level: 130 dB @1m
Directivity: 180° cardioid
LF: 1 x 15’’ band pass 6th order enclosure
Rigging: 1 socket diam. 35 mm,
- 4 x aerodeck type rails - 4 x transport handles
- 18/30 mm baltic birch wood
- Finished polyurethane painting
- Dim. H674 x D627 x W406 mm / 43 Kg
