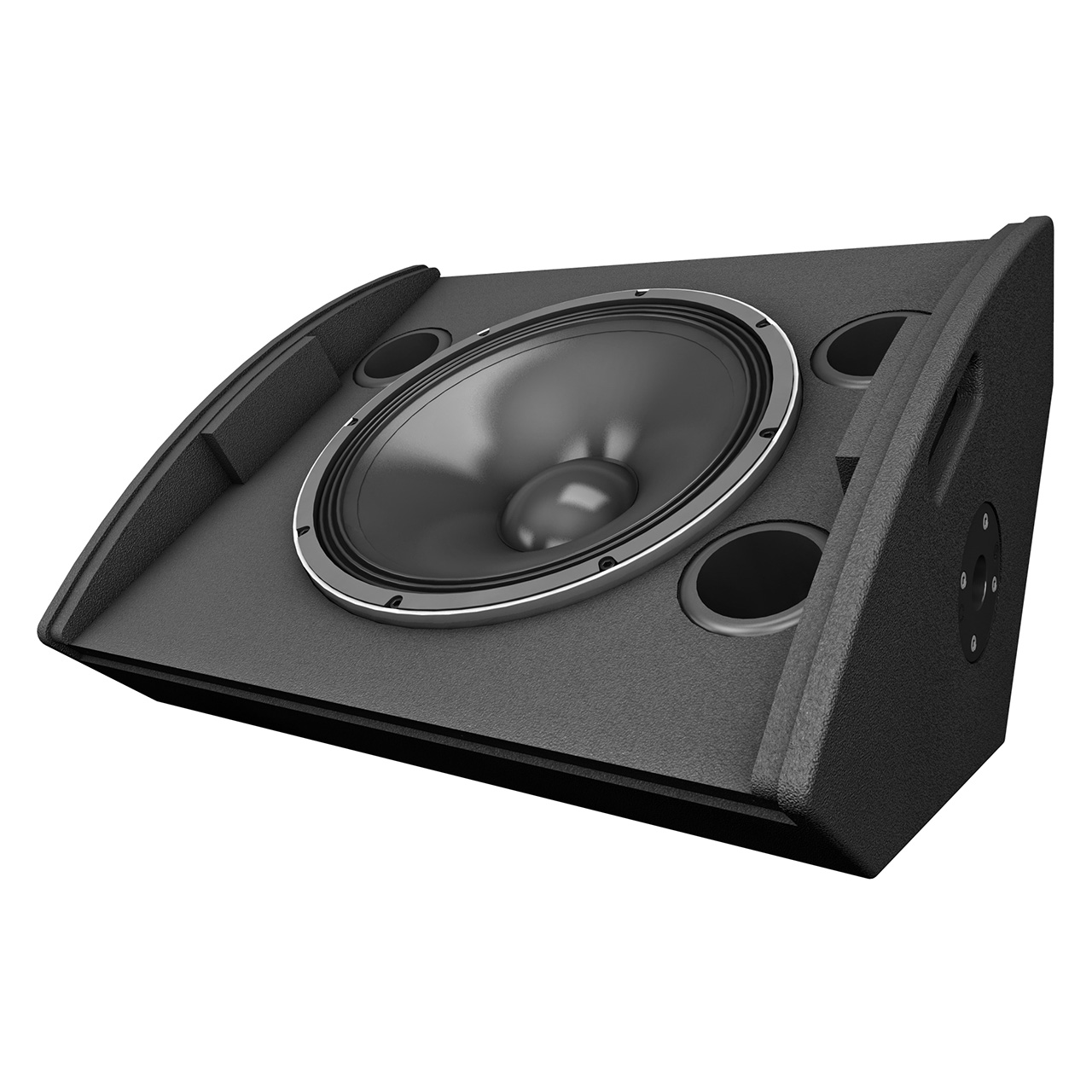

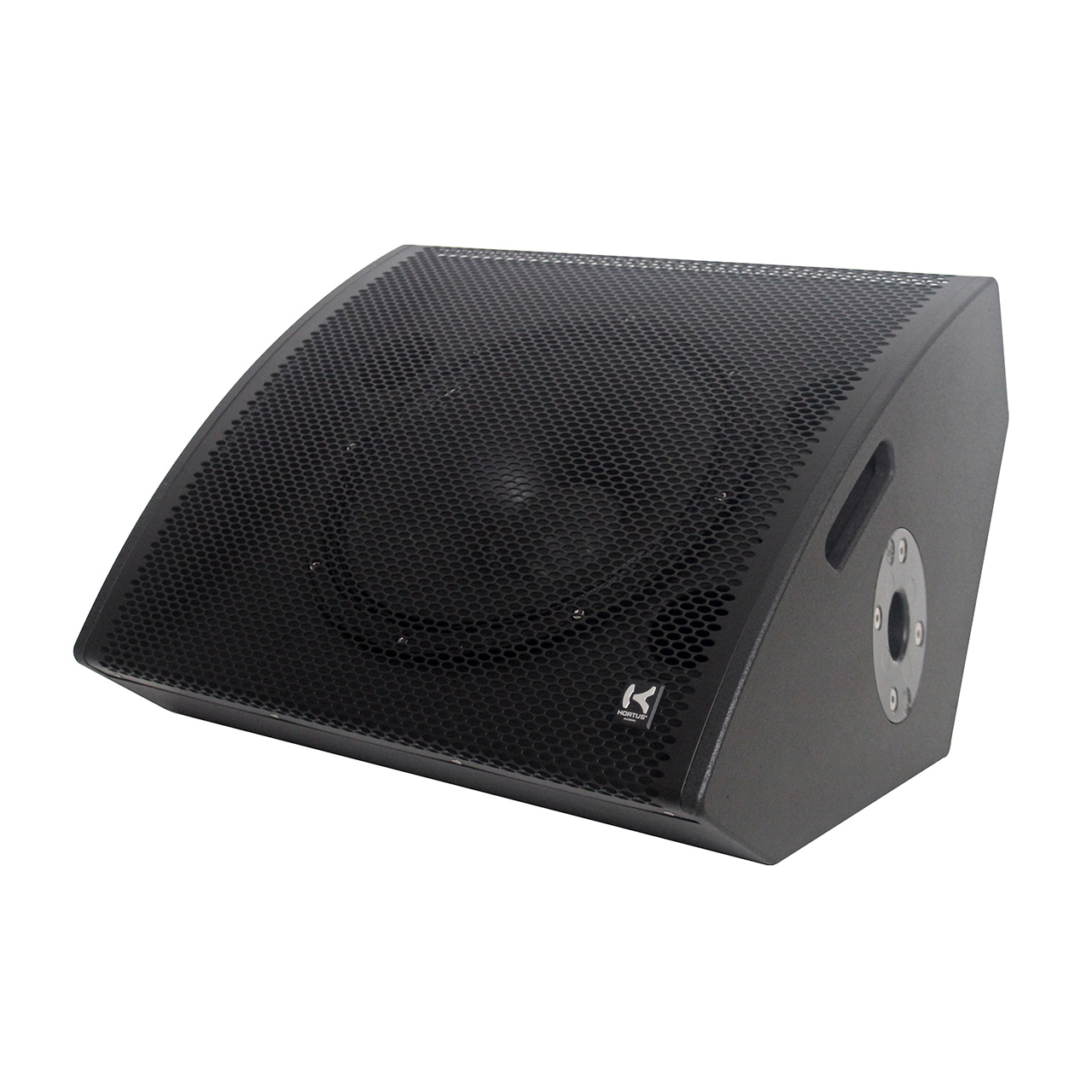

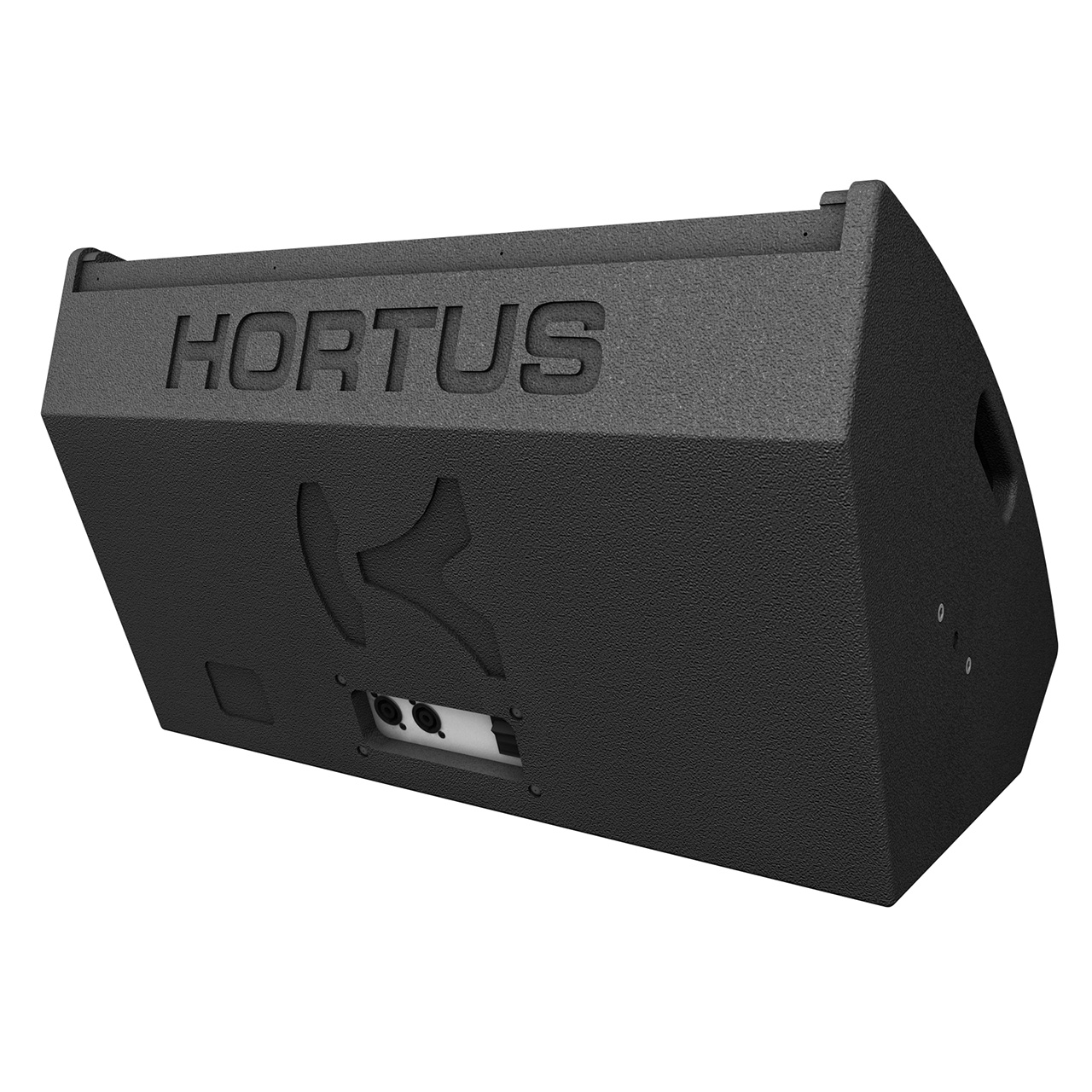

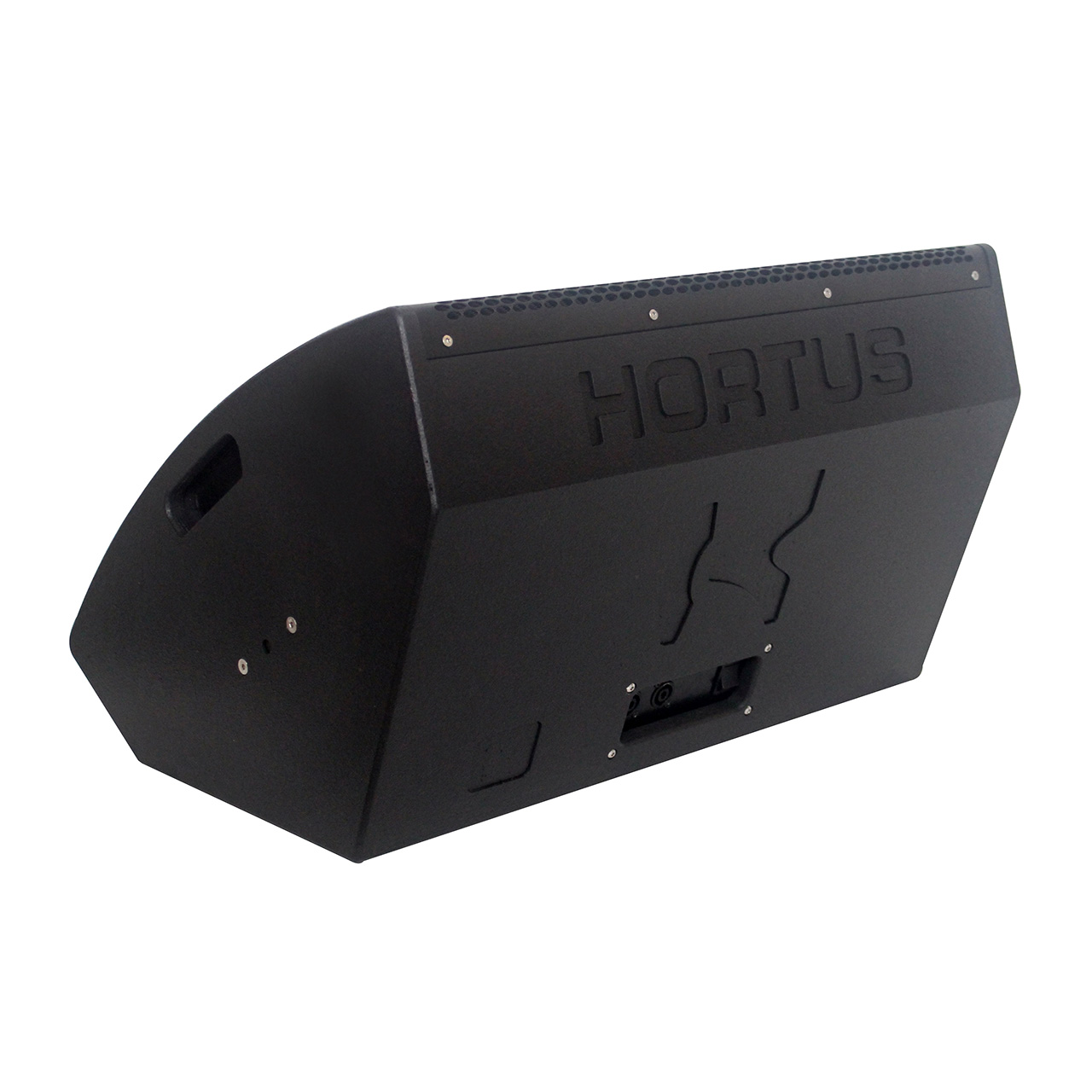

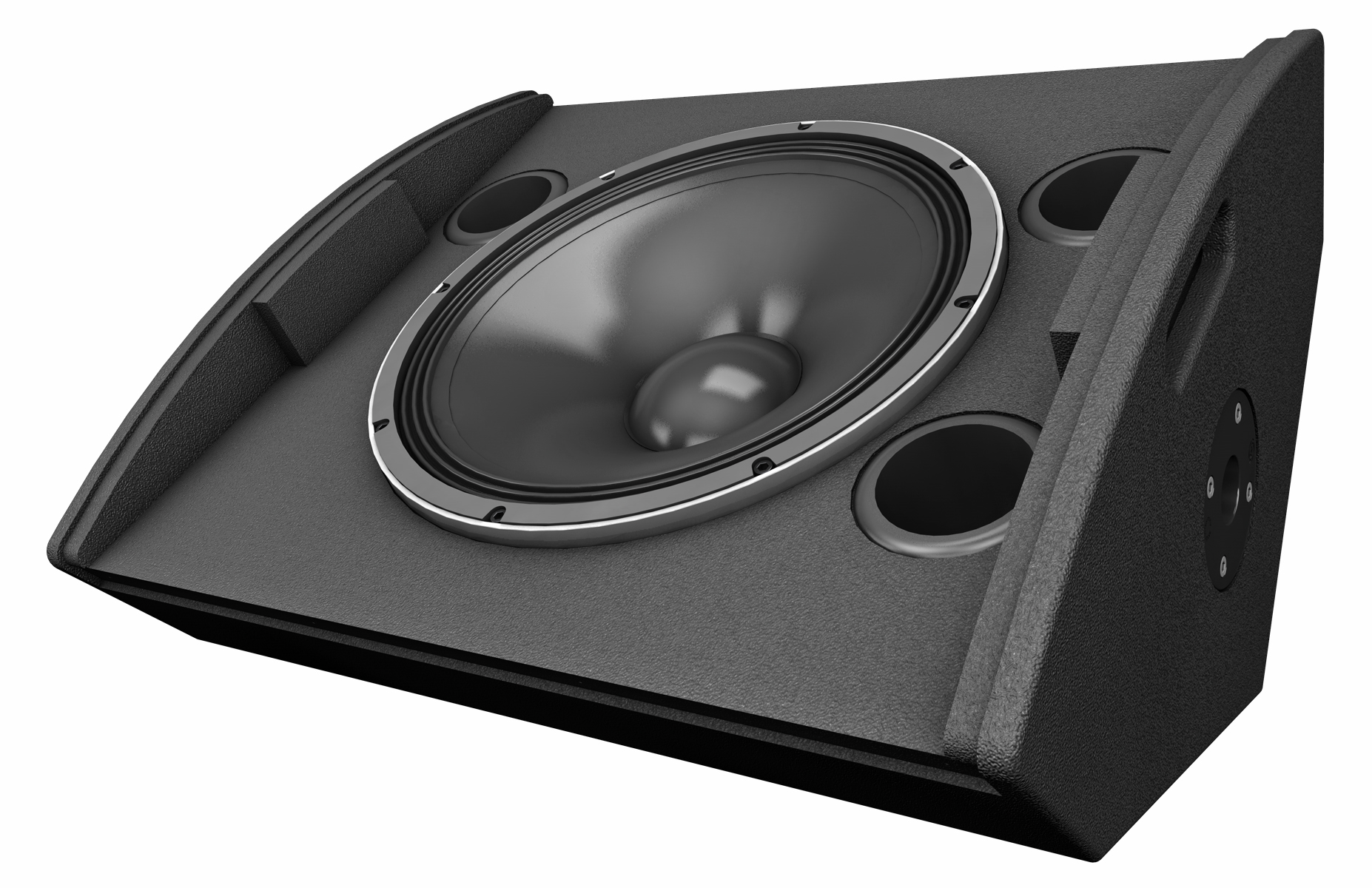

SAM-15

15’’ Coaxial speaker PA system & floor monitor

The SAM-15 is a passive 8 ohm floor monitor, which is available in black and white.



Key features

AES Power : 400 W / 8 Ω

Frequency range : 40 Hz à 20 kHz

Well-suited to medium-sized concerts

Active
Passive
Clear
Related applications

Specifications

- AES Power 500 W / 8 Ω
Bandwidth (-6dB): 50 Hz to 20 kHz
Sensitivity: 100 dB / 1W @1m
SPL MAX level: 131 dB
Directivity (-6dB): 80° conical
LMF: 1 x 15’’ vented enclosure
HF: 2’’ coaxial compression
Rigging: Insert M10 + Fem. ø 35 mm socket
- 15 mm baltic birch wood
- Finished polyurethane painting
Dimensions: H392 x D477 x W620 mm

Downloads


Available options
SAM15/B Black passive
SAM15/BA White passive
