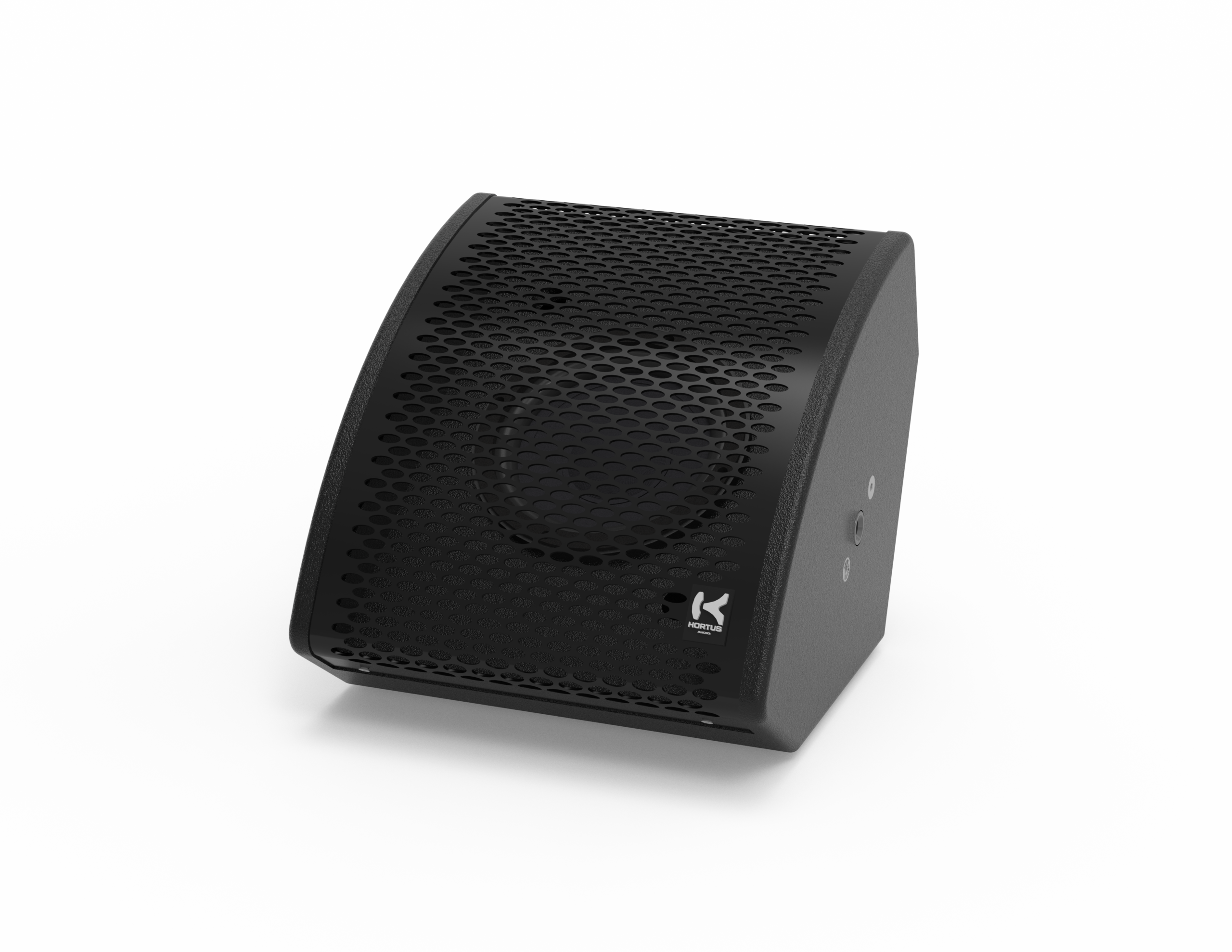

SAM-5

5’’ Coaxial speaker PA system & floor monitor

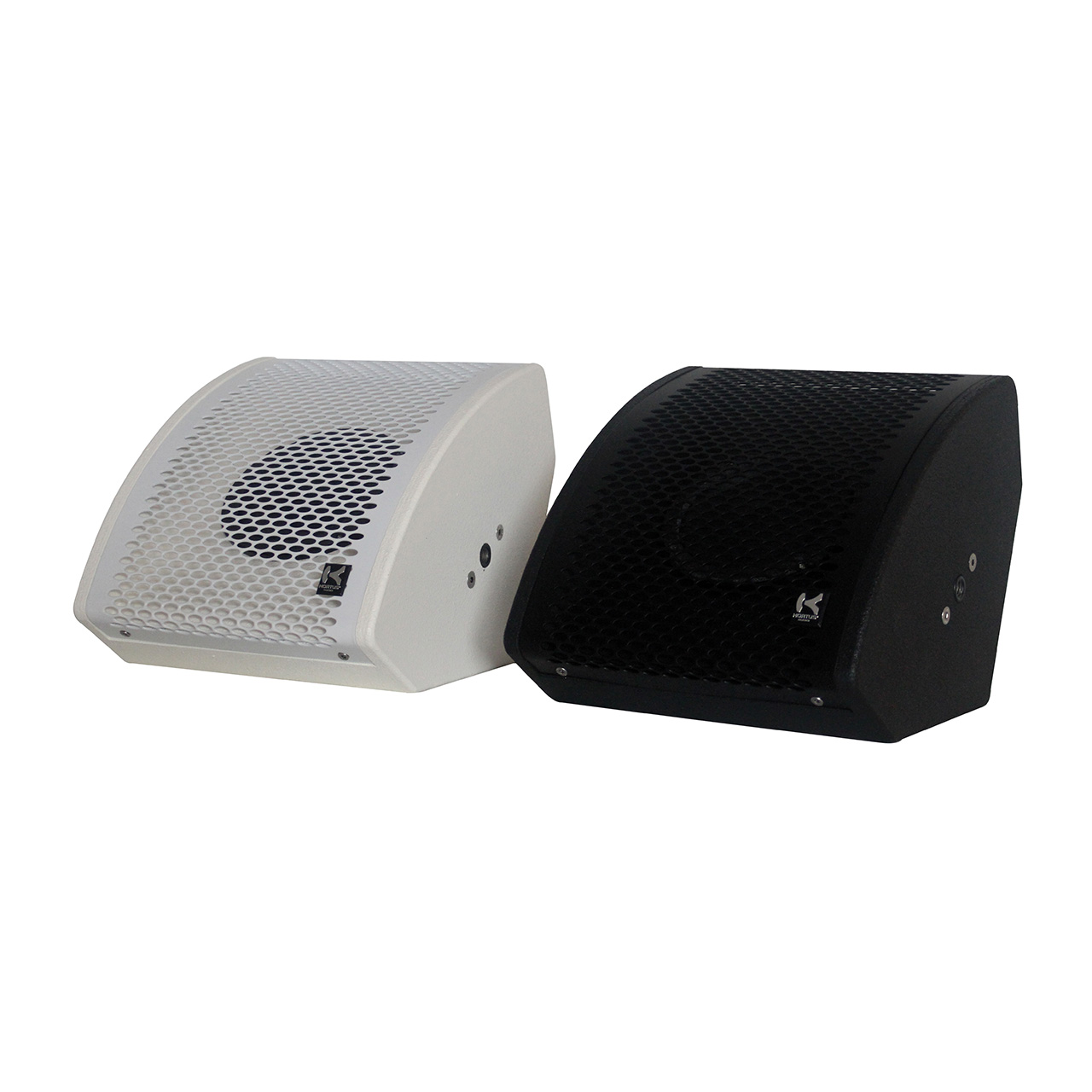

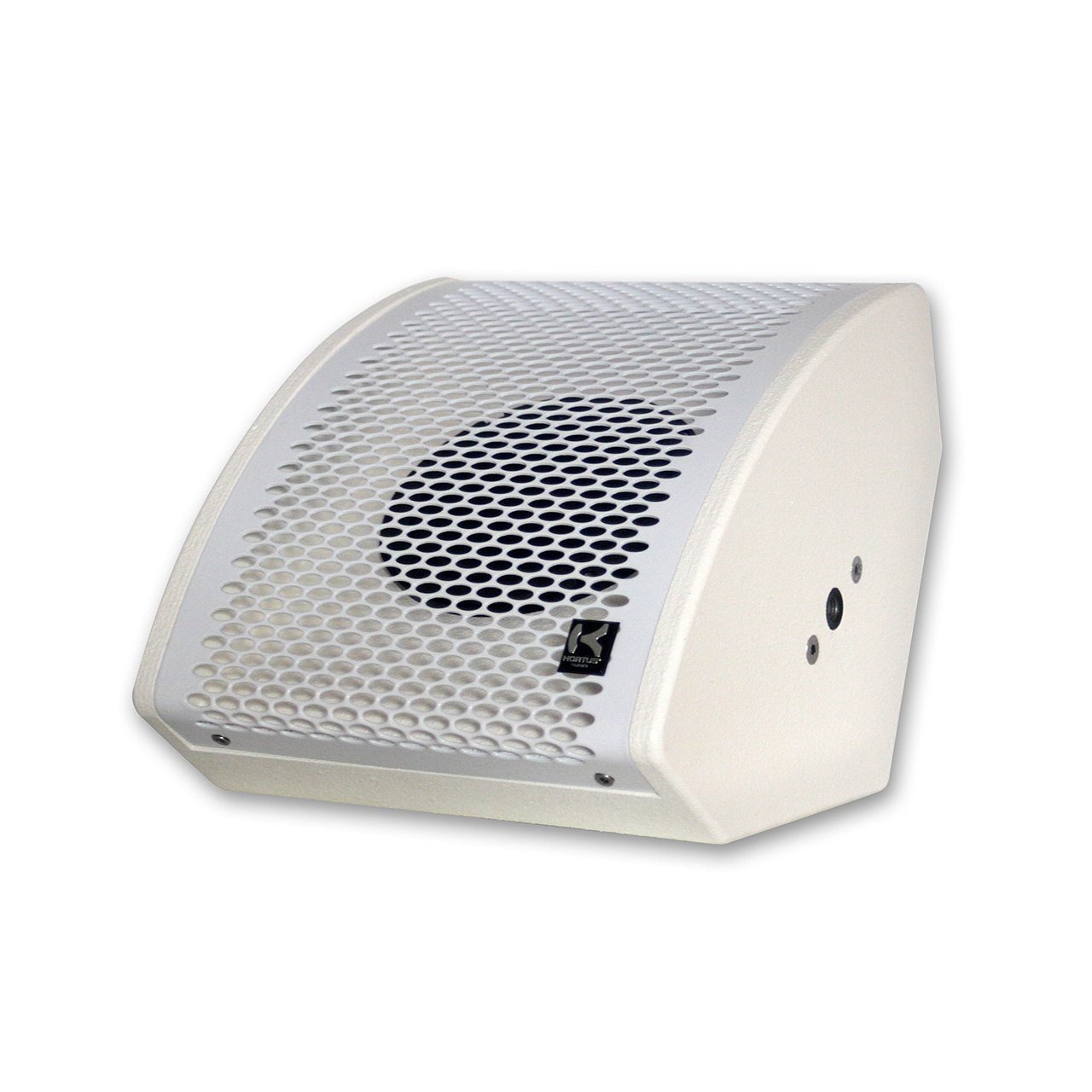

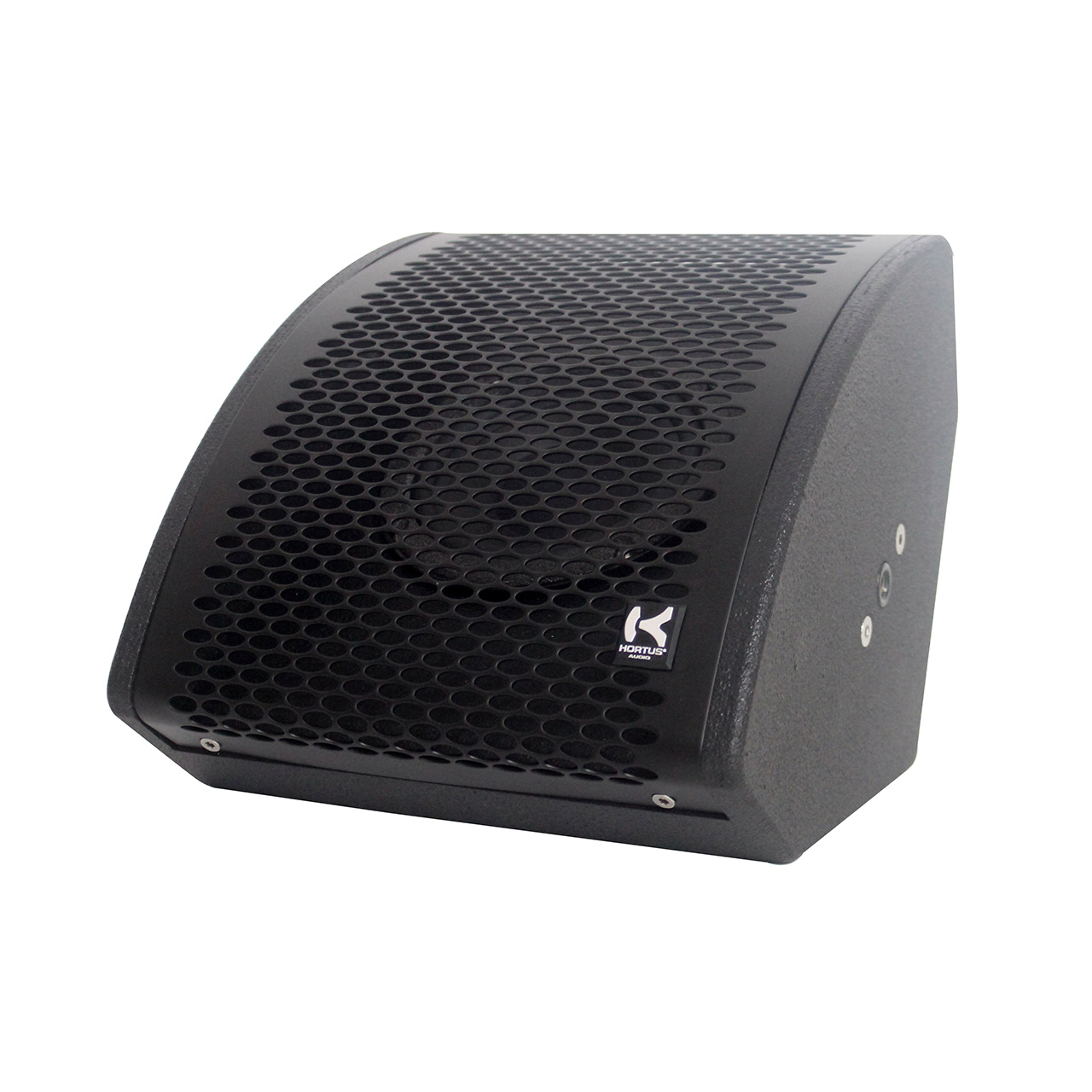

The SAM-5 is a passive 8 ohm floor monitor, which is available in black and white.



Key features

AES Power : 80 W / 8 Ω

Frequency range : 65 Hz – 20kHz

Well-suited for small concerts

Related applications

Specifications

AES Power: 80 W / 8 Ω
Bandwidth (-6dB): 65 Hz to 20 kHz
Sensitivity: 90 dB / 1W @1m
SPL MAX level: 110 dB
Directivity (-6dB): 90° conical

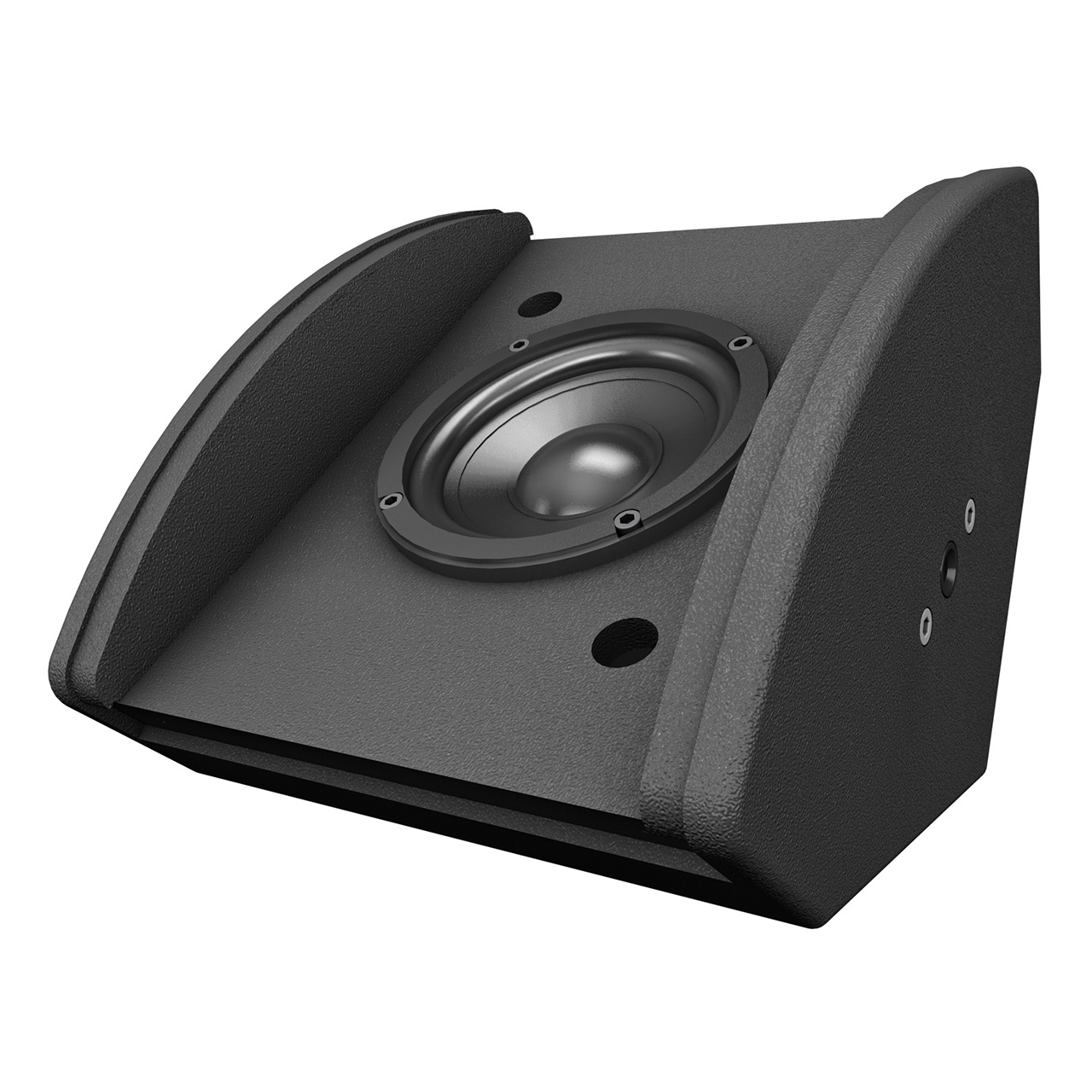

LMF: 1 x 5’’ vented enclosure
HF: 1’’ coaxial compression
Rigging: 2 x M10 inserts

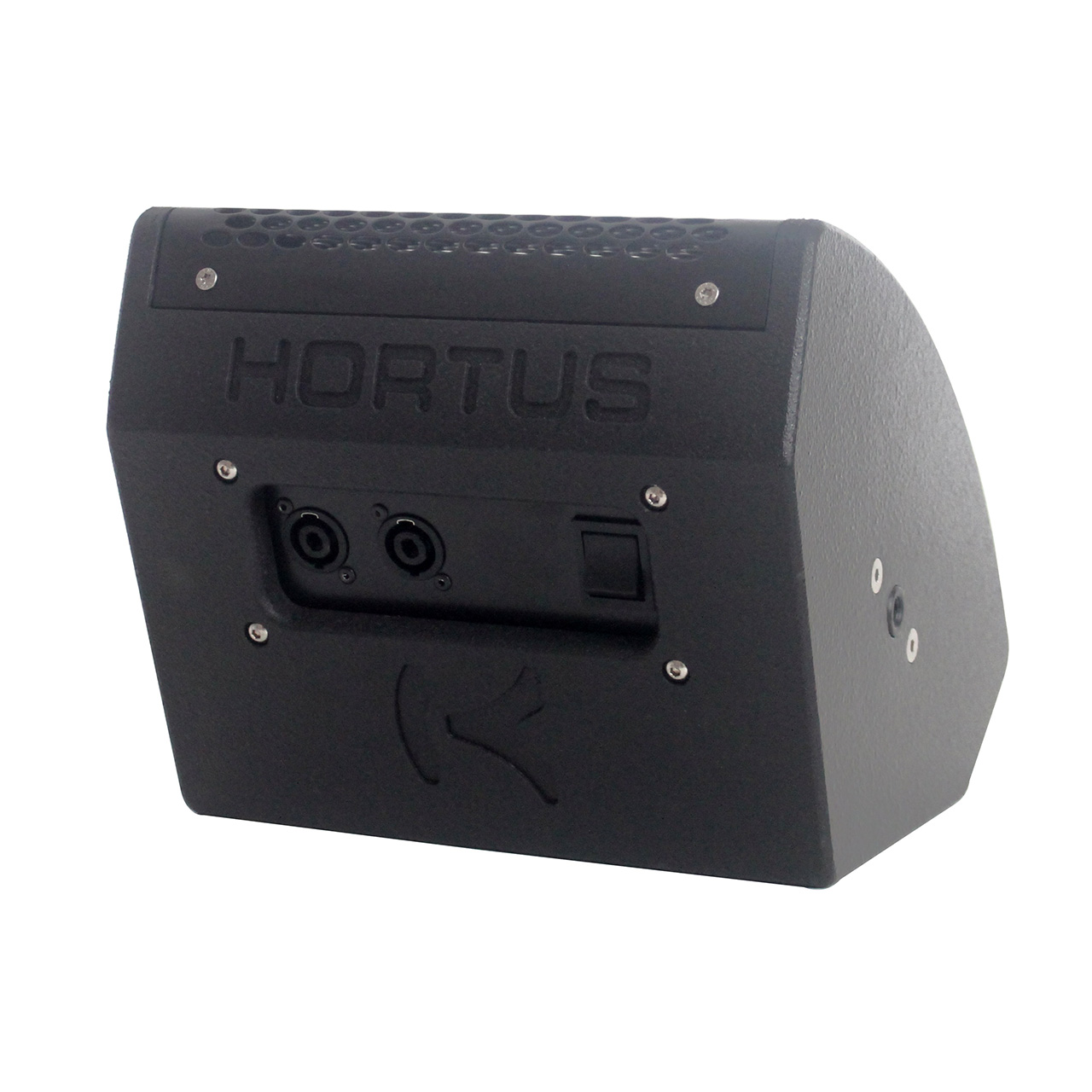

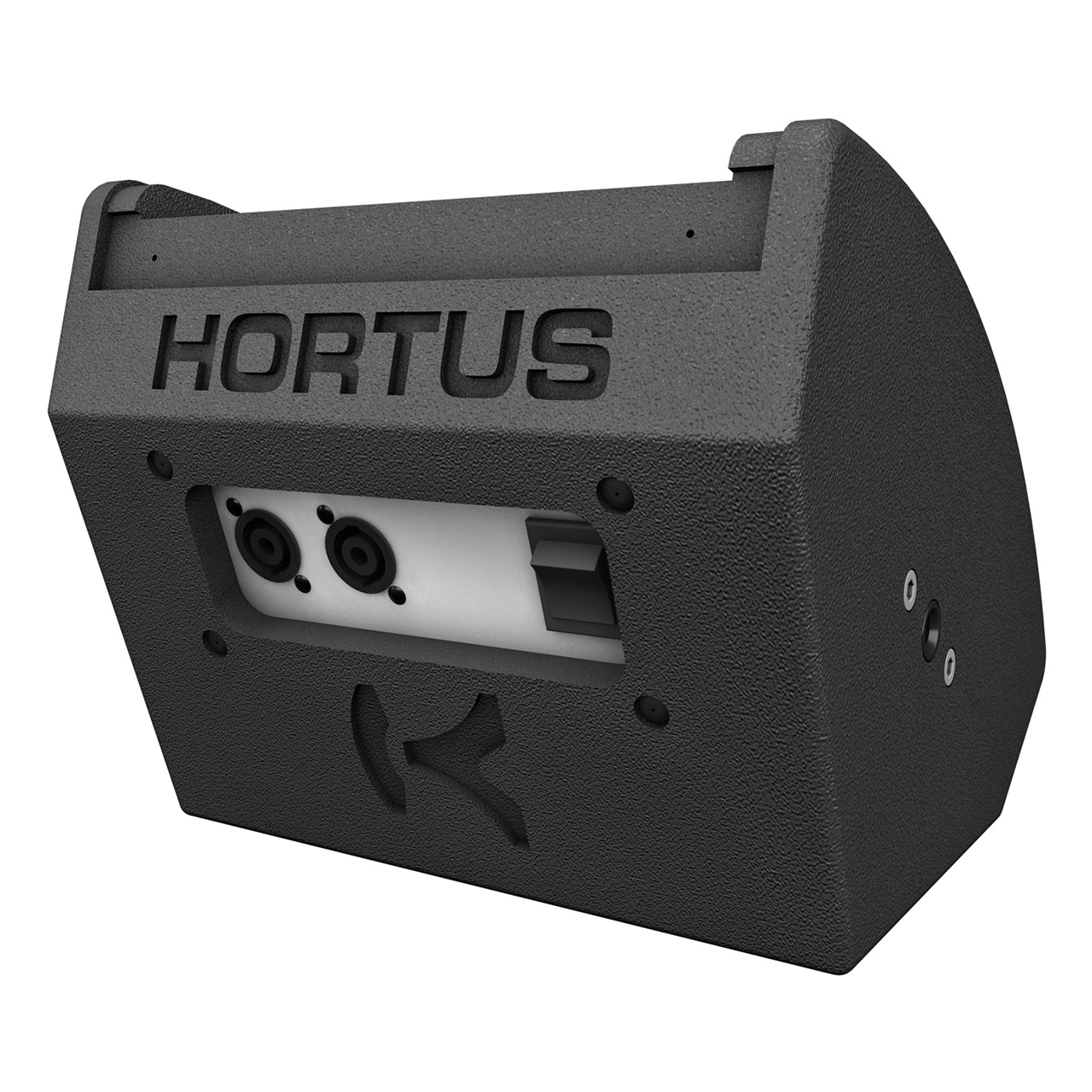

Connections: 2 speakon NL4MP
- 12 mm baltic birch wood
- Finished polyurethane painting
Dimensions: H212 x D259 x W240 mm / 5 kg

Downloads


Available options
SAM5/B Black passive
SAM5/W White passive
