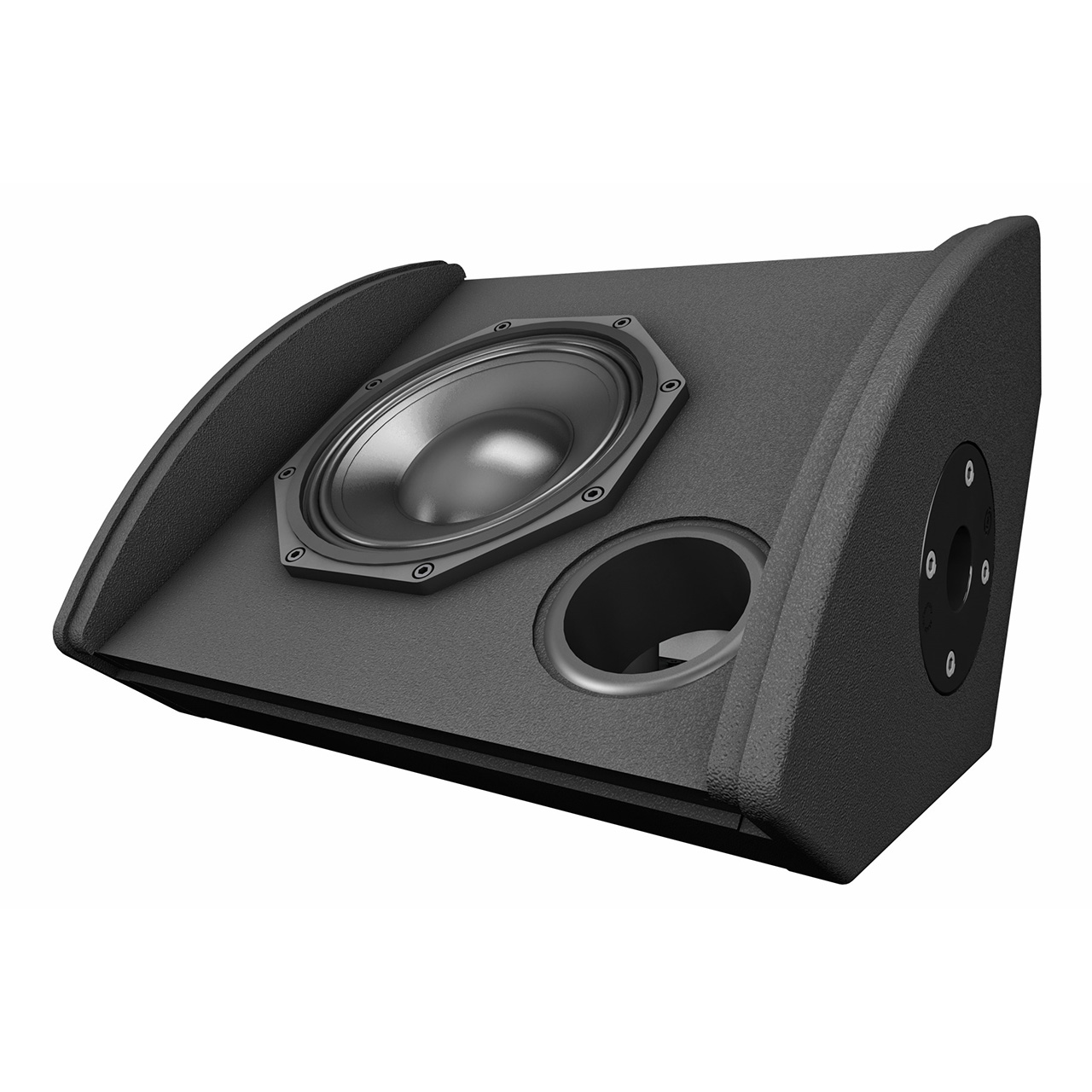

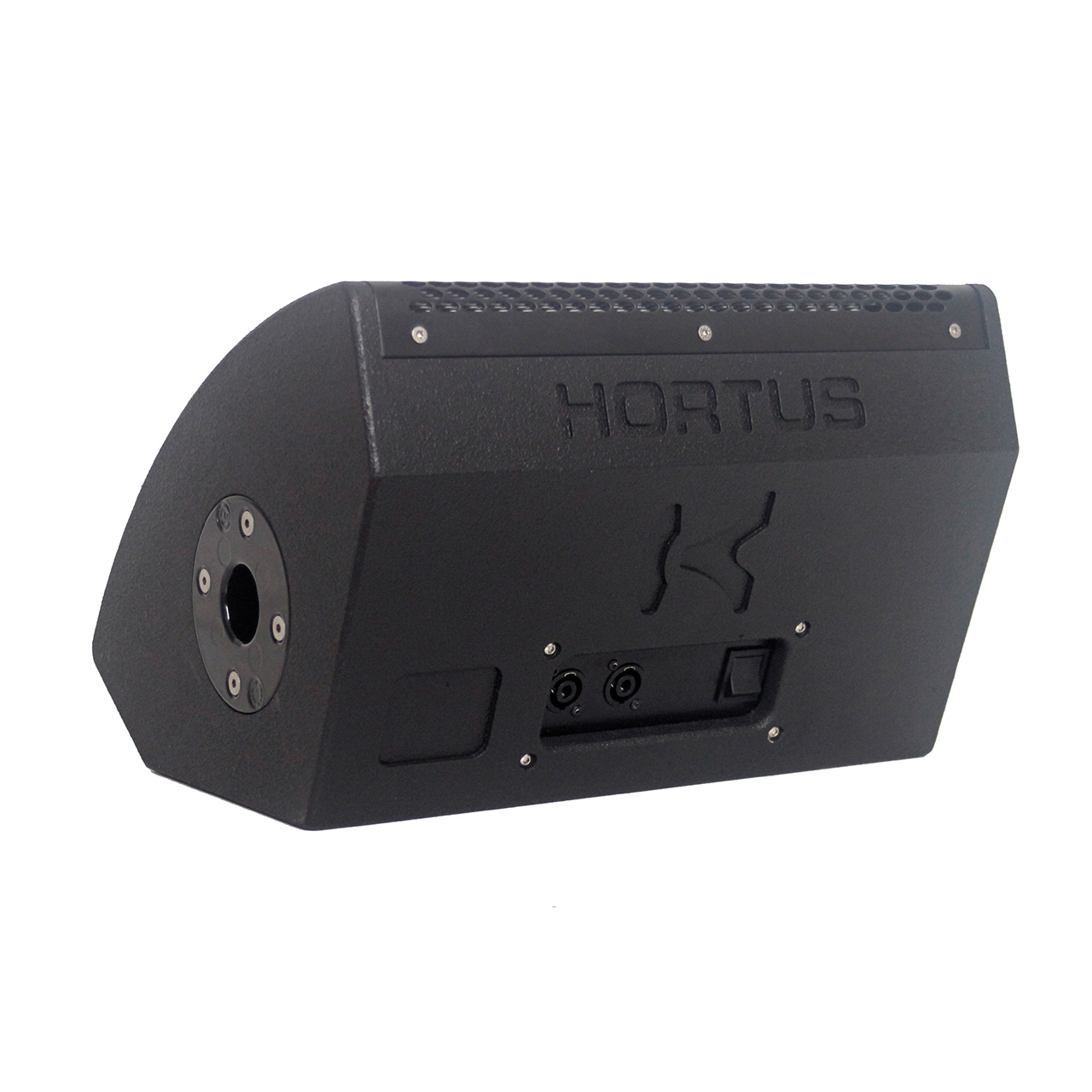

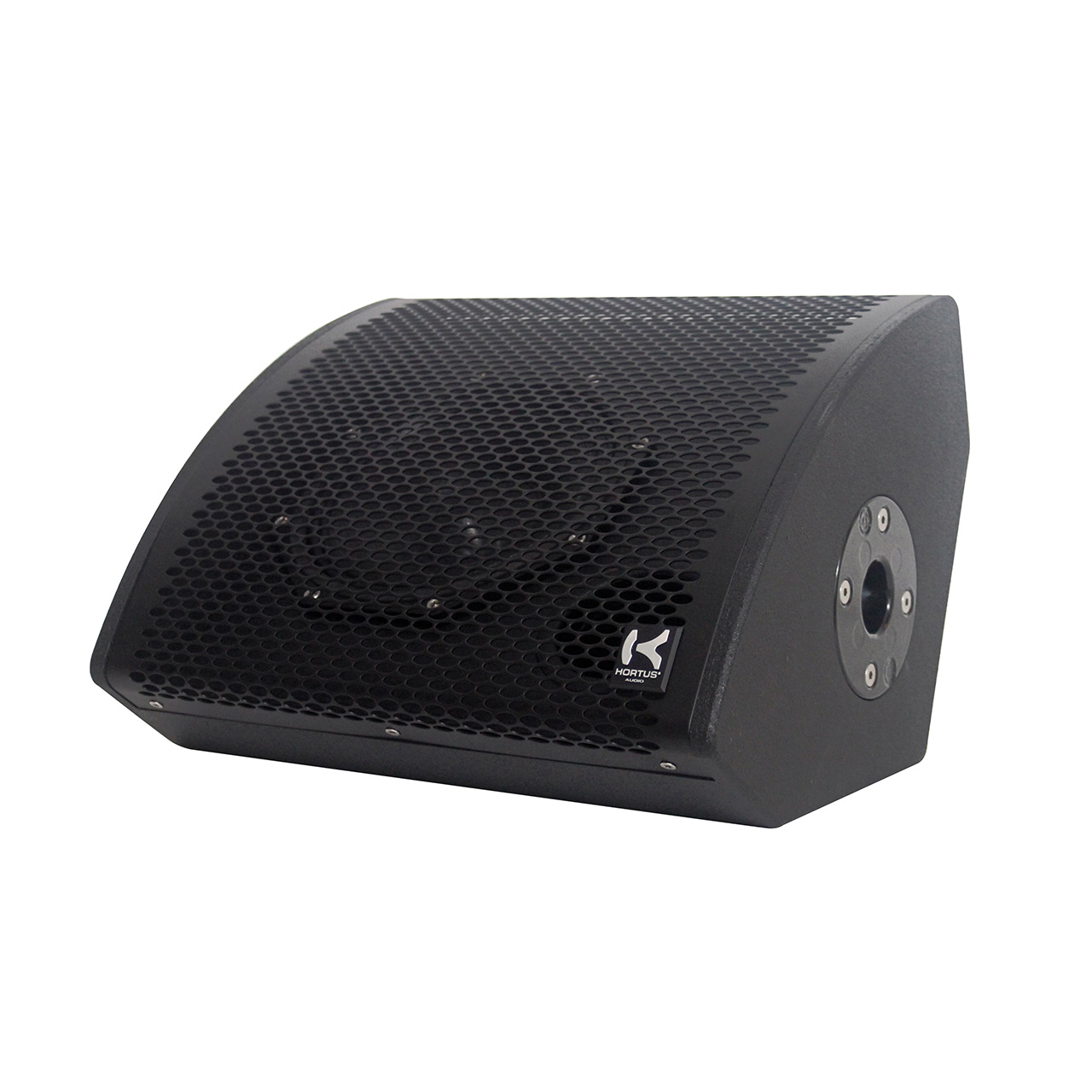

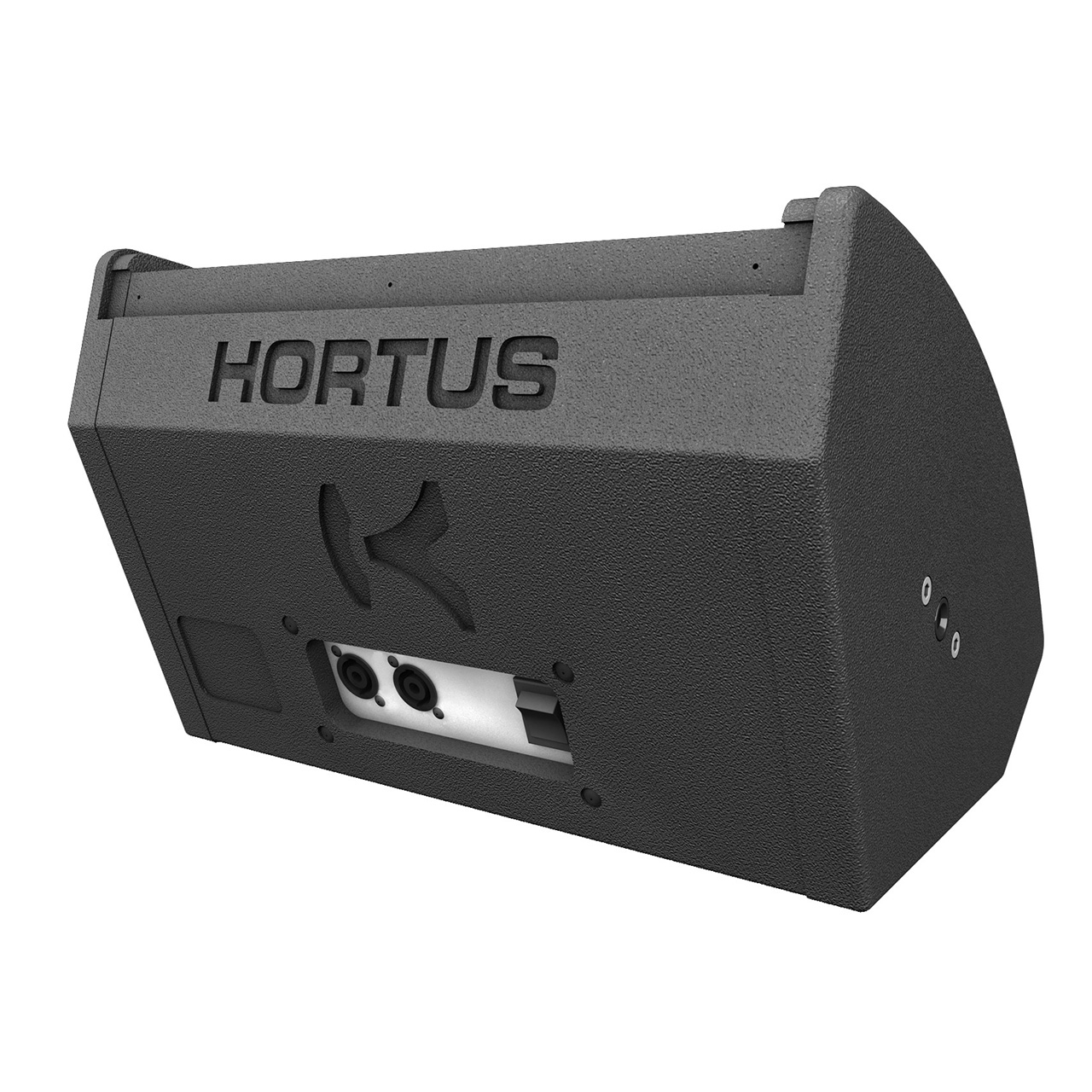

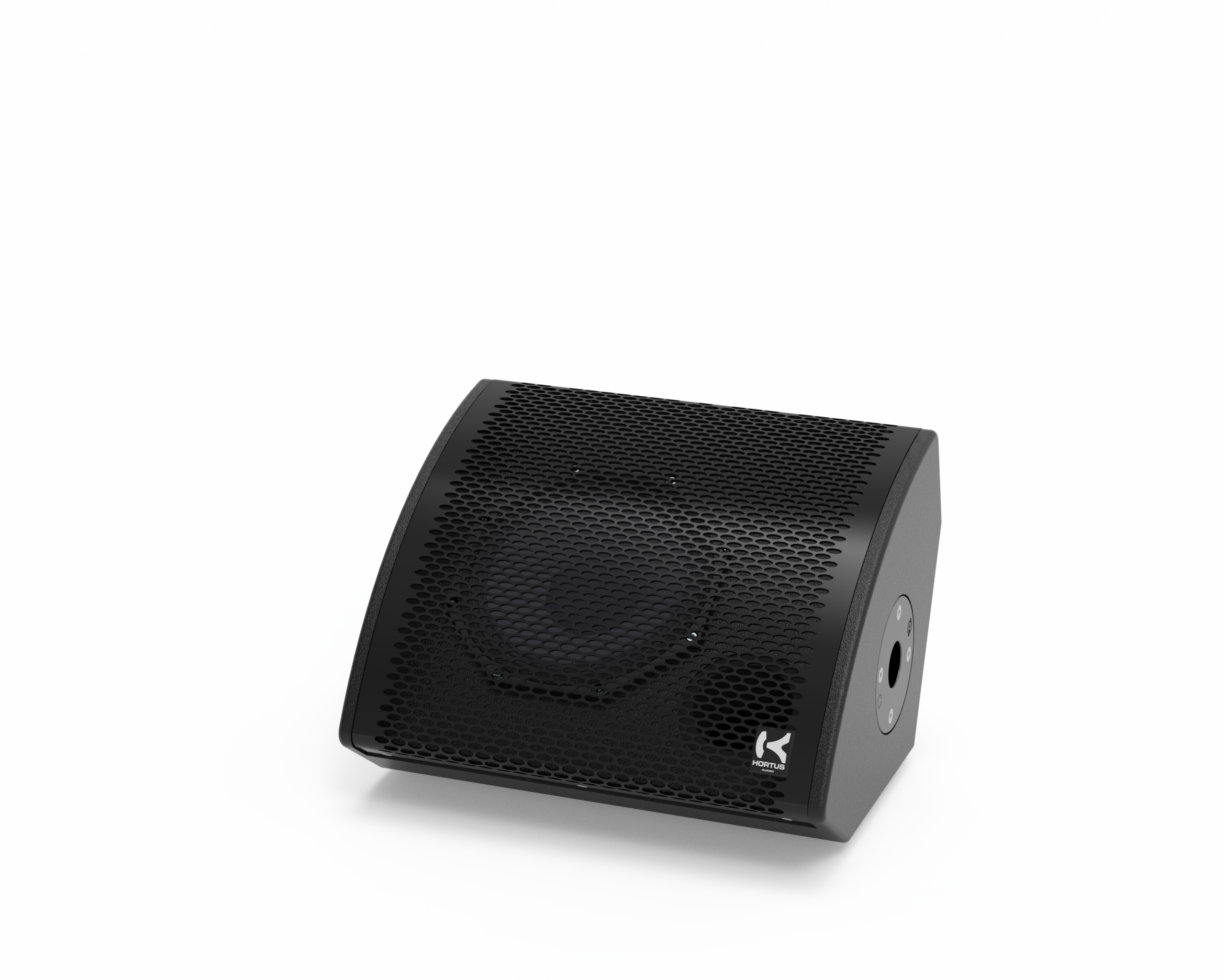

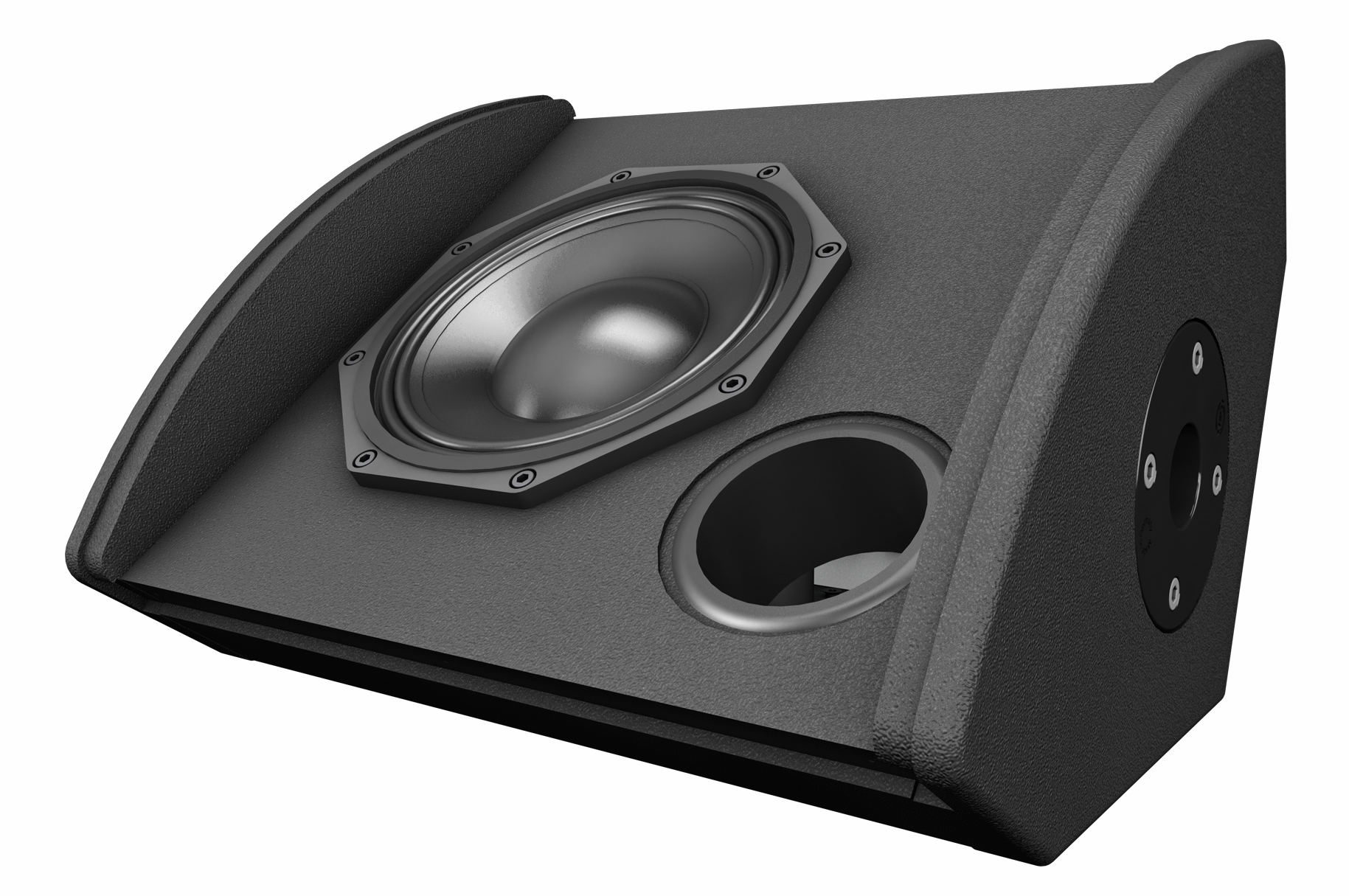

SAM-8

8’’ Coaxial speaker PA system & floor monitor

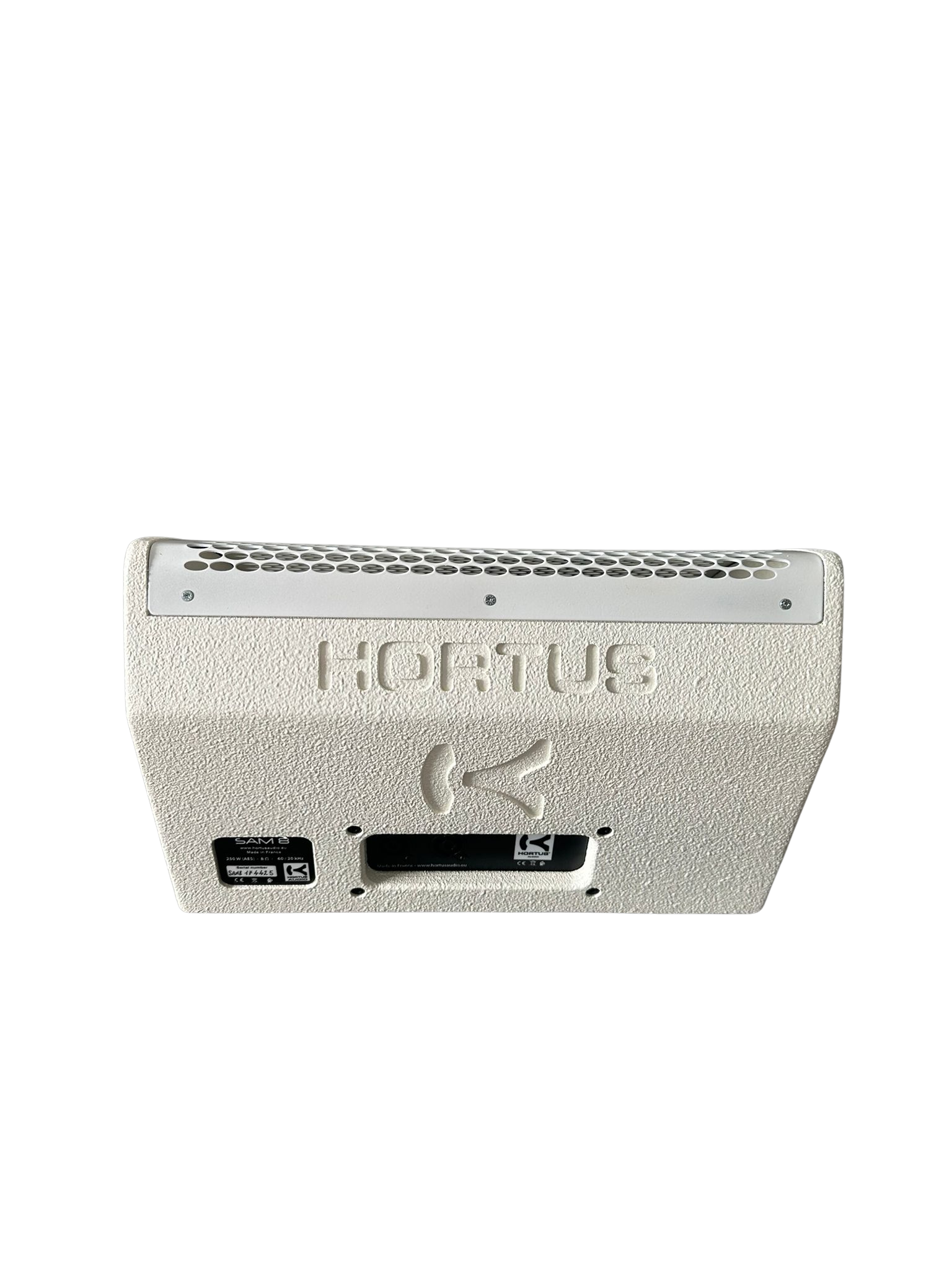

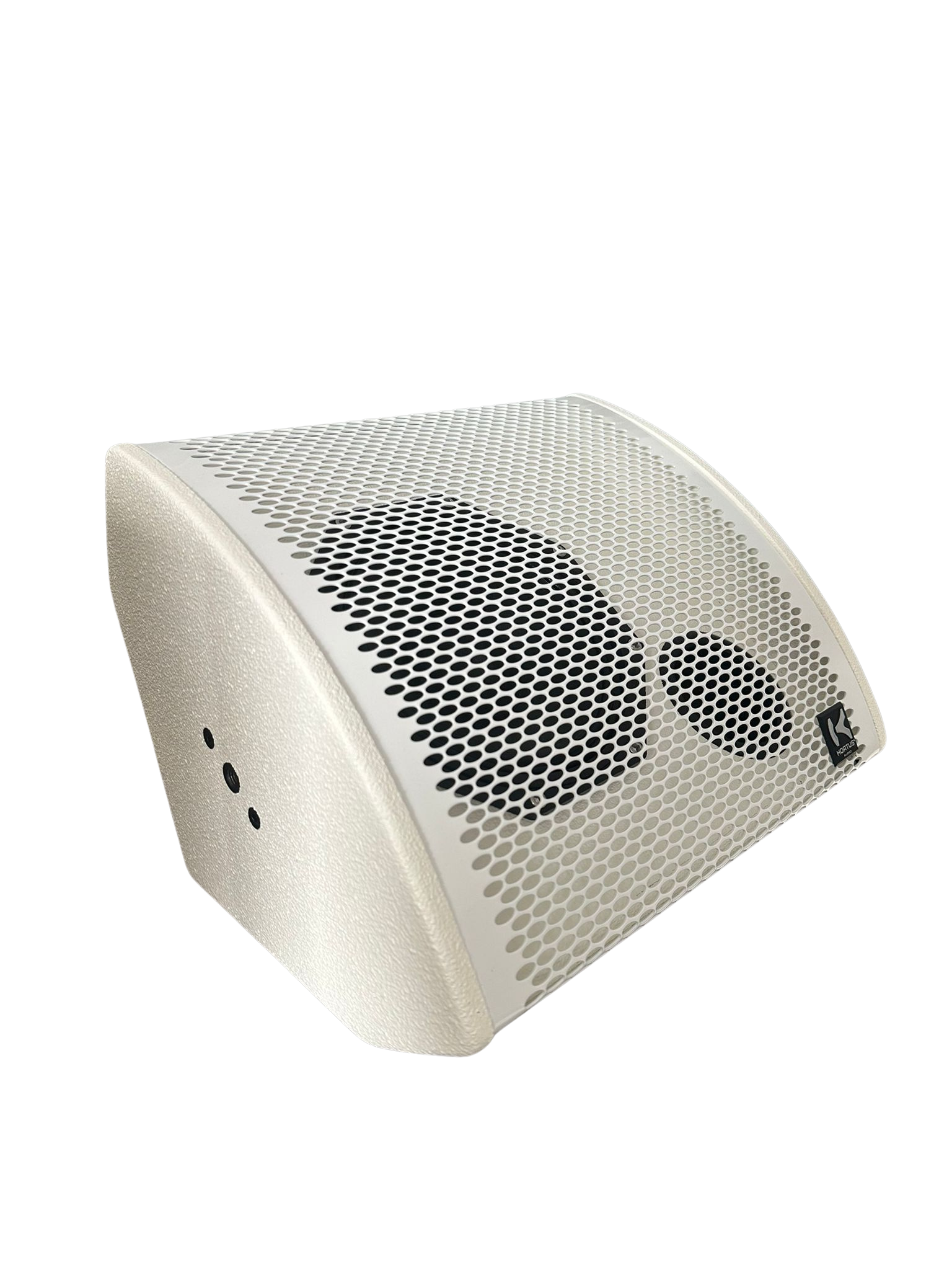

The SAM-8 is a passive 8 ohm floor monitor, which is available in black and white.



Best advantages

AES Power : 250 W / 8 Ω

Frequency range : 70 Hz – 20 kHz

Well-suited for small to medium-sized concerts

Related applications

Specifications

- AES 250 W Power / 8 Ω
Bandwidth (-6dB): 60 Hz to 20 kHz
Sensitivity: 96 dB / 1W @1m
SPL MAX level: 123 dB
Directivity (-6dB): 100° conical
LMF: 1 x 8’’ vented enclosure
HF: 1’’ coaxial compression
Rigging: Insert M10 + Fem. socket ø 35 mm
- 12 mm baltic birch wood
- Finished polyurethane painting
Dimensions: H253 x D310 x W380 mm

Downloads


Available options
SAM8/B Black passive
SAM8/BA Black active
