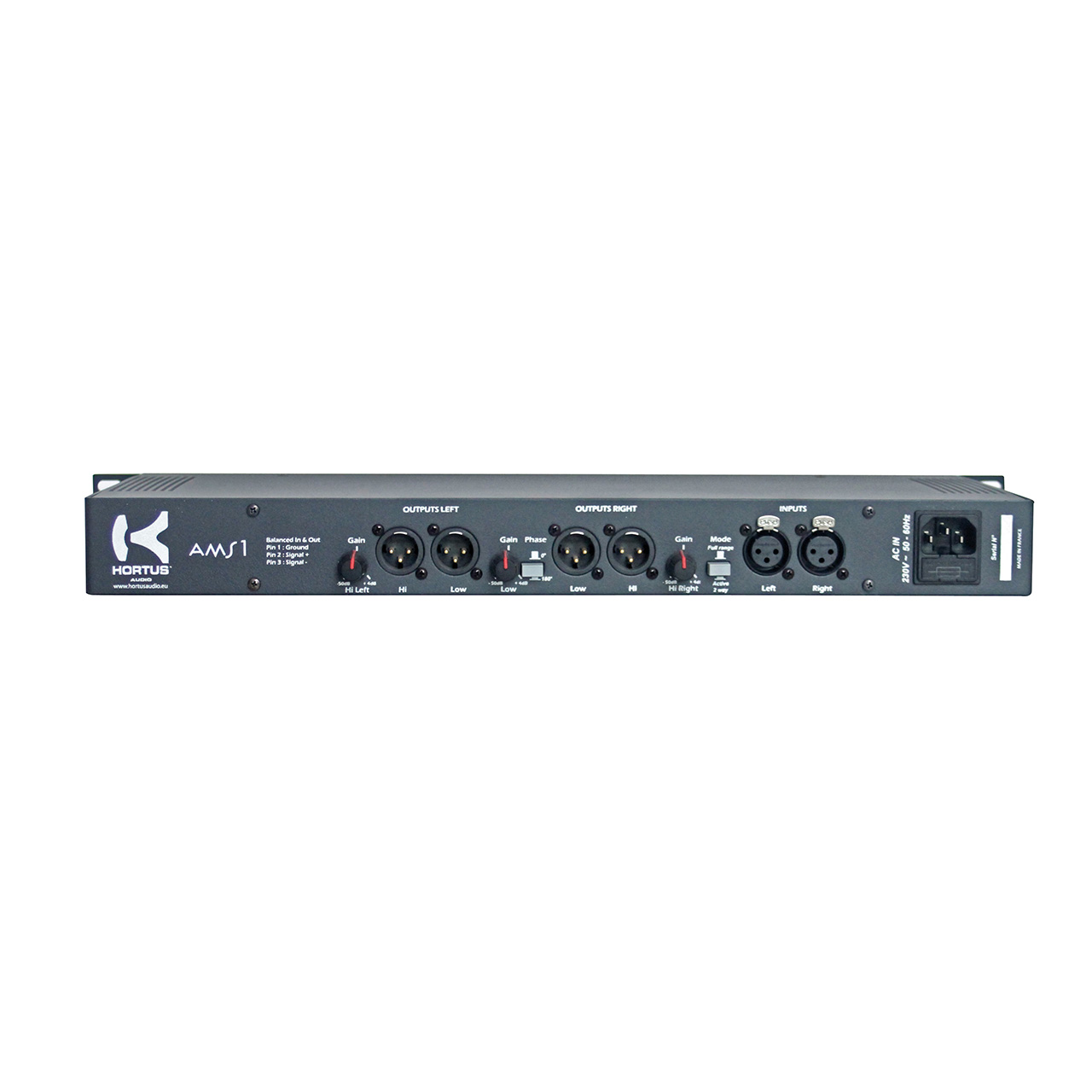

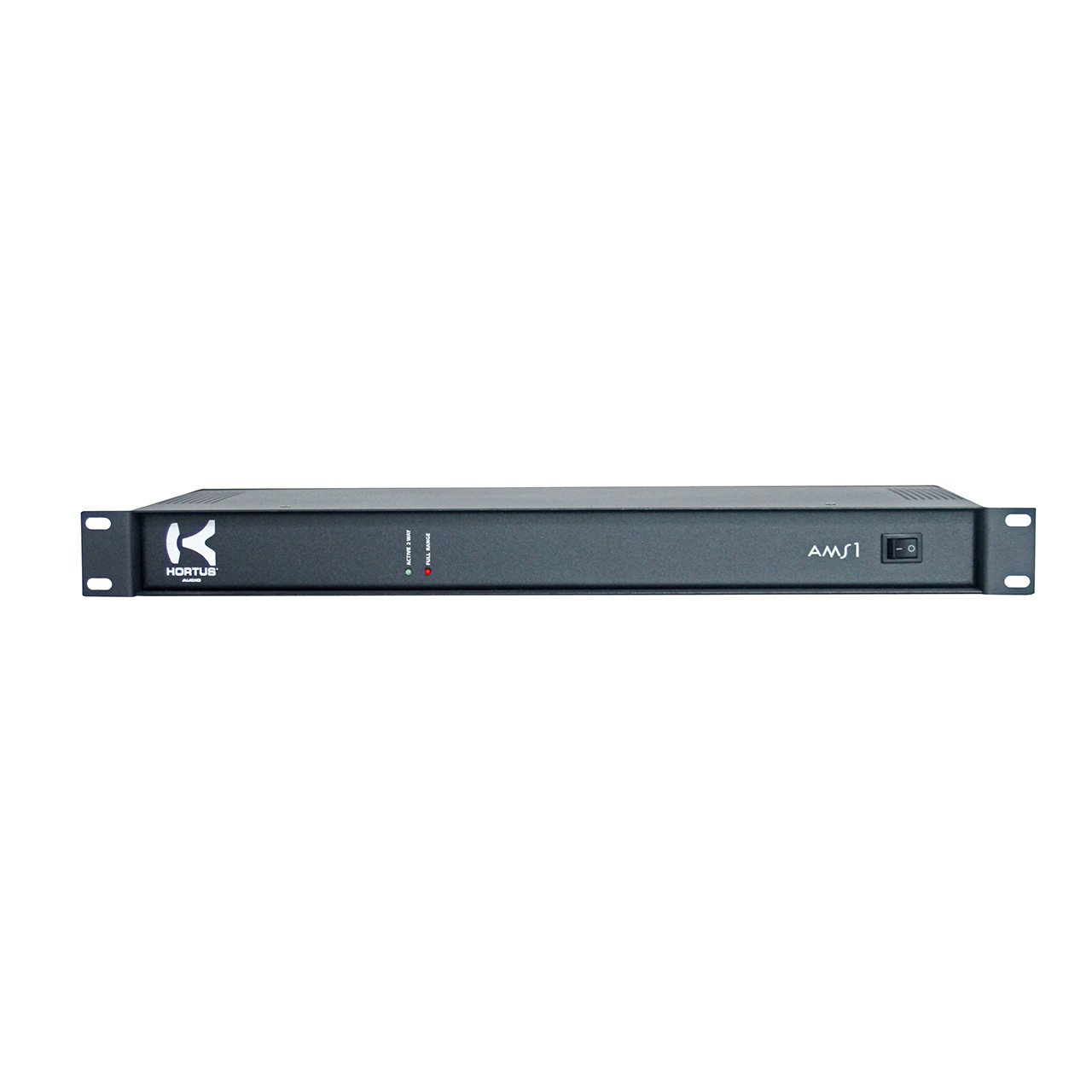

AMS1

ANALOG CONTROLLER
2 INPUTS, 4 OUTPUTS

The AMS1 controller consists of two modes: full range & 2-way active.

The controller’s full range mode is designed to optimise the use of compact speakers in standalone applications without any bass reinforcement.

The 2-way active mode is designed to optimise the performance of 2-way active sound systems such as our Contract Series speakers as well as the S6.1 and MB1.



Key features

Offers both full range & 2-way active modes

Incorporates a sub-sonic filter that eliminates unnecessary cone displacement

Incorporates a gain control on each output & phase invert switches on the bass

Specifications

- Inputs: F balanced electronic XLR - Gain setting on each output - Dynamic range: >95 dB (20 Hz to 20 kHz) - Input impedance: 12 k Ω Sensitivity: 0 dBu
Saturation threshold: + 15 dBu
Outputs: M balanced electronic XLR
Max. output level: +20 dBu @ 600 Ω
Output impedance: 200 Ω
Frequency response: 20 Hz to 20 kHz @ - 3 dB
Crosstalk: > 80 dBu, 20 Hz to 20 kHz
Distortion (DHT): < 0.1% 20 Hz to 20 kHz
- Dim. 19’’/1U, 483W x 44,5H x 105D mm / Wht: 2,54 Kg
Full Range mode: 35Hz to 20 kHz
Active 2-way mode:
Sub: 35 Hz to 120 Hz
Medium / Treble: 120 Hz to 20 kHz
- Phase inversion on bass section

Product compatibility

MB1
