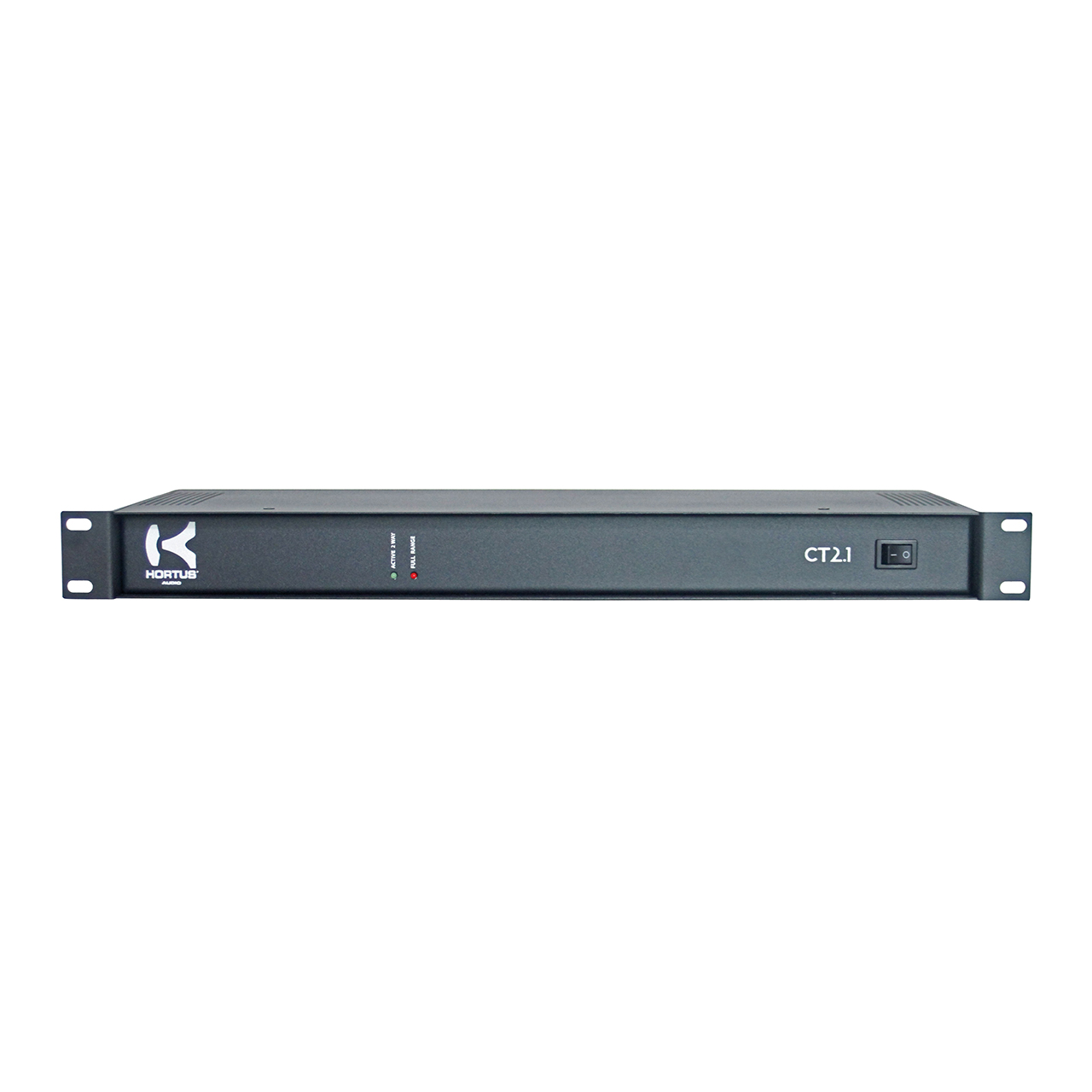

CT2.1

ANALOG CONTROLLER
2 INPUTS, 3 OUTPUTS

The CT2.1 processor is particularly well-suited to our Contract Series. Much like the AMS1, the processor has two operative modes: full range & 2-way active mode, in which Hortus Audio speakers such as the S6.1 can be used with an accompanying bass cabinet.



Key features

An infra low filter is integrated to ensure adaptation to loudspeaker frequency ranges

User-friendly control system

2 x inputs & 3 x outputs

Specifications

Inputs: F balanced electronic XLR
- Gain setting on each output
Dynamic range: >95 dB (20 Hz to 20 kHz)
Input impedance: 12 k Ω
Sensitivity: 0 dBu
Saturation threshold: + 15 dBu

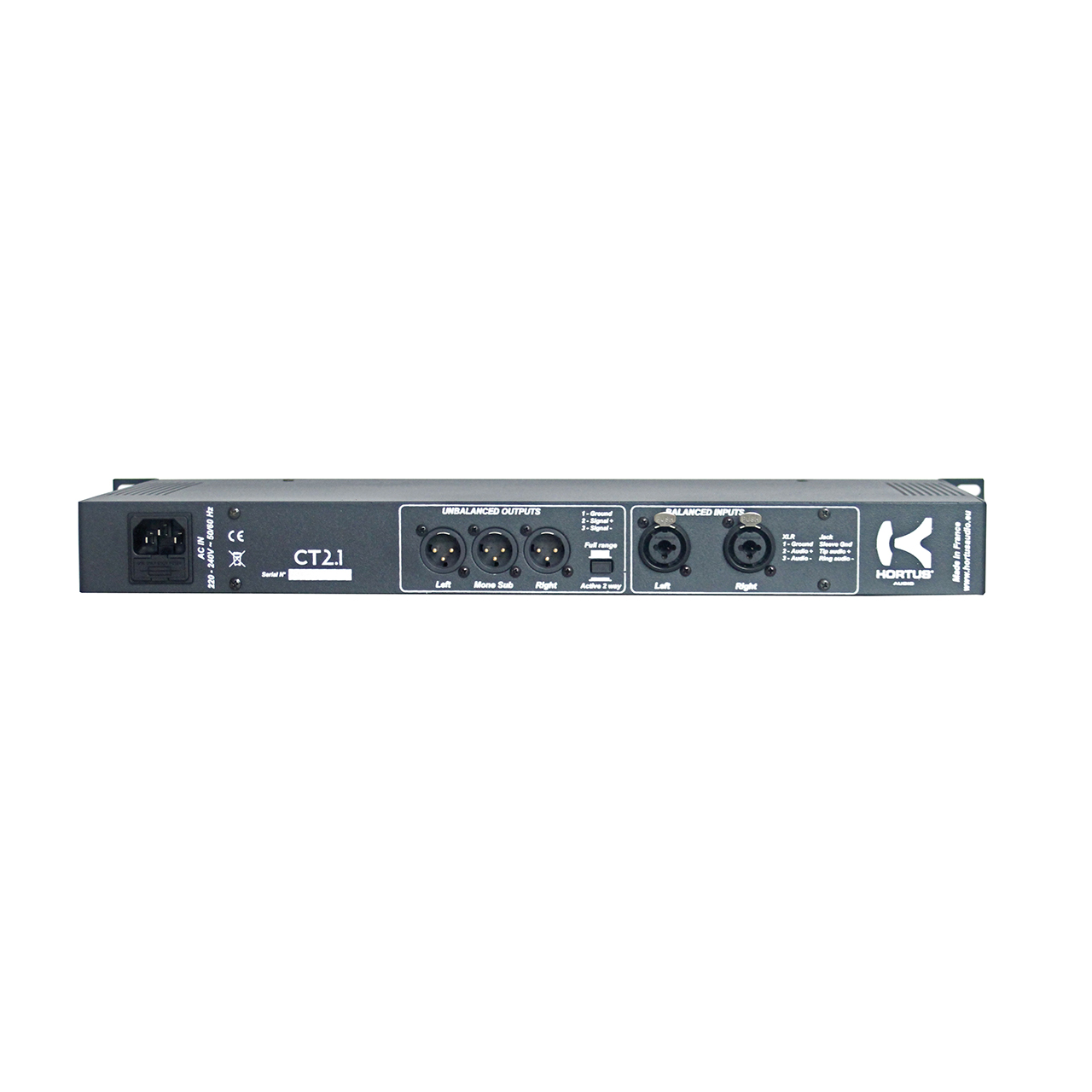

Outputs: M balanced electronic XLR
Max. output level: +20 dBu @ 600 Ω
Output impedance: 200 Ω
Frequency response: 20 Hz to 20 kHz @ - 3 dB
Crosstalk: > 80 dBu, 20 Hz to 20 kHz
Distortion (DHT): < 0.1% 20 Hz to 20 kHz
- Dim. 19’’/1U, 483W x 44,5H x 105D mm / Wht: 2,54 Kg
Full Range mode: 35Hz to 20 kHz
Active 2-way mode:
Sub: 35 Hz to 120 Hz
Medium / Treble: 120 Hz to 20 kHz
- Phase inversion on bass section
