CBA10

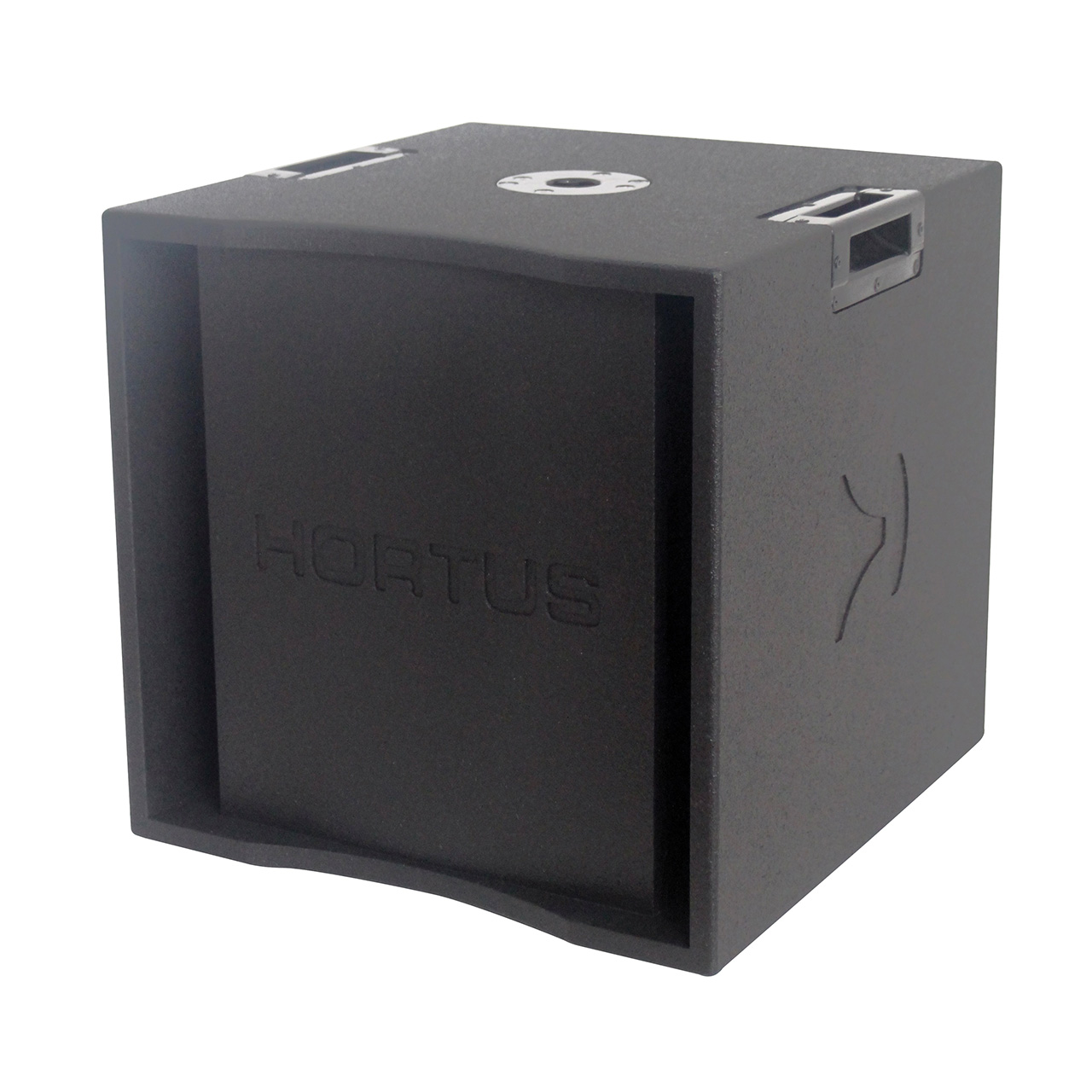

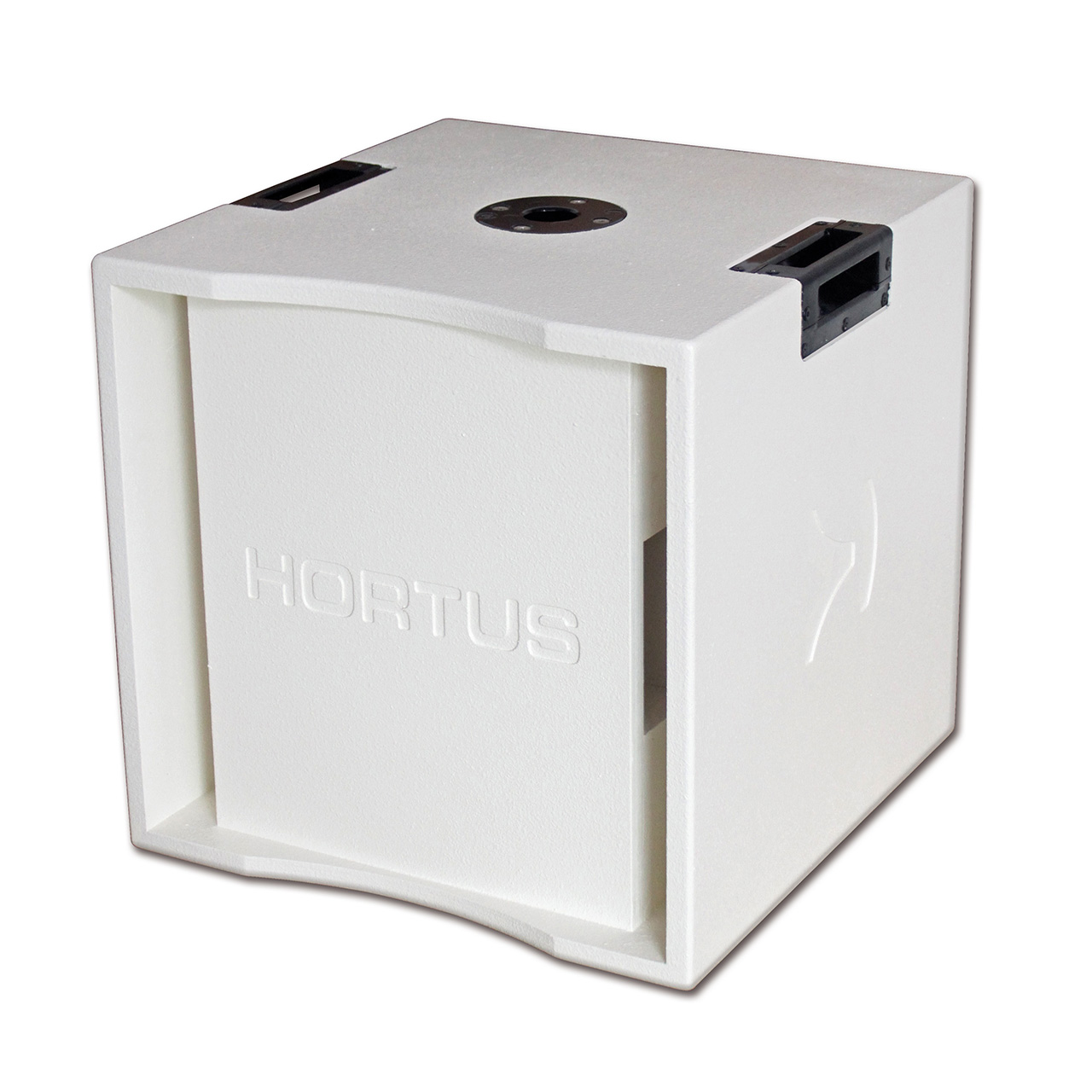

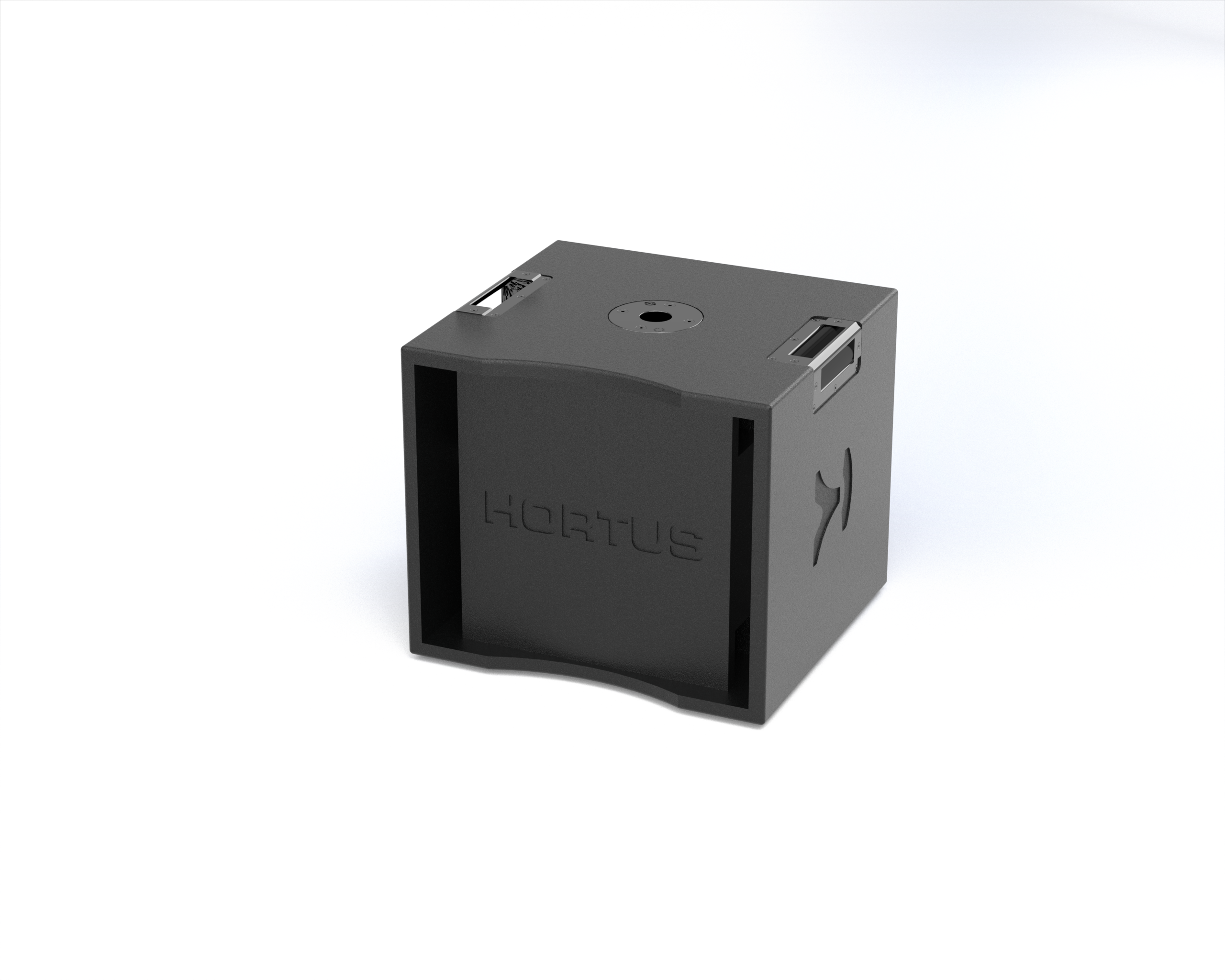

CBA10 bass cabinet

Key features

Available as a passive version as well as mono and stereo amplified versions

Well-suited to small concerts

Bandwidth: 55 Hz to 220 Hz



Amplified Versions

– Power: 2 x Powercon In/Out
– Pascal Audio amplifier
– «All DSP» with ethernet



Related applications

Large Congregations

residential

Residential

stadium-sport-venues

Stadium & Sport Venues

restaurants-cafes

Restaurants & Cafes

hotels-resorts

Hotels & Resorts

Nightclubs & Lounges

Nightclubs & Lounges

auditoriums-concert-halls

Auditorium & Concert Halls

Specifications

LF: 1 x 10” band pass 6th order enclosure
Bandwidth (-6dB): 55 Hz to 220 Hz
Directivity: 180° cardioid
Rigging: 1 socket for tube M20
18 mm baltic birch wood
Dim. H377 x D400 x W430 mm / Wht: 20 Kg


Available options
CBA10P - Passive
350 W AES / 8 Ω / Speakon 4 pts.
CBA10M - Mono amplified
2-way 750 W + 250 W + DSP
CBA10S - Stereo amplified
3-way 750 W + 2 x 250 W+ DSP

Product compatibility

CLA85

CLA88

Q5

Downloads

Datasheet

High res.

Accessories
