CLA168

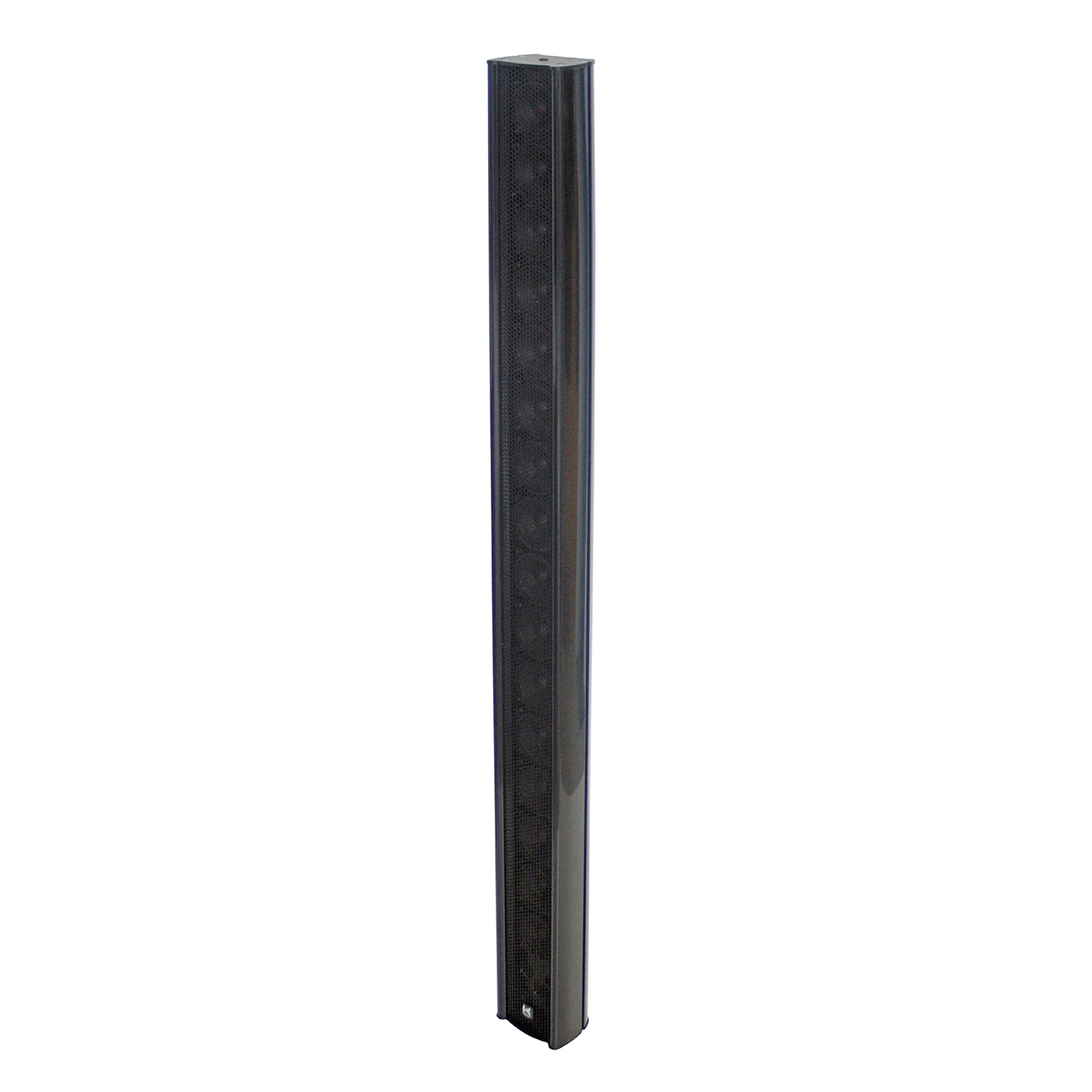

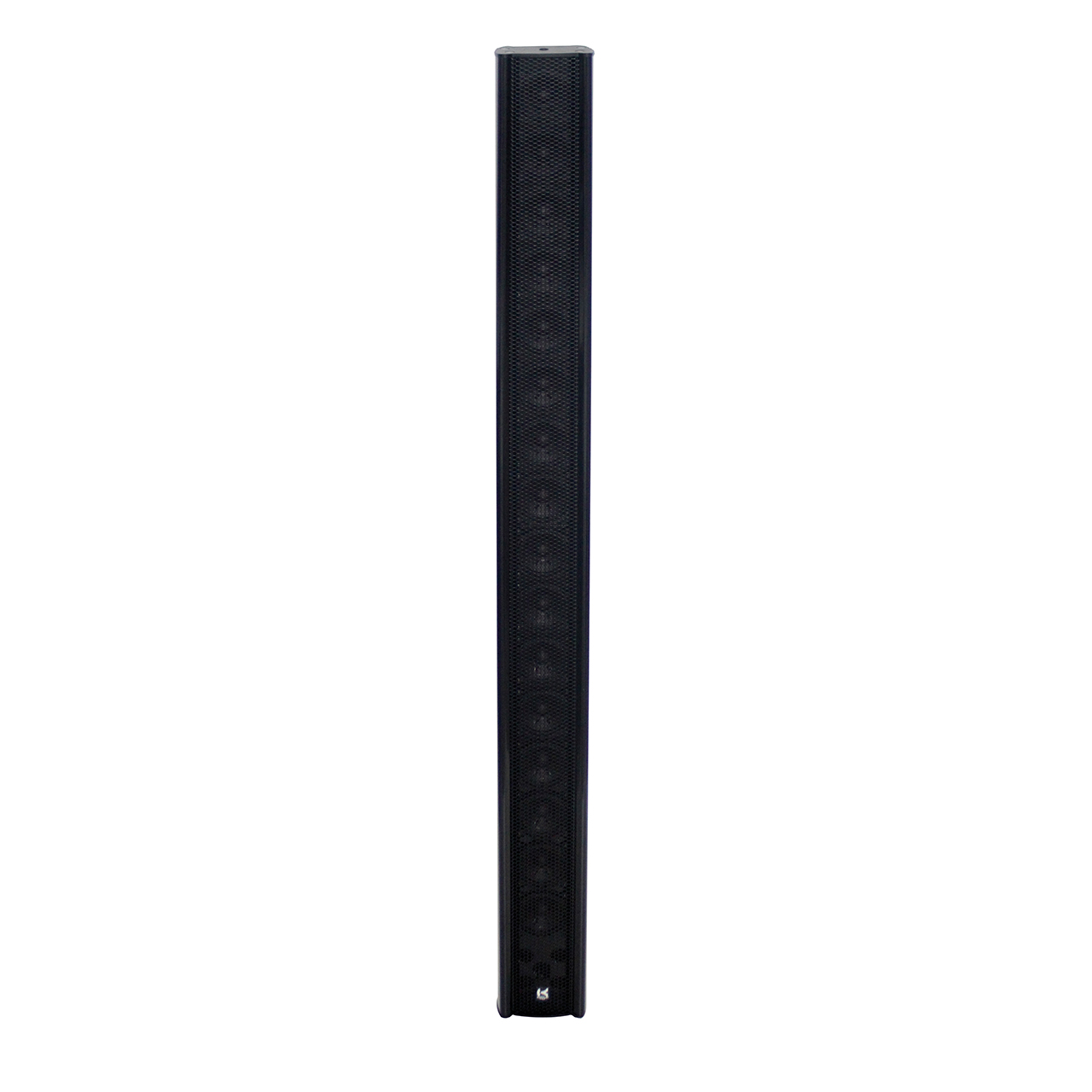

The 700W CLA168 is a loudspeaker that uses 1 x phoenix & 2 x speakon connectors. With 16 x 3′ loudspeakers, it works particularly well with our CBA12, especially in major concert halls. The CLA168 weighs 8.4 kg with a height of 1 metre 47 cm.



Key features

Integrated DSP

Directivity (-6dB): 20° V 100° H

Available in 4 as well as 16 ohms





Related applications

Specifications

Common technical specifications for the columns:
- Bandwidth (-6dB): 180 Hz to 18 kHz
- Made of extruded aluminium + aluminium sheets
- Black or white powder coated
- 4 fixing points on the rear for a wall mount (optional)
- 1 fixing point for safety cable
- 2 fixing points M10 (top & bottom)

CLA168
16 x 3”Loudspeaker column
- 700 W / 8 Ω (preset DSP)
(4 or 16 Ω upon request)
- Directivity (-6dB): 30° V
- Connections: 1 Phoenix + 2 Spk
- Dim. H1470 x D87 x W123 mm
- Wht: 8.4 kg
