CLA810

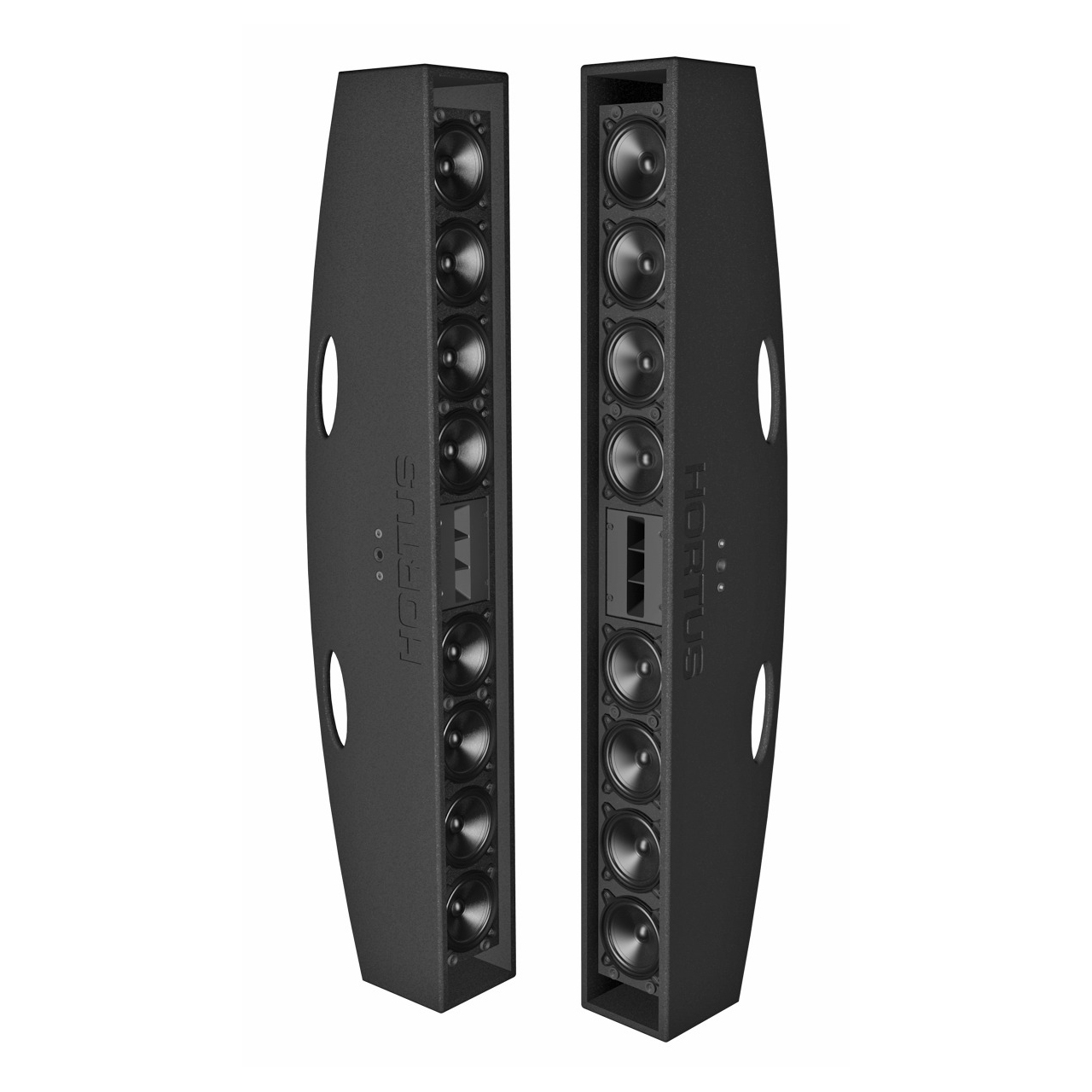

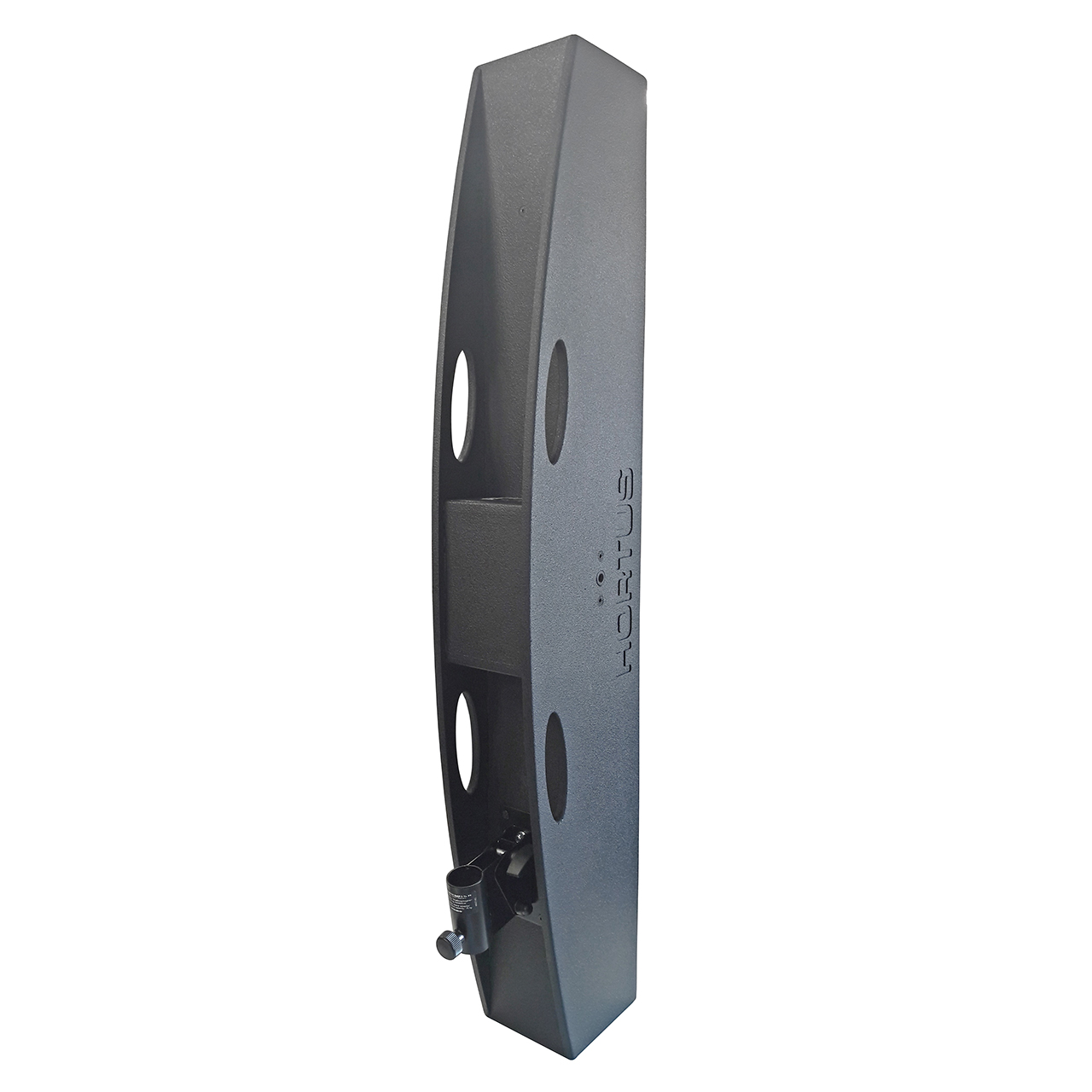

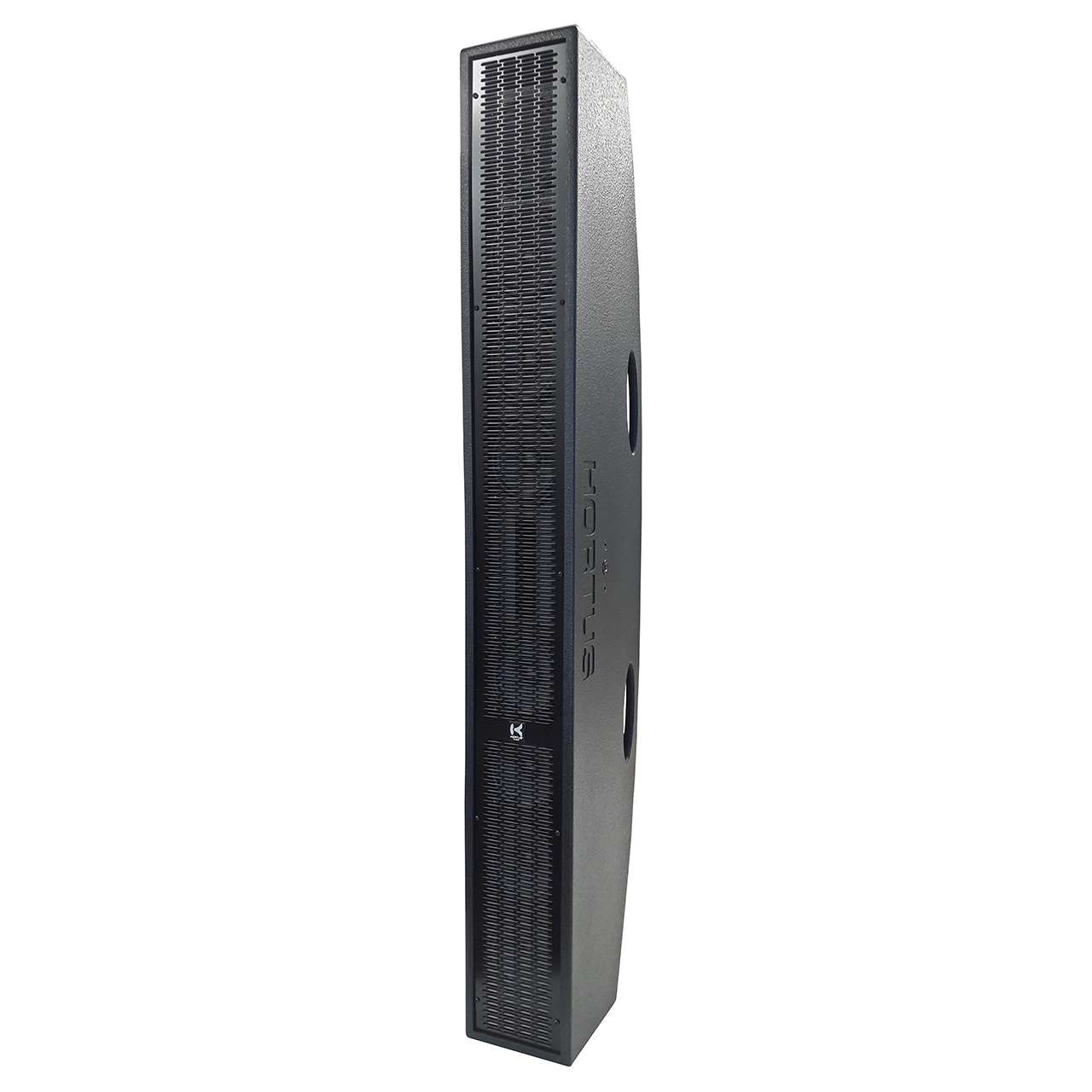

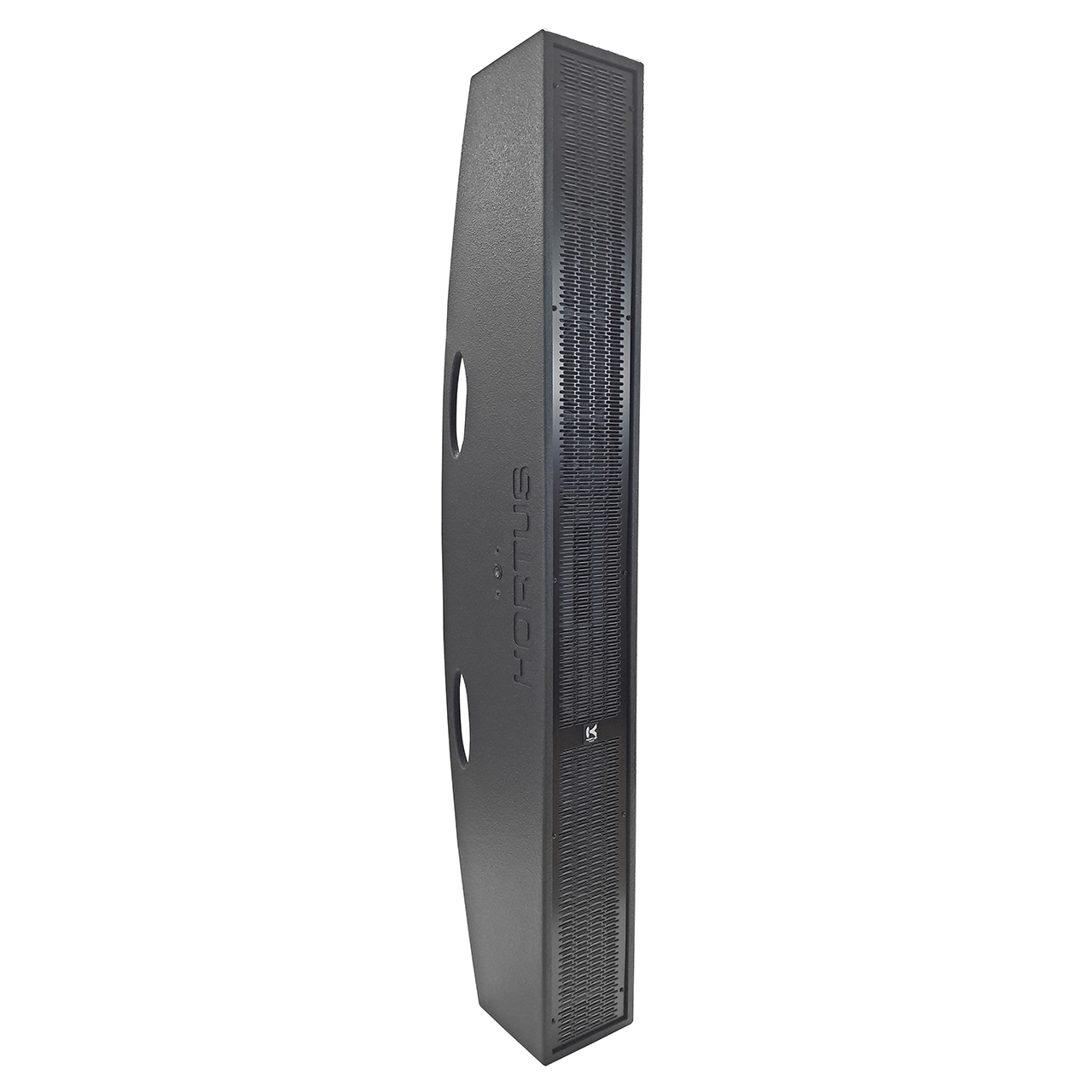

The 500W CLA810 is a loudspeaker column that uses a speakon connection. With 8 x 4′ loudspeakers, it works particularly well with our CBA15 in acoustic environments such as auditoriums, clubs, concerts, conferences, government functions, and theatres. The CLA810 weighs 10 kg with a height of 1 metre 9 cm.



Key features

Integrated DSP

Directivity: 120° H x 25° V

Frequency response (-3dB): 140 Hz-18 kHz





Related applications

Specifications

Common technical specifications for the columns:
- Bandwidth (-6dB): 180 Hz to 18 kHz
- Made of extruded aluminium + aluminium sheets
- Black or white powder coated
- 4 fixing points on the rear for a wall mount (optional)
- 1 fixing point for safety cable

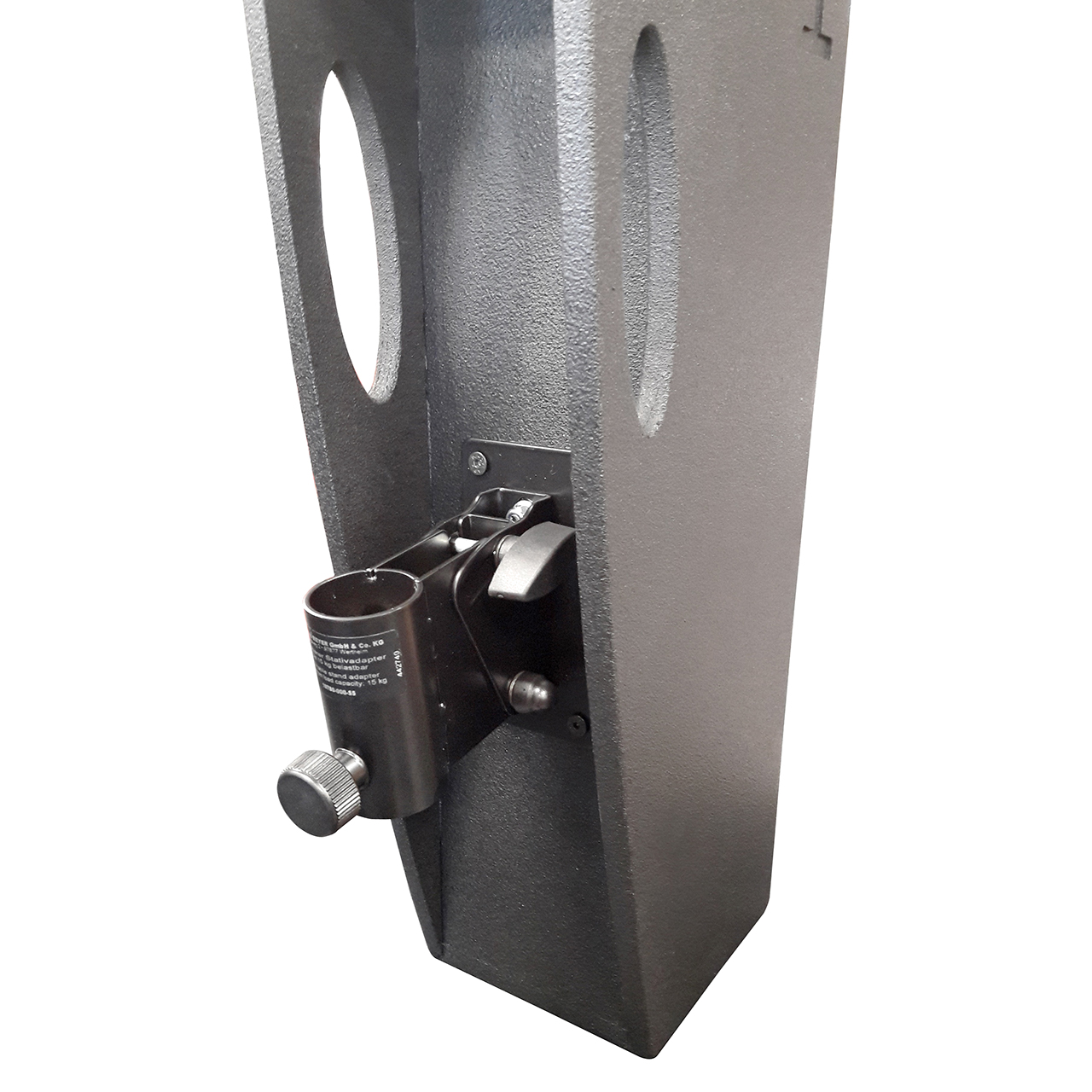

- 2 fixing points M10 (top & bottom)

CLA180
8 x 4” Loudspeaker Column + compression 1’’
- 500 W / 8 Ω (preset DSP)
- Freq. Response (-3dB): 140 Hz-18 kHz
- Baltic birch wood
- Directivity: 120° H x 25° V
- Finished polyurethane painting
- H1090 x D220 x W134 mm / 10 Kg

Product compatibility

Downloads
