CBA15

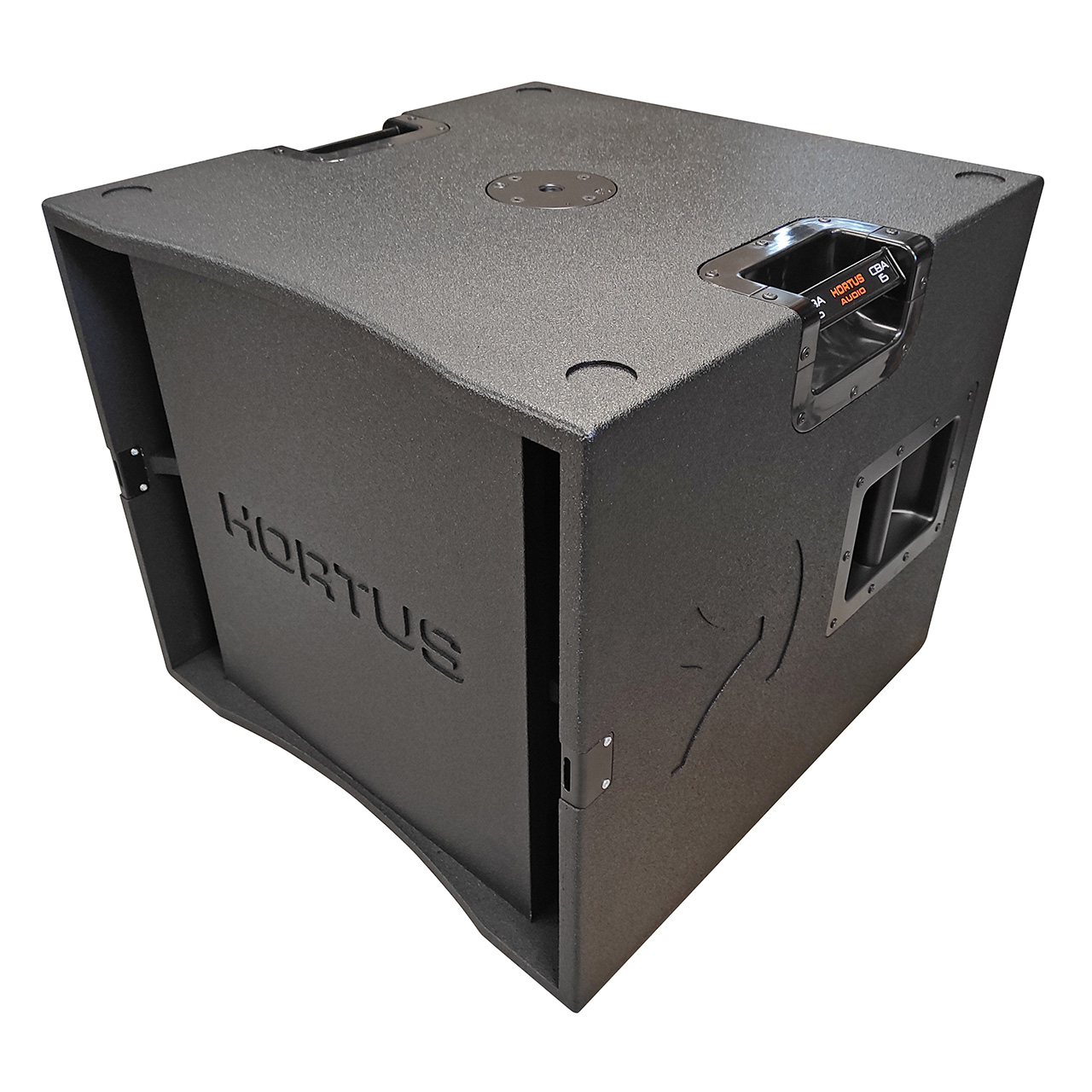

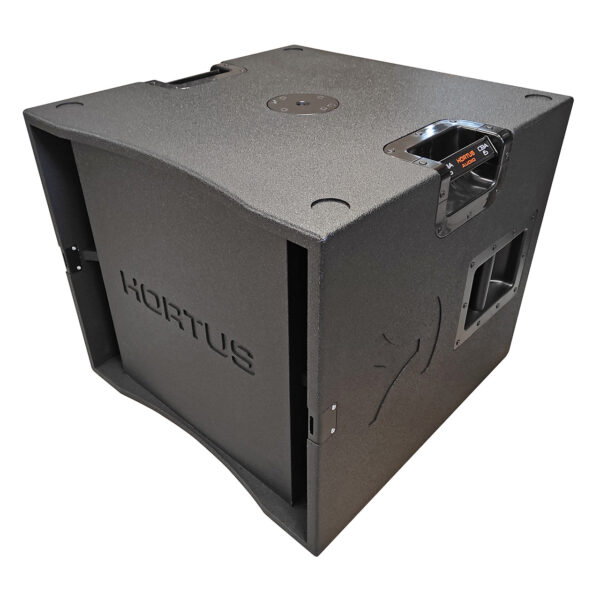

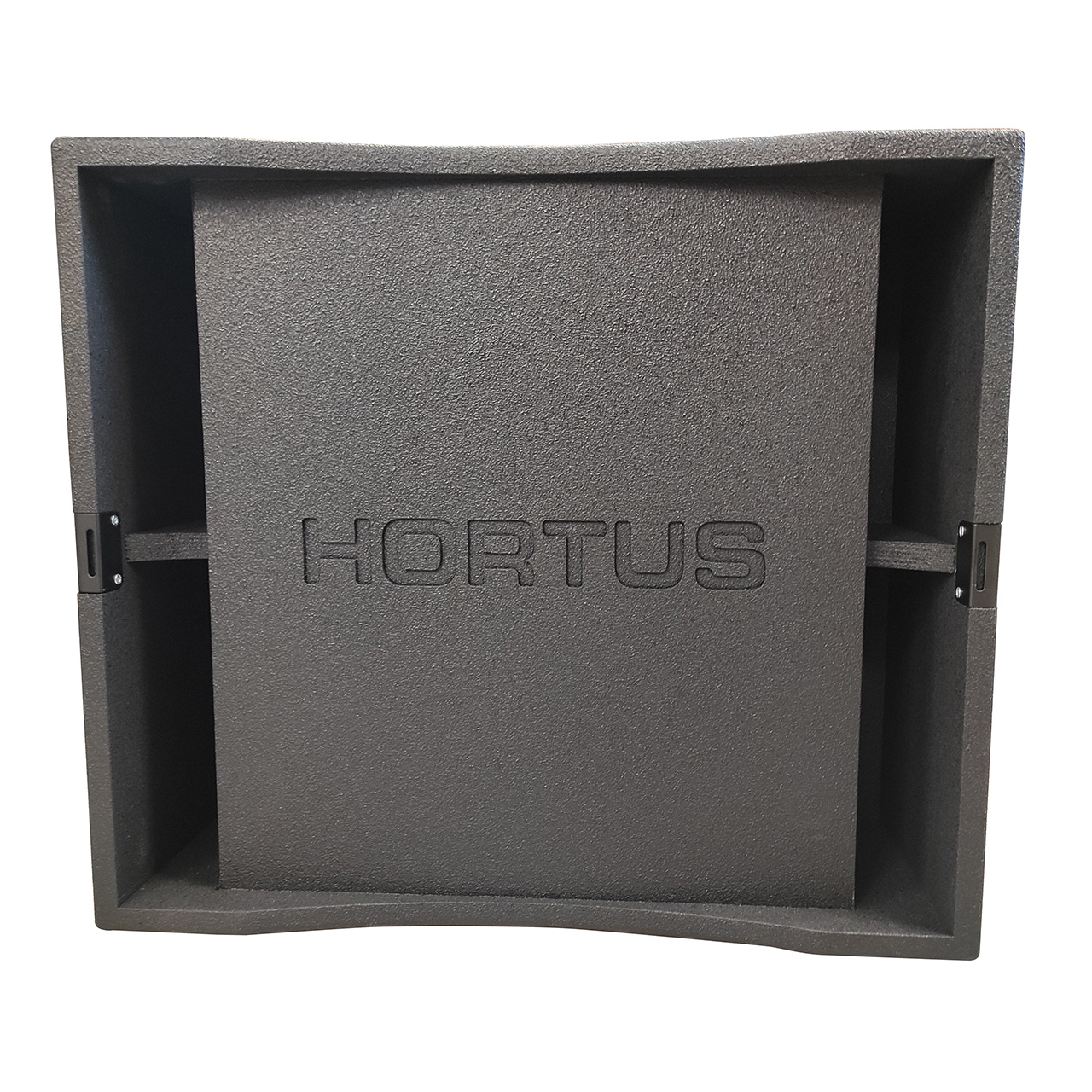

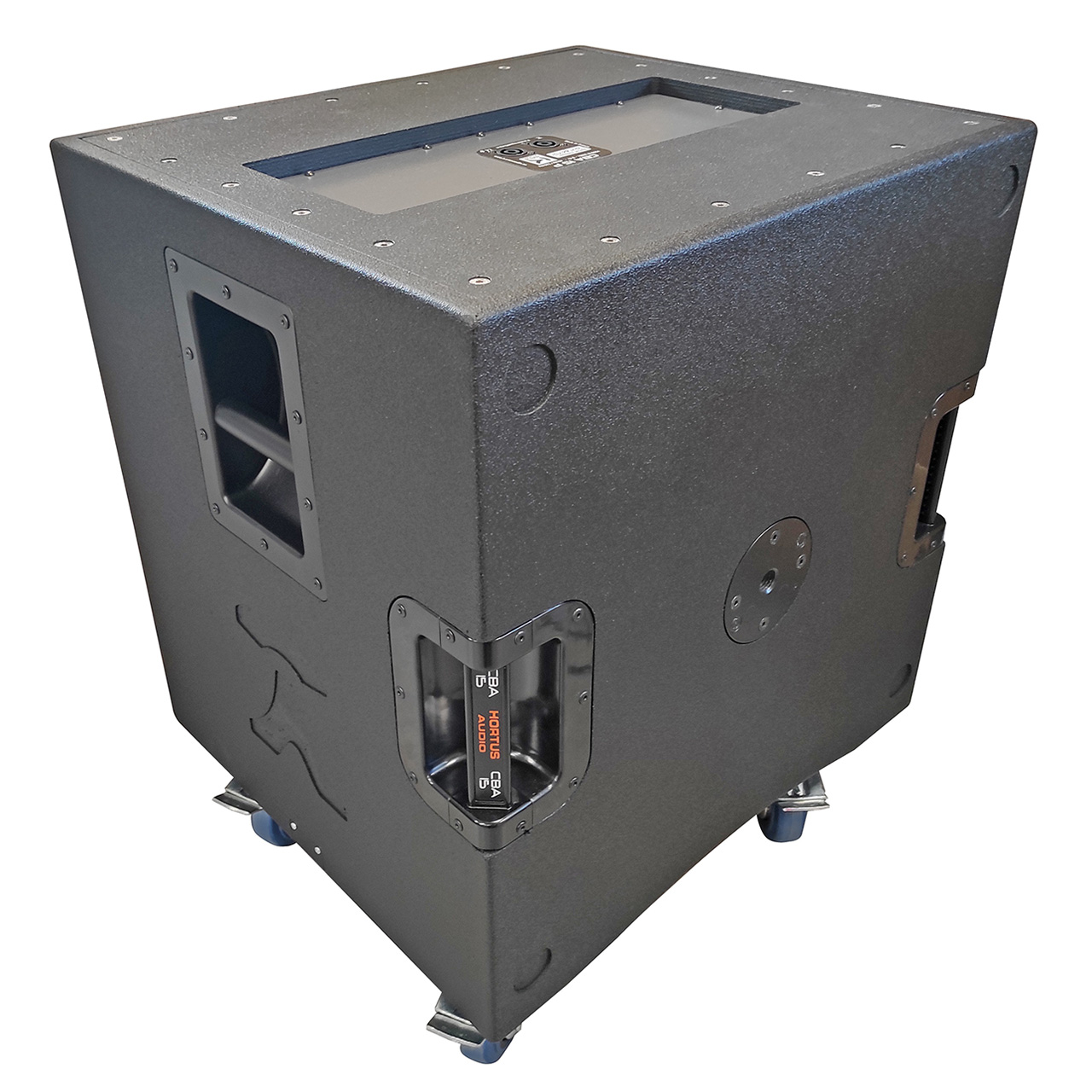

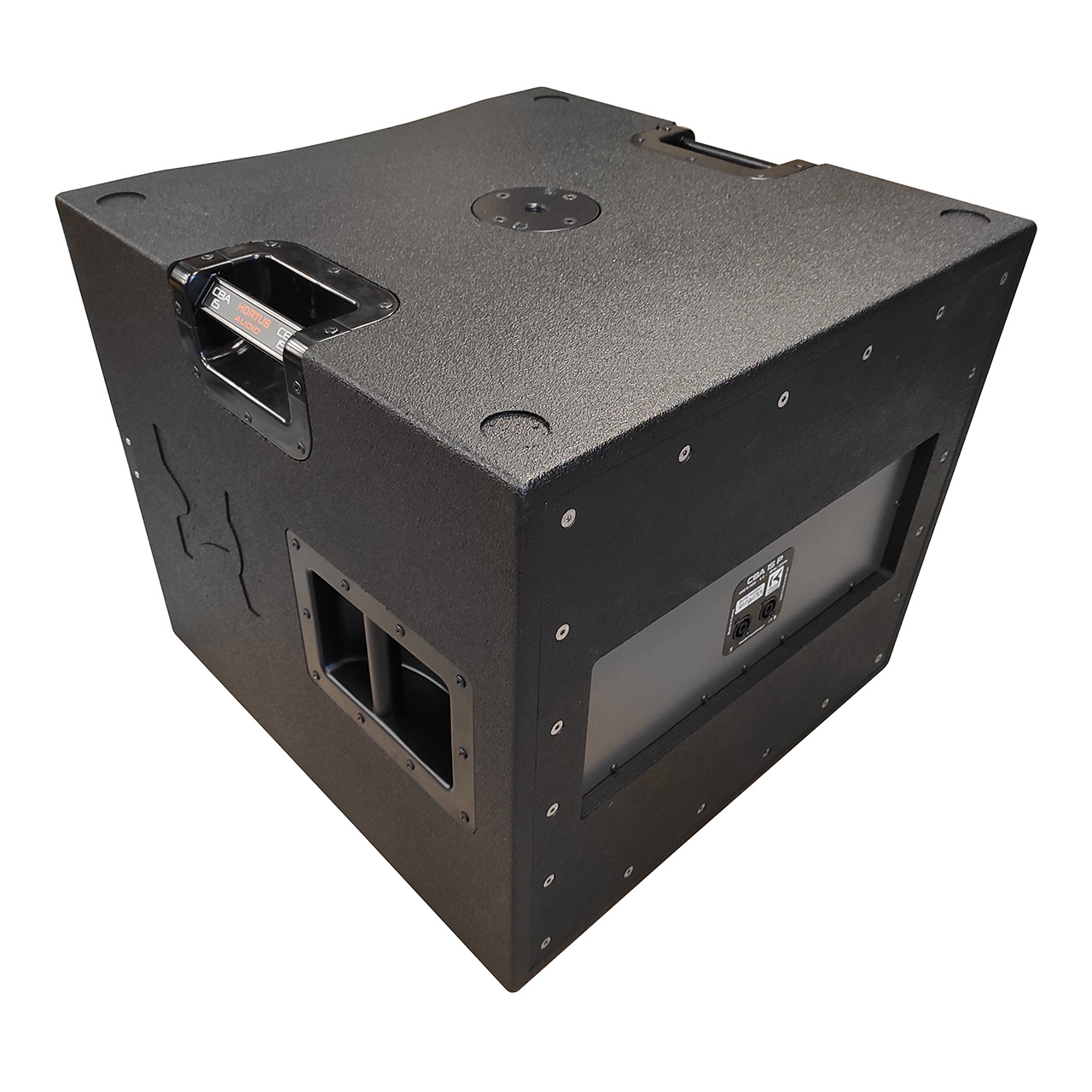

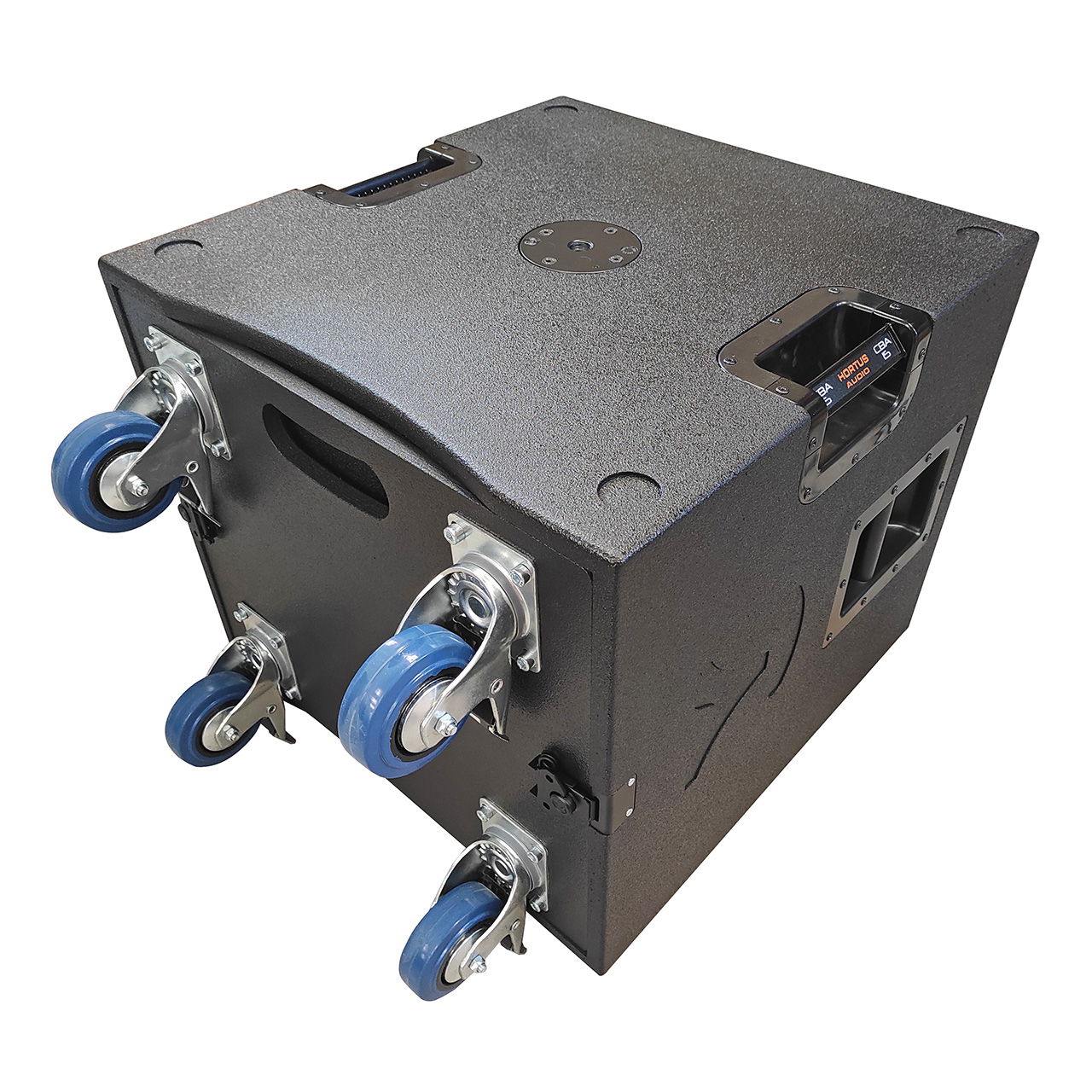

CBA15 bass cabinet



Key features

Available as a passive version as well as a stereo amplified version

Well-suited to auditoriums, conferences and small stadiums

Bandwidth: 40 Hz to 220 Hz

Amplified Versions

– Power: 2 x Powercon In/out
– 3-way Pascal Audio amplifier
– «All DSP» with ethernet & USB connections
– LCD Display & menu button for local settings
– Amplified L & R outputs on speakon 4 pins
– Amplified output (Speakon) for slave passive bass cabinet (Spk 4 pins)



Related applications

Specifications

LF: 1 x 15” band pass 6th order enclosure
Bandwidth (-6dB): 40 Hz to 220 Hz
Directivity: 180° cardioid
Rigging: 1 socket for tube M20
- 18 mm baltic birch wood
- Dim. H507 x D580 x W570 mm


Available options
CBA15P: Passive Bass Cabinet
- 1500 W AES / 8 Ω / Speakon 4 pts
CBA15S: Stereo Version, amp. 3-ways (DSP)
- 1500 W AES + 2 x 400 W / 8 Ω

Bass: 1500W @ 8 Ohms
2500W @4 Ohms
(with second passive bass cabinet)
Stereo Out L & R:
2 x 800W @ 4 Ohms
2 x 400 W @ 8 Ohms
