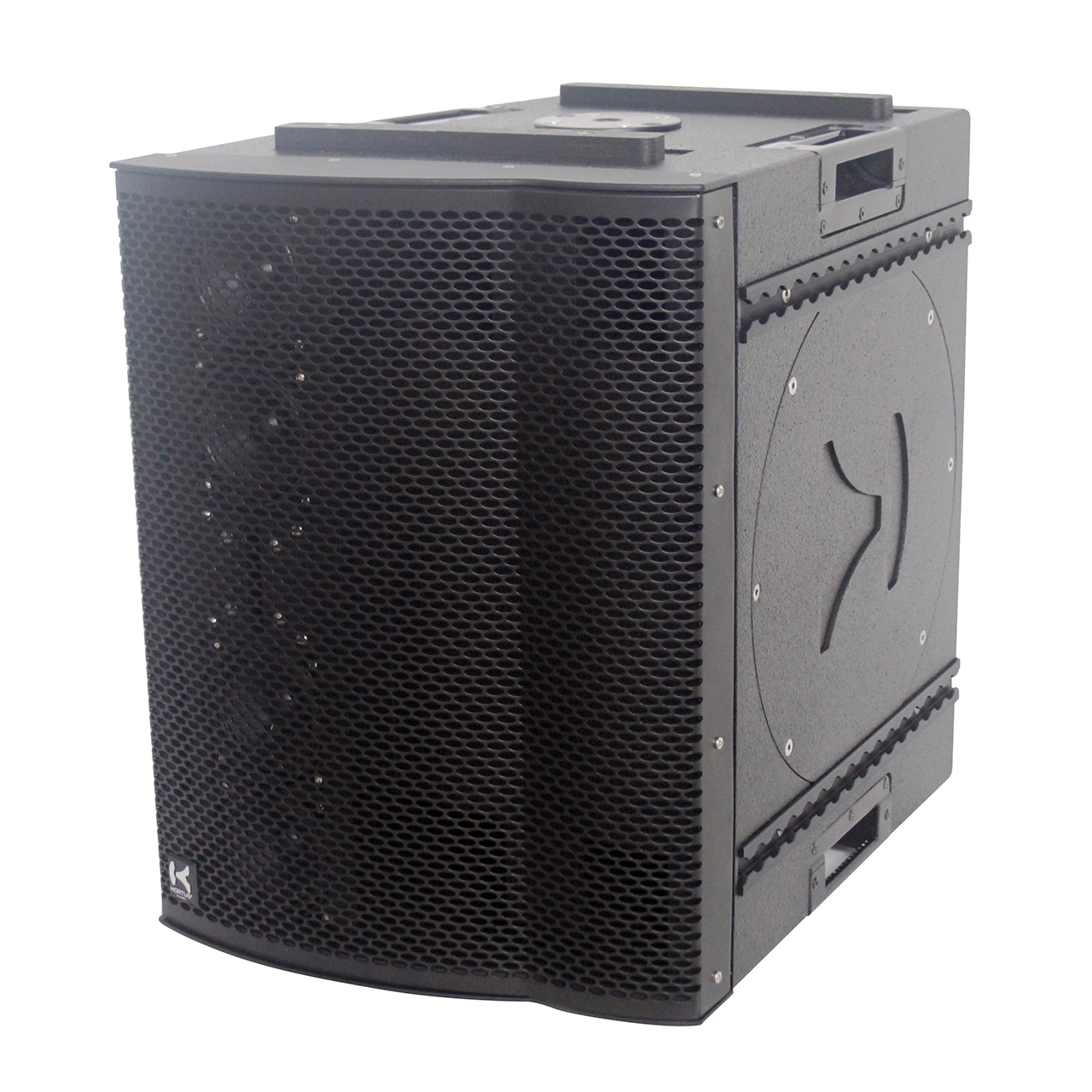

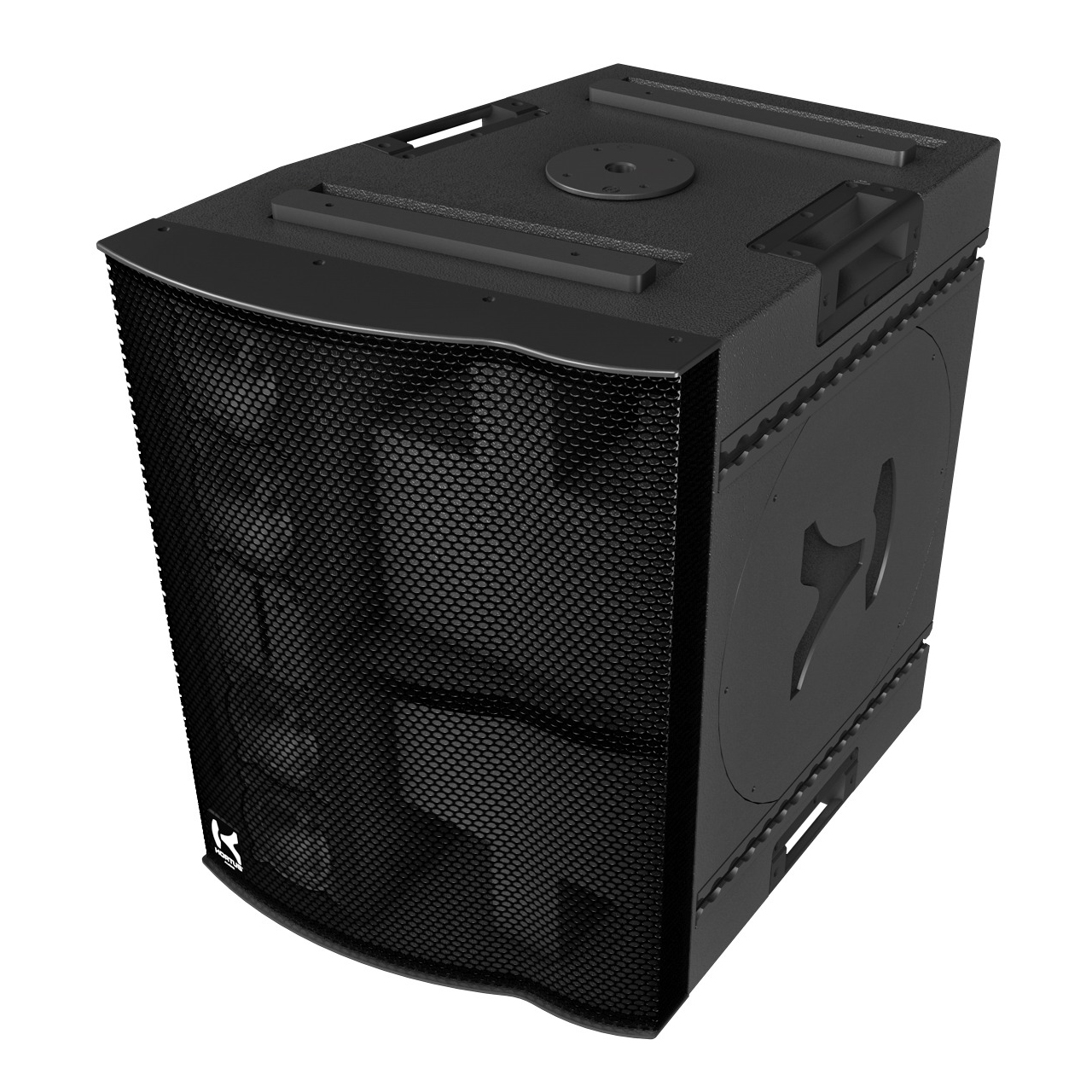

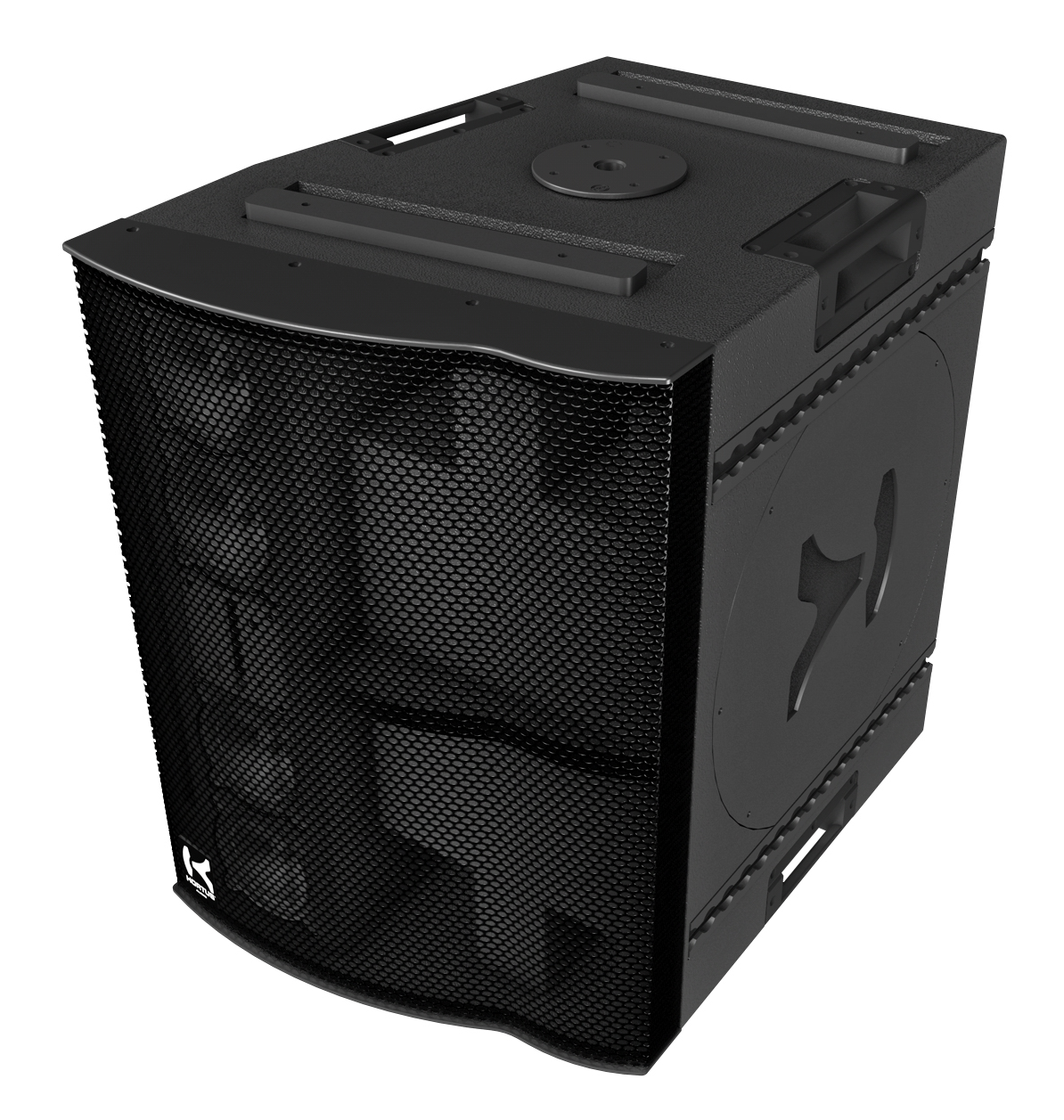

EVO-12

Full Range System – Line Source

The EVO-12 comprises two speakers. The 12′ one at 1000W has a low-frequency while the other 4′ one emanates 250W at a high-frequency. The active version has a built-in digital processing signal (DSP) that cuts across two integrated 4 ohm modules.



 Key features

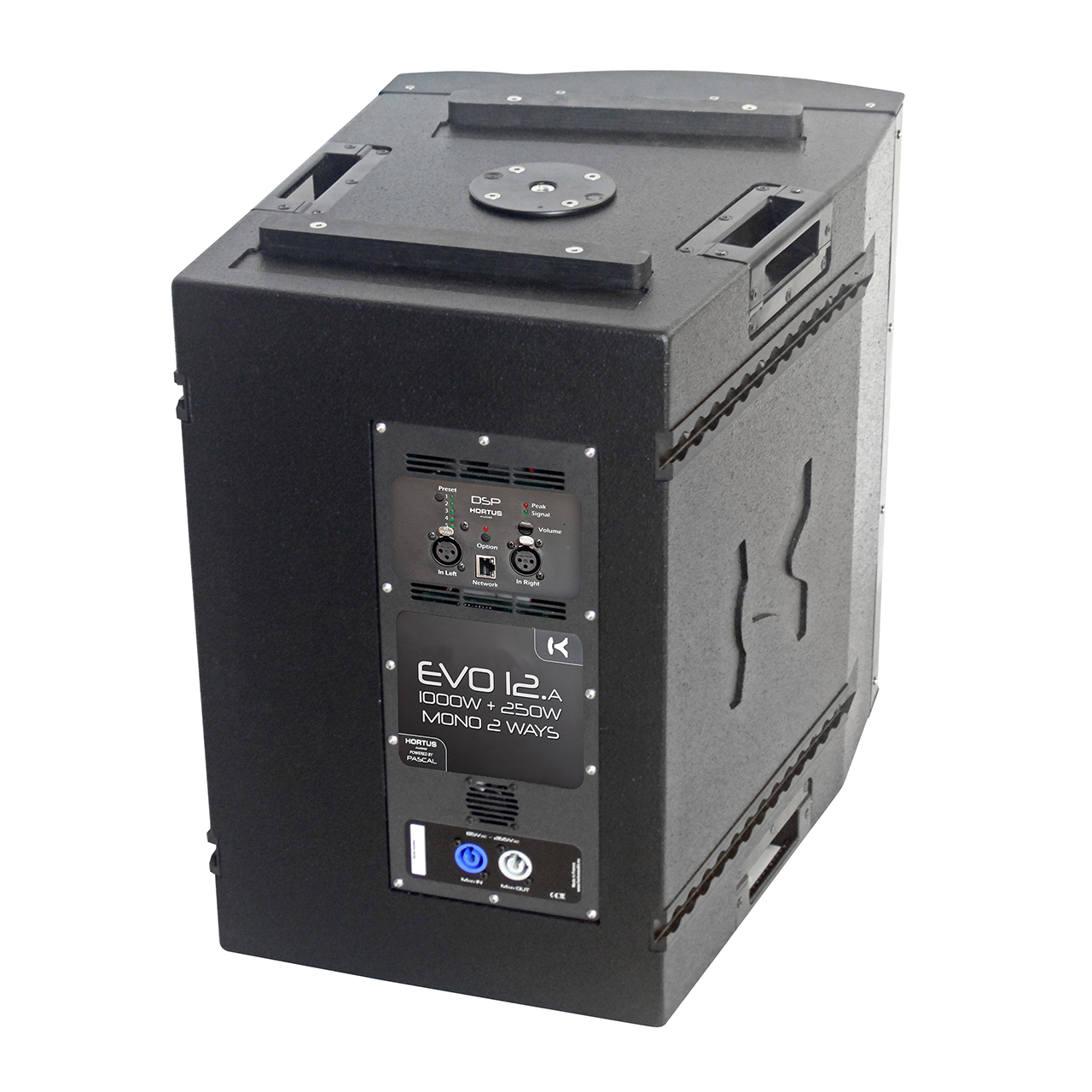

Available as a passive full range system or as an active version with built-in DSP

Can be hung up on the wall or placed on the ground

Aerodeck type rails + transport handles

Active
Passive
Clear
Related applications

Specifications

Power LF: 1000 W + HF: 250 W
Bandwidth (-6dB): 50 Hz to18 KHz
Sensibility: 90 dB / 1W @1m
SPL MAX level: 120 dB @2m
Directivity (-6dB): 90° H x 40° V
- Horizontal coupling coverage for 2 EVO12: 120°

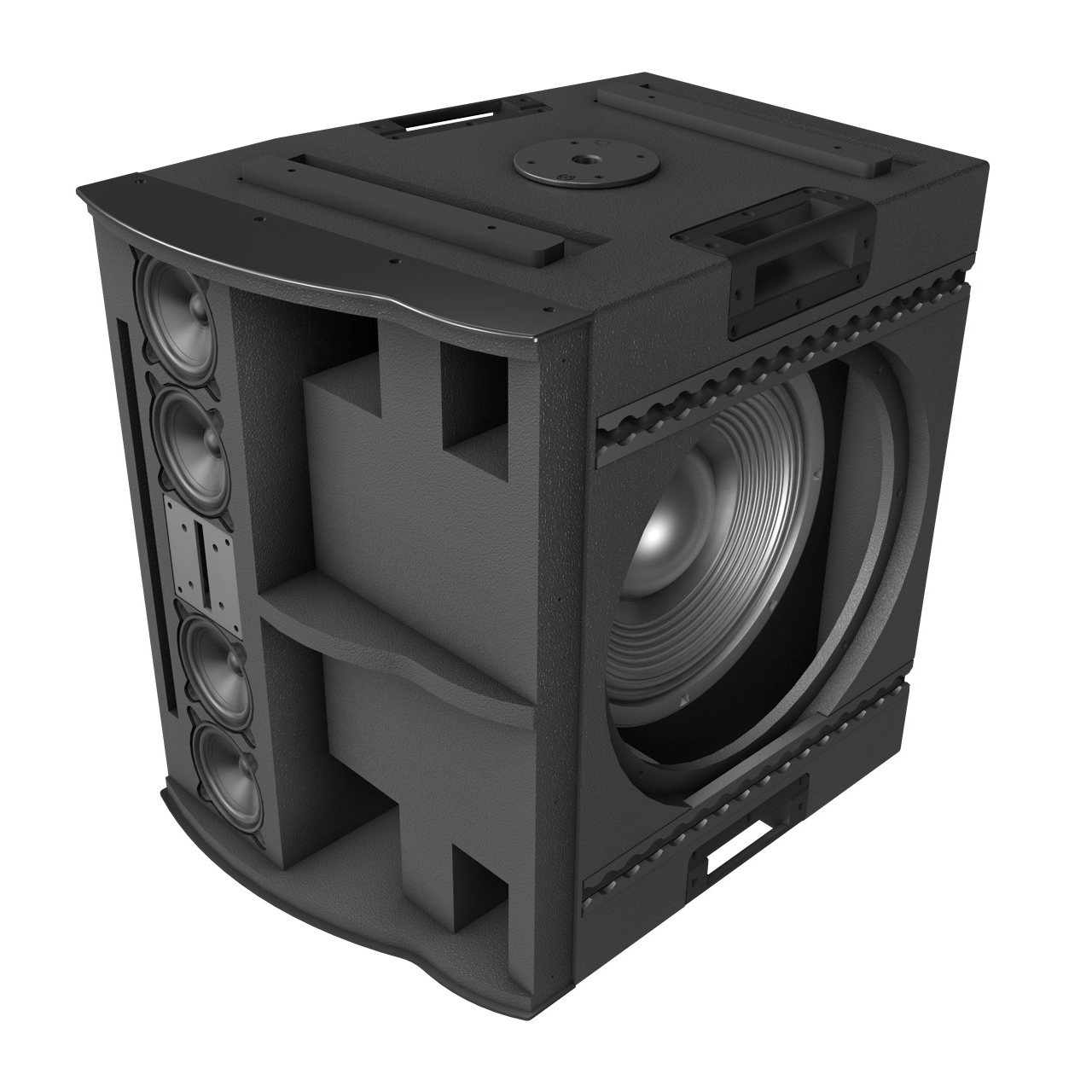

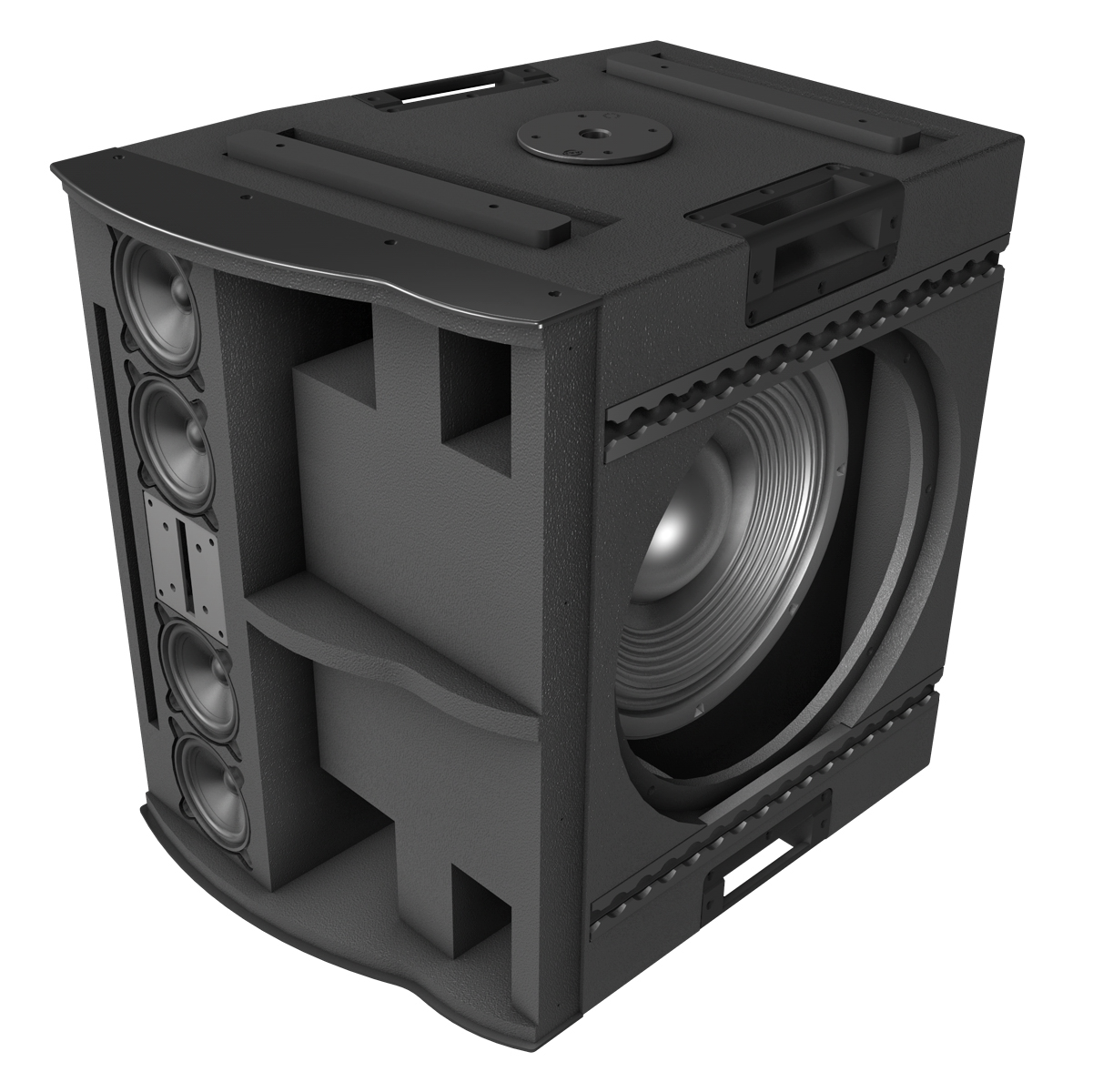

LF: 1 x12’’ band pass 6th order enclosure
MF: 4 x 4’’ vented enclosure
HF: 1 x compression 1’’ + waveguide
Rigging: 2 x interchangeable M10/20 sockets,
4 x aerodeck type rails - 4 x transport handles
- 18/30 mm baltic birch wood
- Finished polyurethane painting
- Dim. H559 x D530 x W406 mm
- Wht: 27 kg (passive) / 30 kg (active)

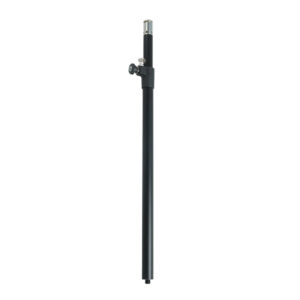

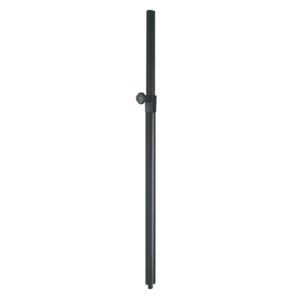

Product compatibility
