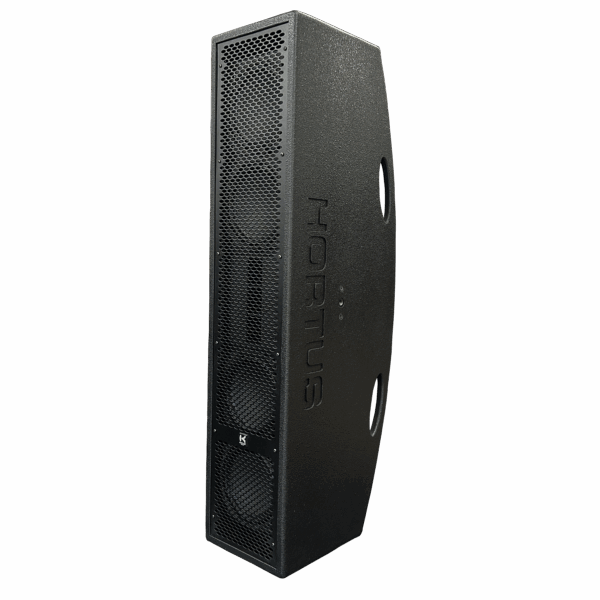

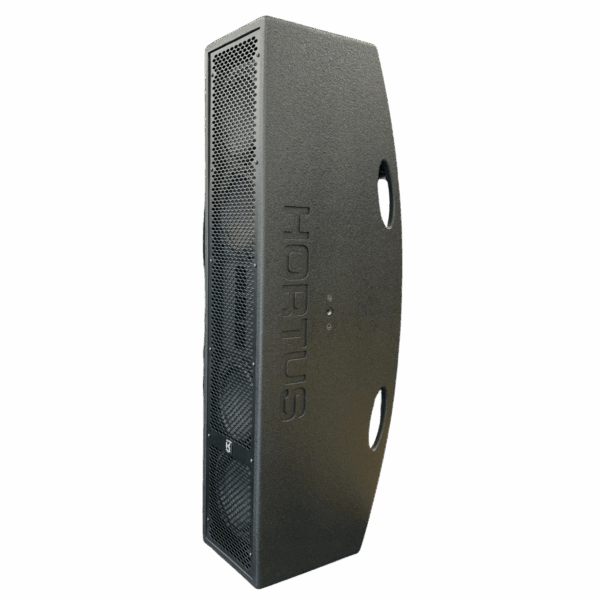

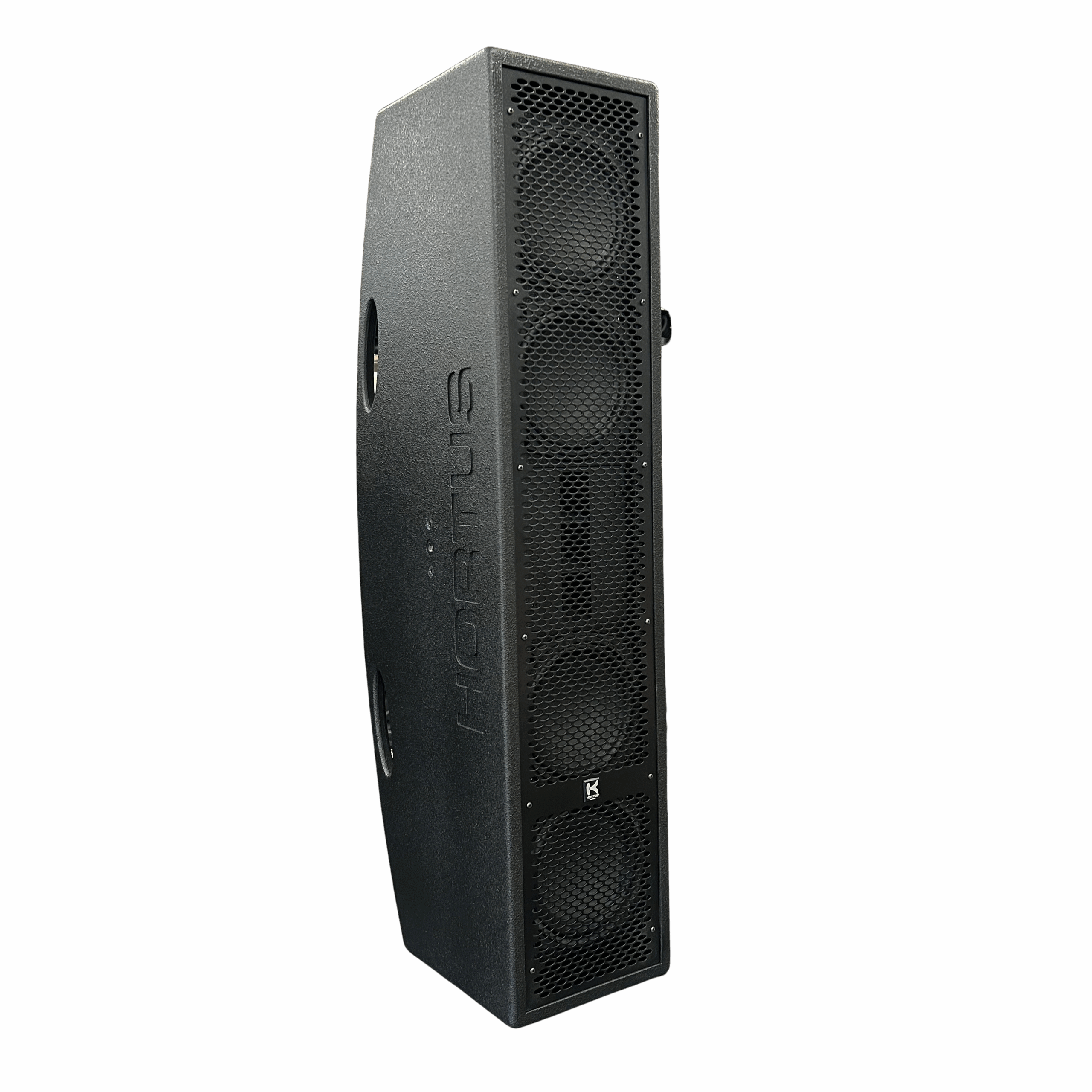

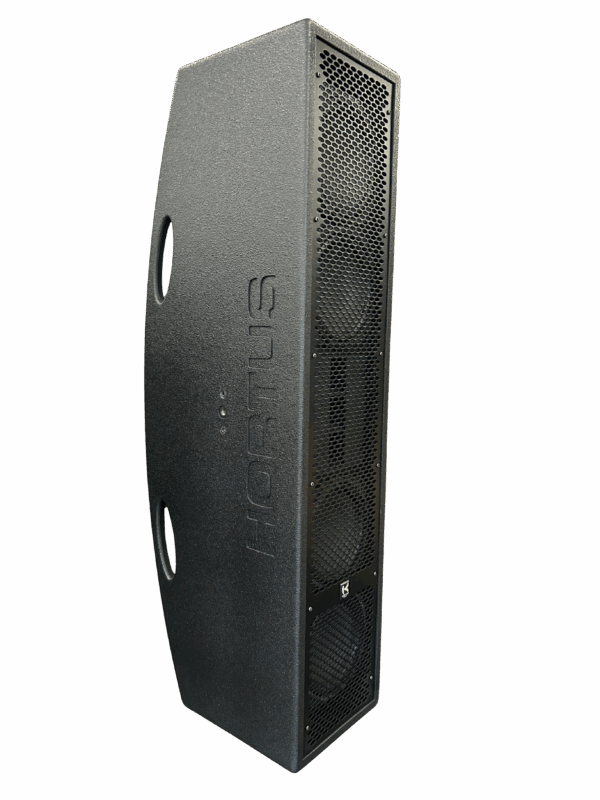

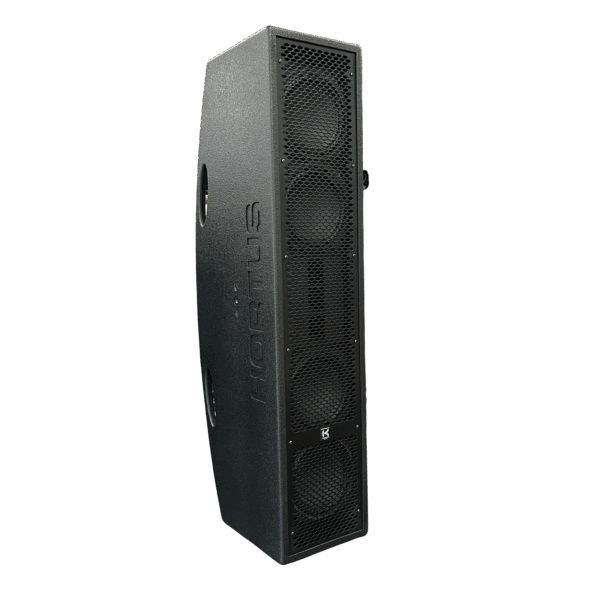

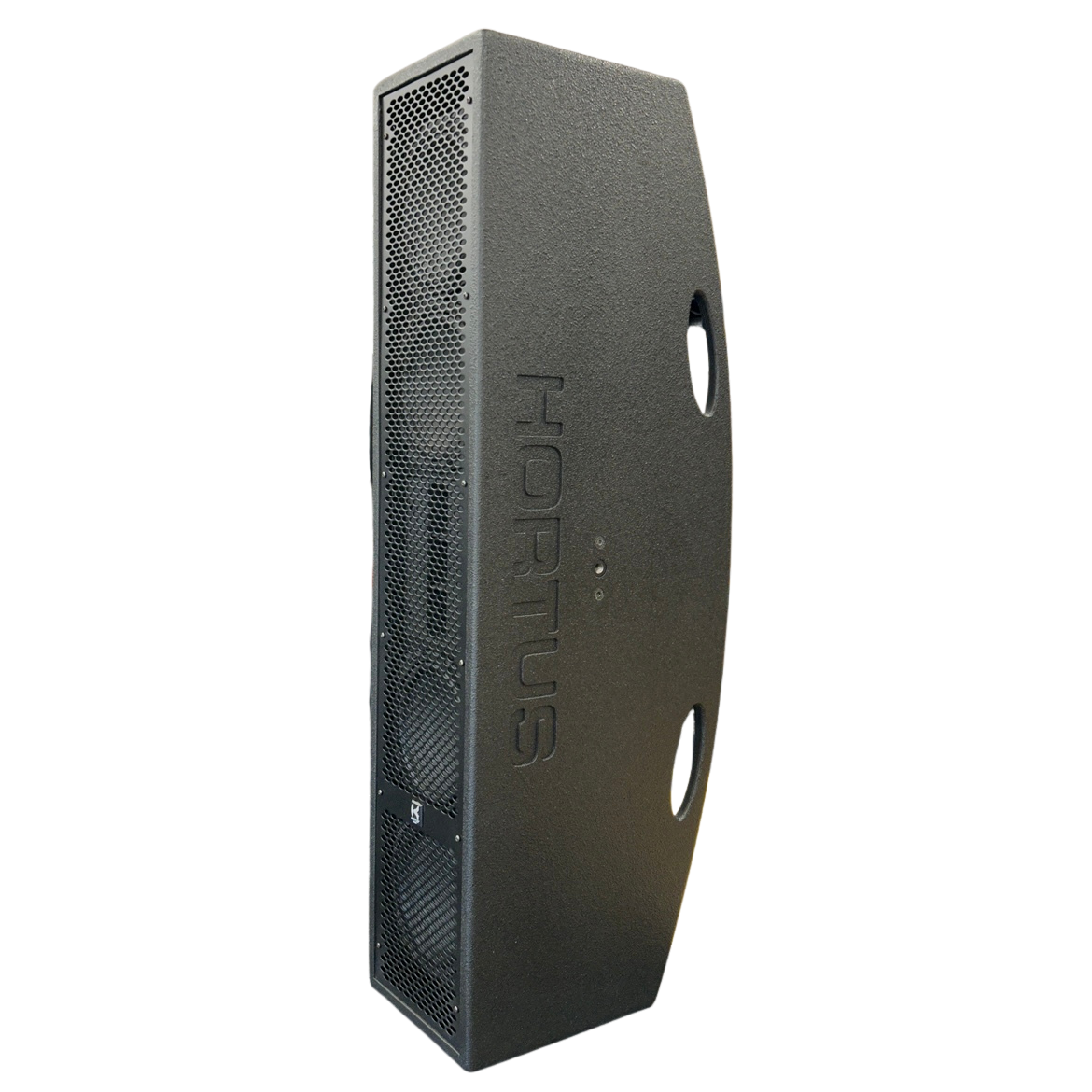

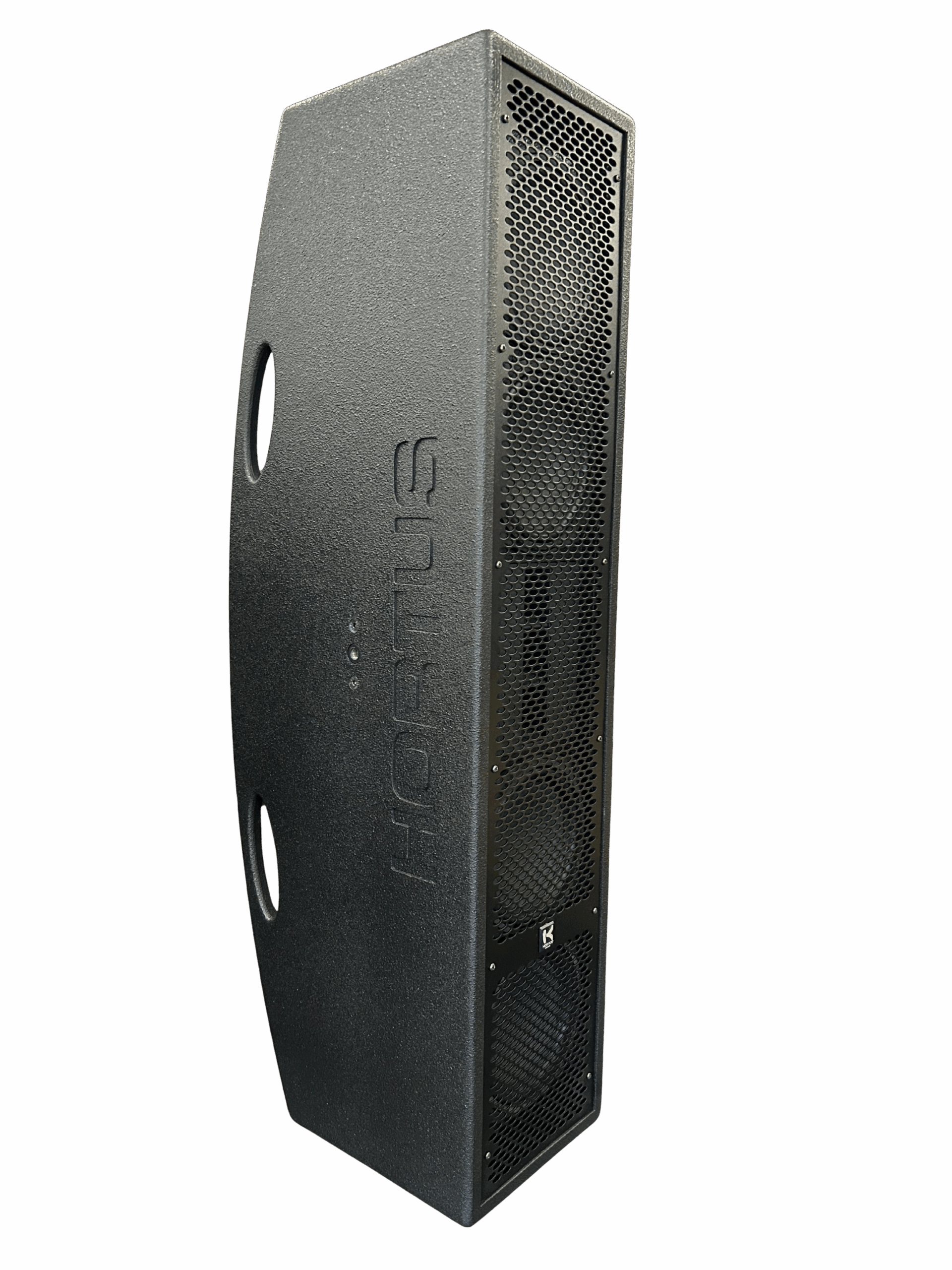

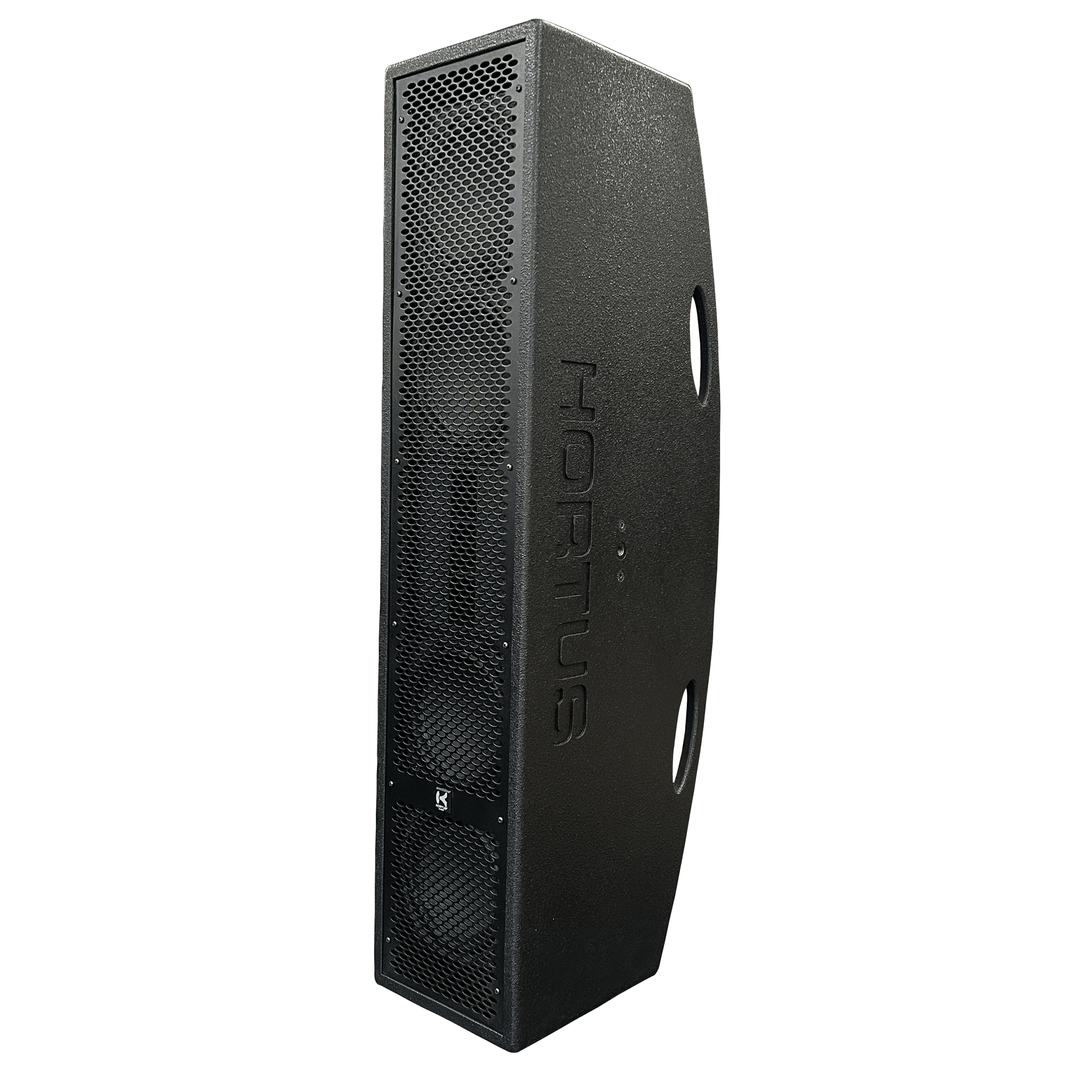

CLA416P

Frequency Response (-6 dB) 100 Hz - 20 kHz Max SPL @1m1 127 dB nominal, 139 dB peak Horizontal coverage angle1 (-6 dB) 100° Vertical coverage angle (-6 dB) 25° Recommended High-Pass Filter 80Hz BW4 Electrical specifications Nominal Impedance 8 W AES Power handling 880W Connectors In&Out: SpeakON® NL4 Transducers LF 4 × 6” Bass-reflex loaded neodyme driver HF 1 × 1.4” compression driver Physical specifications Rigging 2 x M10 threaded inserts (lateral) 4 x M6 threaded inserts (back) Handling 4 x handles machined in material Weight (net) 21kg Height × Width × Depth 925 × 205 × 320mm Cabinet 18mm baltic birch wood Finish Varnished or Finished polyurethane paint
